Kubota Mini Excavator KX018-4 Fuse Box Info
Cabin compartment fuse box location:
The cabin fuse box is located under seat.

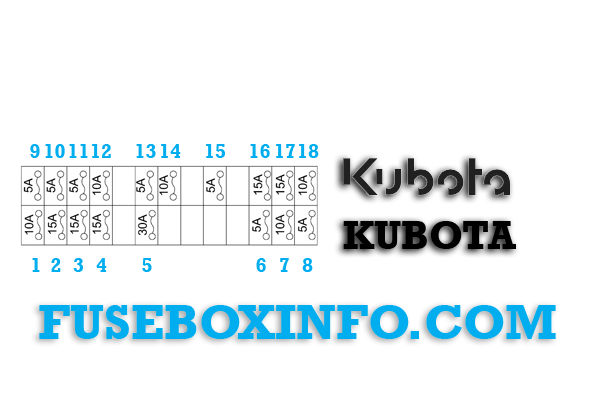

Fuse Box Diagram | Layout
Cabin compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Blow Motor |
| 2 | 15A | Radio (AC) |
| 3 | 15A | Wiper / Washer |
| 4 | 15A | Electrical Outlet |
| 5 | 30A | Engine Stop |
| 6 | 5A | ECU (+B) |
| 7 | 10A | Horn Switch |
| 8 | 5A | Meter (+B) |
| 9 | 5A | Starter |
| 10 | 5A | Lock Lever |
| 11 | 5A | Fuel Pump |
| 12 | 10A | ECU (AC) |
| 13 | 5A | Relay Source |
| 14 | 10A | Alternator |
| 15 | 5A | Room Light |
| 16 | 15A | Beacon |
| 17 | 15A | Work Light |
| 18 | 10A | Horn |
Engine compartment fuses (2 Slow blow fuses, 50A and 60A).
