Kubota Utility Vehicle RTV-X1130 Fuse Box Info

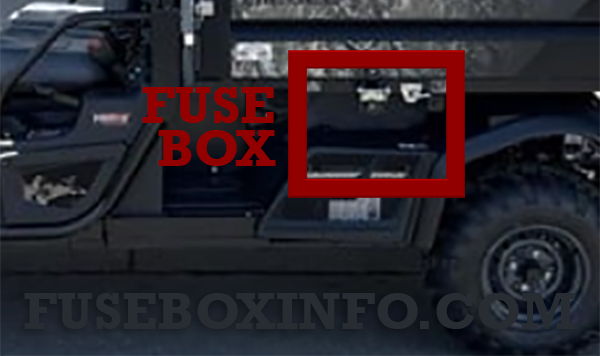

Cargo compartment fuse box location:
The cargo fuse box is located under maintenance cover under the left side of the cargo bed, above battery.

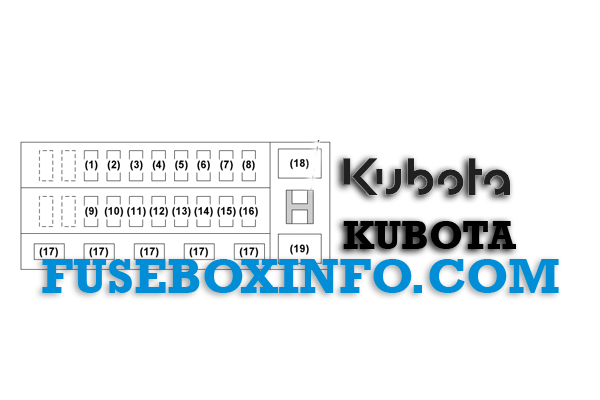

Fuse Box Diagram | Layout
Cargo compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Glow lamp |
| 2 | 5A | Starter relay |
| 3 | 5A | Radiator fan relay |
| 4 | 10A | AUX / B, Buzzer relay (option lamp) |
| 5 | 5A | Solenoid relay |
| 6 | 5A | Meter (IGN) |
| 7 | - | - |
| 8 | 15A | Head light blinker (F) |
| 9 | 15A | Blinker (R) brake lamp |
| 10 | 30A | Radiator fan |
| 11 | - | - |
| 12 | 10A | DC output |
| 13 | 10A | Horn |
| 14 | - | - |
| 15 | 30A | Solenoid |
| 16 | 5A | Meter (BAT) |
| 17 | 30,20,15,10,5A | Spare |
| 18 | 60A | Key switch (Slow blow fuse) |
| 19 | 60A | Alternator (Slow blow fuse) |
