Kubota Track Loader SVL65-2 Fuse Box Info

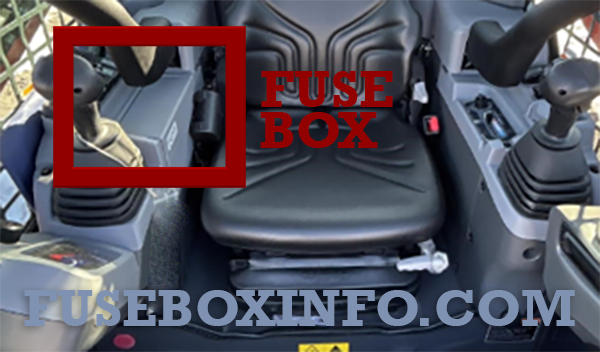

Cabin compartment fuse box location:

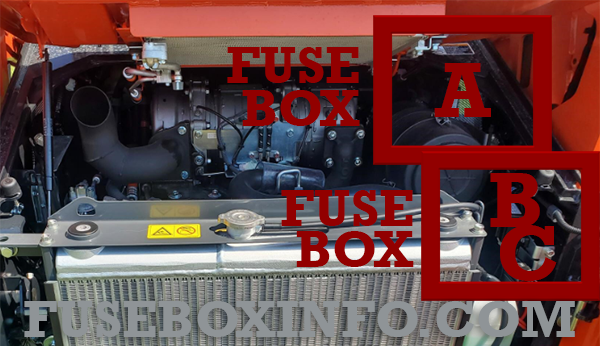

Engine compartment fuse box location:
Fuse Box Diagram | Layout

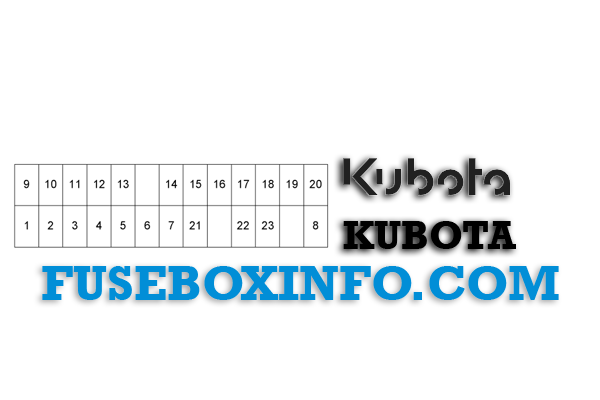

Cabin compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Room light / Strobe light |
| 2 | 20A | Front work lights |
| 3 | 15A | Rear work lights |
| 4 | 5A | Horn |
| 5 | 5A | Instrument panel (+B) |
| 6 | 15A | AUX electrical power |
| 7 | 5A | ECU (+B) |
| 8 | 5A | Starter |
| 9 | 5A | Indicator (Air cleaner) |
| 10 | 5A | Switch (AC) |
| 11 | 20A | ECU (AC) |
| 12 | 5A | Fuel pump |
| 13 | 5A | Control element |
| 14 | 20A | Arm harness |
| 15 | 15A | Electrical outlet |
| 16 | - | Attachments-1 |
| 17 | 20A | Attachments-2 |
| 18 | 20A | Air ride seat |
| 19 | 5A | Backup alarm |
| 20 | 5A | Engine ECU(AC) |
| Closed cab model | ||
| 21 | 20A | Blower motor |
| 22 | 15A | Wiper |
| 23 | 10A | Compressor clutch |

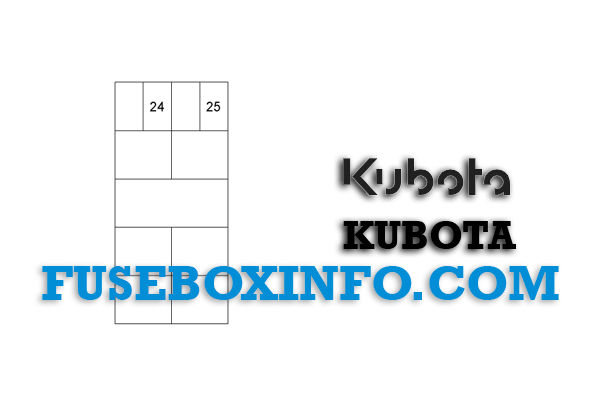

Engine compartment fuse box A:
| Fuse/Relay N° | Rating | Functions |
| 24 | 20A | CCV heater |
| 25 | 10A | Engine elements |
Engine compartment fuse box B:
| Fuse/Relay N° | Rating | Functions |
| Open cab model | ||
| A | 30A | Engine |
| B | 60A | Main |
| C | 30A | CCV heater |
| D | - | - |
| Closed cab model | ||
| A | 30A | Engine |
| B | 60A | Main |
| C | 50A | Closed cab |
| D | 20A | Condenser motor |
Engine compartment fuse box C:
| Fuse/Relay N° | Rating | Functions |
| A | 60A | Glow plugs |
| B | - | - |
| C | 100A | Alternator |
