Kubota Excavator KX040-4 Fuse Box Info

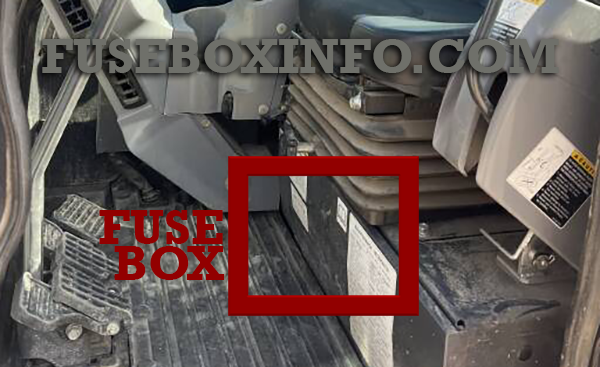

Cabin compartment fuse box location:
The cabin fuse box is located under seat.
Fuse Box Diagram | Layout
Cabin compartment fuse box (Canopy):
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | ECU (POWER) |
| 2 | 15A | Beacon |
| 3 | 5A | Room Light |
| 4 | 10A | Meter (+B) |
| 5 | 5A | Horn Switch |
| 6 | 10A | Horn |
| 7 | 5A | ECU (+B) |
| 8 | 20A | Cab Work Light |
| 9 | 15A | Front Work Light |
| 10 | 5A | Starter |
| 11 | 5A | Fuel Pump |
| 12 | 5A | Relay |
| 13 | 5A | Lever Lock |
| 14 | 10A | Alternator |
| 15 | 5A | ECU (AC) |
| 16 | 15A | Electrical Outlet |
Cabin compartment fuse box (Air-conditioner type):
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Blower Moter |
| 2 | 5A | A/C Controller |
| 3 | 30A | ECU(POWER) |
| 4 | 15A | Beacon |
| 5 | 5A | Room Light |
| 6 | 10A | Meter (+B) |
| 7 | 5A | Horn Switch |
| 8 | 10A | Horn |
| 9 | 5A | ECU (+B) |
| 10 | 20A | Cab Work Light |
| 11 | 15A | Front Work Light |
| 12 | 5A | Starter |
| 13 | 5A | Fuel Pump |
| 14 | 5A | Relay |
| 15 | 5A | Lever Lock |
| 16 | 10A | Alternator |
| 17 | 5A | ECU (AC) |
| 18 | 15A | Electrical Outlet |
| 19 | 10A | Compressor |
| 20 | 15A | Radio (AC) |
| 21 | 15A | Wiper / Washer |
Engine compartment fuse box (Slow blow fuses - Located above battery):
| Fuse/Relay N° | Rating | Functions |
| A | 80A | Alternator |
| B | 30A | Engine ECU |
| C | 50A | Main Power (1) |
| D | 50A | Main Power (2) |
