Kubota Utility Vehicle RTV-X Crew Fuse Box Info

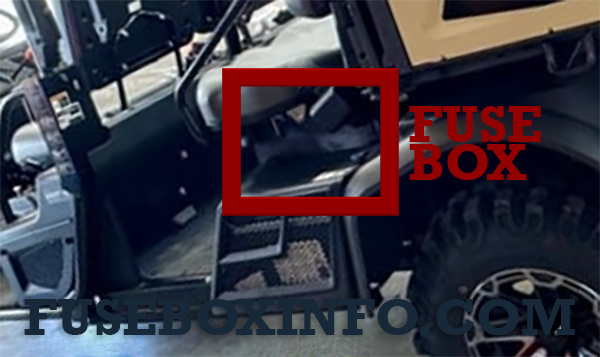

Cabin compartment fuse box location:
The cabin fuse boxes (Relay box, Fuse box 1, Fuse box 2) are located under maintenance cover, under the left side of rear seat, above battery.

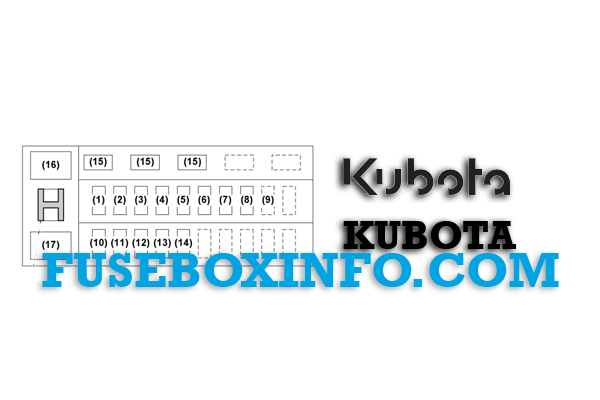

Fuse Box Diagram | Layout
Cabin compartment fuse box 1:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Meter (BAT) |
| 2 | 30A | Solenoid |
| 3 | 5A | Blinker (R) brake lamp |
| 4 | 5A | Horn |
| 5 | 30A | Radiator fan |
| 6 | 10A | Hazard switch blinker |
| 7 | 10A | Head light blinker (F) |
| 8 | 5A | Meter (IGN) |
| 9 | 5A | Solenoid relay |
| 10 | 10A | AUX / Back buzzer |
| 11 | 5A | Radiator fan relay |
| 12 | 10A | DC output |
| 13 | 5A | Glow lamp |
| 14 | 5A | Starter relay |
| 15 | 30,10,5A | Spare |
| 16 | Slow-blow fuse (60A) | Starter |
| 17 | Slow-blow fuse (60A) | Battery (+B) |
| 19 | Slow-blow fuse (60A) | Alternator (Fuse box 2) |
