Kubota Skid Steer Loader SSV65 ISO Fuse Box Info

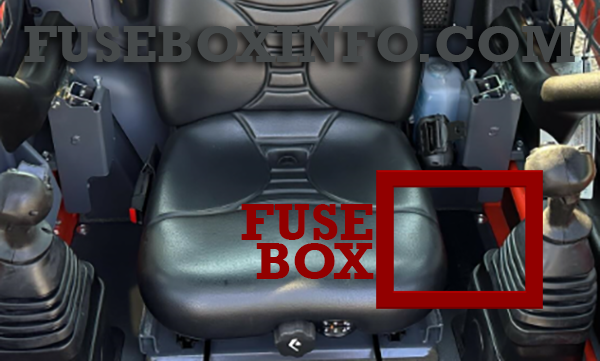

Cabin compartment fuse box location:
The cabin fuse box is located next to the seat.
Fuse Box Diagram | Layout
Cabin compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Engine elements |
| 2 | 5A | Alternator |
| 3 | 5A | Control elements |
| 4 | 5A | Fuel pump |
| 5 | 5A | CRS ECU (AC) |
| 6 | 30A | ECU main power |
| 7 | 15A | Air ride seat |
| 8 | 20A | Attachments-2 |
| 9 | 5A | Switch (starter) |
| 10 | 15A | Attachment (+B) |
| 11 | 30A | Front work lights |
| 12 | 5A | Switch (AC) |
| 13 | 5A | Indicator (Air Cleaner) |
| 14 | 5A | ECU (+B) |
| 15 | 15A | AUX electrical power |
| 16 | 5A | Meter(+B) |
| 17 | 20A | Arm harness |
| 18 | 15A | Electrical outlet |
| 19 | 20A | Attachments-1 |
| 20 | 15A | Rear work lights |
| 21 | 10A | Horn |
| 22 | - | Front work lights |
| 23 | - | Horn |
| 24 | - | Rear work lights |
| 25 | - | Starter |
| 26 | - | CRS |
| 27 | - | Glow |
| 28 | - | Electrical outlet |
| Closed cab model | ||
| 29 | 10A | Compressor |
| 30 | 30A | Blower motor |
| 31 | 15A | Wiper |
| 32 | - | Compressor |
| 33 | - | Wiper |
| 34 | - | Blower |
Engine compartment fuse box (Slow blow fuses - Located above battery) - Open cab model:
| Fuse/Relay N° | Rating | Functions |
| A | 60A | Main |
| B | 80A | Alternator |
| C | 30A | CRS |
| D | 60A | Glow CAB |
Engine compartment fuse box (Slow blow fuses - Located above battery) - Closed cab model:
| Fuse/Relay N° | Rating | Functions |
| A | 60A | Main |
| B | 100A | Alternator |
| C | 30A | CRS |
| D | 60A | Glow CAB |
