Kubota Utility Vehicle RTV-X1120D Fuse Box Info

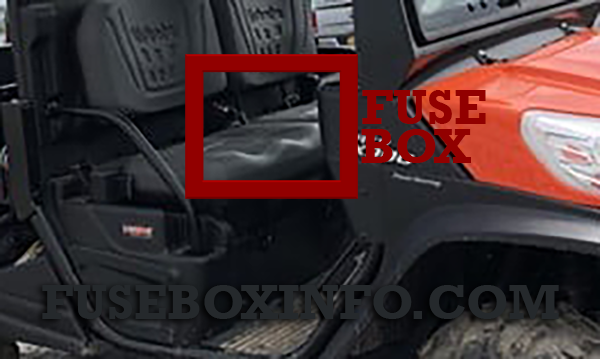

Cabin compartment fuse box location:
The cabin fuse box is located inside the cab under the seats, under the utility box and maintenance cover.
Fuse Box Diagram | Layout
Cabin compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Glow lamp |
| 2 | 5A | Starter relay |
| 3 | 10A | Radiator fan relay |
| 4 | 10A | AUX / B, Buzzer relay (OPT, LAMP) |
| 5 | 5A | Solenoid |
| 6 | 5A | Meter (IGN) |
| 7 | 15A | Beacon / Fog lamp |
| 8 | 15A | Head light blinker (F) |
| 9 | 15A | Blinker (R) brake lamp |
| 10 | 30A | Radiator fan |
| 11 | 10A | DC output |
| 12 | 20A | - |
| 13 | 10A | Horn |
| 14 | 15A | Work light |
| 15 | 30A | Solenoid |
| 16 | 5A | Meter (BAT) |
| 17 | 30,20,15,10,5A | Spare |
| 18 | 60A | Key switch |
| 19 | 60A | Alternator |
| 20 | - | Fuse puller |
