Toyota Camry 2011 Fuse Box Info

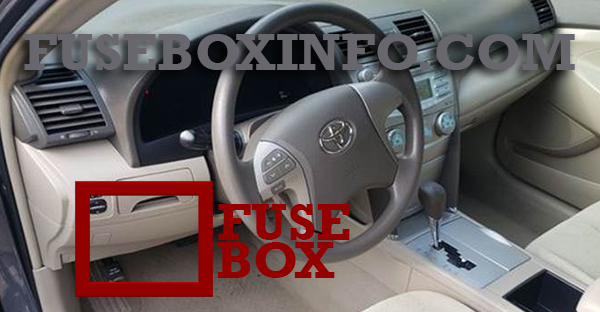

Passenger compartment fuse box location:
The fuse box is located under the instrument panel on the driver’s side.

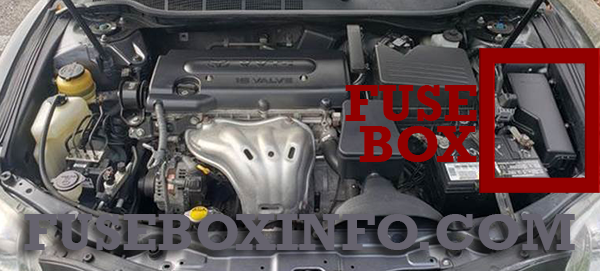

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° and Name | Rating | Functions |
| 1. RR DOOR RH | 25A | Rear right power window |
| 2. RR DOOR LH | 25A | Rear left power window |
| 3. FUEL OPN | 7.5A | No circuit |
| 4. FR FOG | 15A | Front fog lights |
| 5. OBD | 7.5A | On−board diagnosis system |
| 6. ECU−B NO.2 | 7.5A | No circuit |
| 7. STOP | 10A | High mounted stoplight, shift lock control system, multiport fuel injection system/sequential multiport fuel injection system, main body ECU, anti-lock brake system, vehicle stability control system, traction control system, brake assist system |
| 8. TI&TE | 30A | No circuit |
| 9. AM1 | 7.5A | Multiport fuel injection system/ sequential multiport fuel injection system |
| 10. A/C | 7.5A | Air conditioning system |
| 11. PWR | 25A | Power windows |
| 12. DOOR NO.2 | 25A | Main body ECU |
| 13. S/ROOF | 30A | Moon roof |
| 14. TAIL | 15A | Front side marker/parking lights, stop/tail lights, rear side marker lights, license plate lights, back-up lights, front turn signal lights, main body ECU |
| 15. PANEL | 7.5A | Navigation system, seat heaters, emergency flashers, air conditioning system, audio system, clock, glove box light, instrument panel lights, steering switches, vehicle stability control system, traction control system |
| 16. ECU IG NO.1 | 10A | Main body ECU, windshield wipers and washer, moon roof, tire pressure warning system, electric cooling fans, auto anti-glare inside rear view mirror, navigation system |
| 17. ECU IG NO.2 | 7.5A | Anti-lock brake system, vehicle stability control system, traction control system, brake assist system, shift lock control system, automatic transmission, cruise control system |
| 18. A/C NO.2 | 10A | Air conditioning system, rear window defogger |
| 19. WASH | 10A | Windshield wipers and washer |
| 20. S−HTR | 20A | Seat heaters |
| 21. GAUGE NO.1 | 10A | Emergency flashers, charging system, multiport fuel injection system/ sequential multiport fuel injection system, back-up lights |
| 22. WIP | 25A | Windshield wipers and washer |
| 23. H−LP LVL | 7.5A | No circuit |
| 24. INJ | 15A | No circuit |
| 25. IGN | 10A | Multiport fuel injection system/ sequential multiport fuel injection system, SRS airbag system, steering lock system, front passenger occupant classification system, smart key system, electronic throttle control system |
| 26. GAUGE NO.2 | 7.5A | Gages and meters, multi−information display, clock |
| 27. ECU−ACC | 7.5A | Clock, main body ECU, shift lock control system, outside rear view mirror, smart key system |
| 28. CIG | 20A | No circuit |
| 29. PWR OUTLET | 20A | Power outlet |
| 30. RADIO NO.2 | 7.5A | Audio system, navigation system |
| 31. MIR HTR | 10A | Outside rear view mirror defoggers |
| 32. POWER | 30A | Power windows |
| 33. P/SEAT | 30A | Power seats |
Engine compartment fuse box (2.5 L 4-cylinder (2AR-FE) engine):
| Fuse/Relay N° and Name | Rating | Functions |
| 1. SPARE | 30A | Spare fuse |
| 2. SPARE | 15A | Spare fuse |
| 3. SPARE | 10A | Spare fuse |
| 4. MSB | 30A | No circuit |
| 5. RDI FAN | 40A | Electric cooling fans |
| 6. CDS FAN | 40A | Electric cooling fans |
| 7. H-LP CLN | 30A | No circuit |
| 8. RR PWR SEAT | 30A | No circuit |
| 9. RR DEF | 50A | Rear window defogger, MIR HTR |
| 10. ABS NO.2 | 30A | Anti-lock brake system, vehicle stability control system, traction control system, brake assist system |
| 11. ABS NO.1 | 50A | Anti-lock brake system, vehicle stability control system, traction control system, brake assist system |
| 12. HTR | 50A | Air conditioning system |
| 13. FR DEF | 15A | No circuit |
| 14. RR FOG | 10A | No circuit |
| 15. ST/AM2 | 30A | Starting system, GAUGE NO.2, IGN, INJ |
| 16. ALT | 120A | RR FOG, FR DEF, HTR, ABS NO.1, ABS NO.2, RR DEF, RR PWR SEAT, H-LP CLN, CDS FAN, RDI FAN, MSB, TAIL, PANEL, FR FOG, CIG, RADIO No.2, ECU-ACC, PWR OUTLET, GAUGE No.1, ECU IG No.1, ECU IG No.2, H-LP LVL, WASH, A/C No.2, S-HTR, WIP, P/SEAT, DOOR No.2, POWER, RR DOOR LH, RR DOOR RH, ECU-B No.2, OBD, FUEL OPN, PWR, STOP, S/ROOF, TI&TE, A/C, AM1 |
| 17. STR LOCK | 20A | Steering lock system |
| 18. IG2 | 20A | Multiport fuel injection system/ sequential multiport fuel injection system, starting system, GAUGE NO.2, IGN, INJ |
| 19. HAZ | 15A | Turn signal lights, gauge and meters |
| 20. ETCS | 10A | Multiport fuel injection system/ sequential multiport fuel injection system |
| 21. EFI2 | 30A | Multiport fuel injection system/ sequential multiport fuel injection system |
| 22. MAYDAY/TEL | 7.5A | No circuit |
| 23. ALT-S | 7.5A | Charging system |
| 24. AM2 | 7.5A | Main body ECU |
| 25. EFI MAIN | 30A | Multiport fuel injection system/ sequential multiport fuel injection system, EFI NO.2, EFI NO.3, main body ECU |
| 26. AMP | 25A | Audio system |
| 27. DOOR NO.1 | 25A | Main body ECU |
| 28. RADIO NO.1 | 15A | Audio system, navigation system |
| 29. ECU-B NO.1 | 10A | Wireless remote control system, front passenger occupant classification system, main body ECU |
| 30. DOME | 10A | Gauges and meters, trunk light, engine switch light, door courtesy lights, interior light, personal lights, clock, smart key system |
| 31. H-LP(LH) | 15A | Left-hand headlight (high beam) |
| 32. H-LP(RH) | 15A | Right-hand headlight (high beam) |
| 33. H-LP(LL) | 15A | Left-hand headlight (low beam) |
| 34. H-LP(RL) | 15A | Right-hand headlight (low beam) |
| 35. HORN | 10A | Horns |
| 36. EFI NO.1 | 10A | Smart key system, multiport fuel injection system/sequential multiport fuel injection system, main body ECU |
| 37. MPX-B | 10A | Gauges and meters |
| 38. A/F | 20A | No circuit |
| 39. S-HORN | 7.5A | Horns |
| 40. EFI NO.2 | 15A | Multiport fuel injection system/ sequential multiport fuel injection system |
| 41. EFI NO.3 | 10A | Multiport fuel injection system/ sequential multiport fuel injection system |
Engine compartment fuse box (3.5 L V6 (2GR-FE) engine):
| Fuse/Relay N° and Name | Rating | Functions |
| 1. SPARE | 30A | Spare fuse |
| 2. SPARE | 15A | Spare fuse |
| 3. SPARE | 10A | Spare fuse |
| 4. MSB | 30A | No circuit |
| 5. H-LP CLN | 30A | No circuit |
| 6. RR PWR SEAT | 30A | No circuit |
| 7. RR DEF | 50A | Rear window defogger, MIR HTR |
| 8. ABS NO.2 | 30A | Anti-lock brake system, vehicle stability control system, traction control system, brake assist system |
| 9. FAN MAIN | 50A | Electric cooling fans |
| 10. ABS NO.1 | 50A | Anti-lock brake system, vehicle stability control system, traction control system, brake assist syste |
| 11. HTR | 50A | Air conditioning system |
| 12. RR FOG | 10A | No circuit |
| 13. ST/AM2 | 30A | Starting system |
| 14. ALT | 120A | RR FOG, FR DEF, HTR, ABS NO.1, FAN MAIN, ABS NO.2, RR DEF, RR PWR SEAT, H- LP CLN, CDS FAN, RDI FAN, MSB, TAIL, PANEL, FR FOG, CIG, RADIO No.2, ECU-ACC, PWR OUTLET, GAUGE No.1, ECU IG No.1, ECU IG No.2, H-LP LVL, WASH, A/C No.2, S-HTR, WIP, P/SEAT, DOOR No.2, POWER, RR DOOR LH, RR DOOR RH, ECU-B No.2, OBD, FUEL OPN, PWR, STOP, S/ROOF, TI&TE, A/C, AM1 |
| 15. STR LOCK | 20A | Steering lock system |
| 16. IG2 | 20A | Multiport fuel injection system/ sequential multiport fuel injection system, starting system, GAUGE NO.2, IGN, INJ |
| 17. HAZ | 15A | Turn signal lights, gauge and meters |
| 18. ETCS | 10A | Multiport fuel injection system/ sequential multiport fuel injection system |
| 19. E-ACM | 10A | No circuit |
| 20. MAYDAY/TEL | 7.5A | No circuit |
| 21. ALT-S | 7.5A | Charging system |
| 22. AM2 | 7.5A | Main body ECU |
| 23. EFI MAIN | 30A | Multiport fuel injection system/ sequential multiport fuel injection system, EFI NO.2, EFI NO.3 |
| 24. AMP | 25A | Audio system |
| 25. DOOR NO.1 | 25A | Main body ECU |
| 26. RADIO NO.1 | 15A | Audio system, navigation system |
| 27. ECU-B NO.1 | 10A | Wireless remote control system, front passenger occupant classification system, main body ECU |
| 28. DOME | 10A | Gauges and meters, vanity lights, trunk light, engine switch light, door courtesy lights, interior light, personal lights, clock, smart key system |
| 29. H-LP(LH) | 15A | Left-hand headlight (high beam) |
| 30. H-LP(RH) | 15A | Right-hand headlight (high beam) |
| 31. H-LP(LL) | 15A | Left-hand headlight (low beam) |
| 32. H-LP(RL) | 15A | Right-hand headlight (low beam) |
| 33. HORN | 10A | Horns |
| 34. EFI NO.1 | 10A | Smart key system, multiport fuel injection system/sequential multiport fuel injection system, main body ECU |
| 35. MPX-B | 10A | Gauges and meters |
| 36. A/F | 20A | Multiport fuel injection system/ sequential multiport fuel injection system |
| 37. S-HORN | 7.5A | Horns |
| 38. EFI NO.2 | 15A | Multiport fuel injection system/ sequential multiport fuel injection system |
| 39. EFI NO.3 | 10A | Multiport fuel injection system/ sequential multiport fuel injection system |
