Toyota Camry 2012 Fuse Box Info

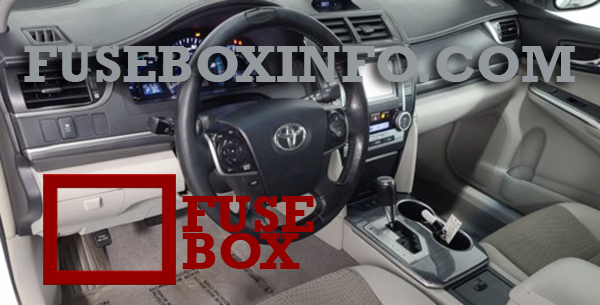

Passenger compartment fuse box location:
The fuse box is located under the instrument panel on the driver’s side.

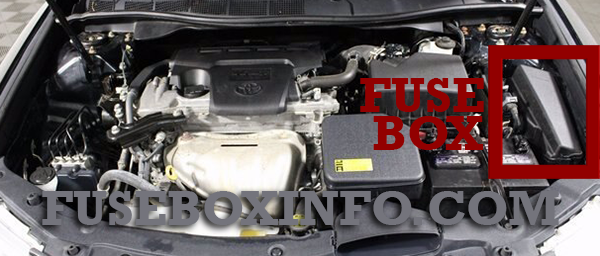

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° and Name | Rating | Functions |
| 1. ECU-IG1 NO.2 | 10A | Shift lock control system, seat heaters, smart key system, tire pressure warning system, wireless remote control, multiplex communication system, audio system, navigation system, moon roof, auto anti-glare inside rear view mirror |
| 2. ECU-IG1 NO.1 | 10A | Vehicle stability control system, electric cooling fans, steering sensor, multiport fuel injection system/ sequential multiport fuel injection system, charging system, rear window defogger, outside rear view mirror defoggers, Blind Spot Monitor |
| 3. PANEL | 10A | Switch illumination, air conditioning system, shift lever light, glove box light, interior lights, personal lights, audio system, navigation system |
| 4. TAIL | 15A | Parking lights, side marker lights, tail lights, license plate lights, fog lights |
| 5. EPS-IG1 | 7.5A | Electric power steering |
| 6. ECU-IG1 NO.3 | 7.5A | Blind Spot Monitor |
| 7. S/HTR&FAN F/L | 10A | Seat heaters |
| 8. H-LP LVL | 7.5A | No circuit |
| 9. WASHER | 10A | Windshield wipers and washer |
| 10. A/C-IG1 | 7.5A | Air conditioning system |
| 11. WIPER | 25A | Windshield wipers and washer |
| 12. BKUP LP | 7.5A | Back-up lights, multiport fuel injection system/sequential multiport fuel injection system, electronic controlled transmission, audio system, navigation system |
| 13. DOOR NO.1 | 30A | Power windows |
| 14. WIPER-S | 15A | No circuit |
| 15. P/OUTLET RR | 20A | Power outlet |
| 16. SFT LOCK-ACC | 5A | Shift lock control system |
| 17. DOOR R/R | 20A | Rear right-hand power windows |
| 18. DOOR R/L | 20A | Rear left-hand power windows |
| 19. OBD | 10A | On-Board diagnosis system |
| 20. ECU-B NO.2 | 10A | Smart key system, tire pressure warning system |
| 21. DOOR NO.2 | 20A | Power windows |
| 22. AM1 | 7.5A | Multiport fuel injection system/ sequential multiport fuel injection system, starter system |
| 23. STOP | 7.5A | Tail lights, multiport fuel injection system/sequential multiport fuel injection system, vehicle stability control system, anti-lock brake system, electronic controlled transmission, high mounted stoplight, smart key system, shift lock control system |
| 24. P/SEAT RR | 30A | No circuit |
| 25. A/C-B | 7.5A | Air conditioning system |
| 26. S/ROOF | 10A | Moon roof |
| 27. P/SEAT FR | 30A | Power seats |
| 28. PSB | 30A | No circuit |
| 29. D/L-AM1 | 20A | Multiplex communication system, power door lock, trunk opener switch |
| 30. TI&TE | 20A | No circuit |
| 31. A/B | 10A | Front passenger occupant classification system, SRS airbag system |
| 32. ECU-IG2 NO.1 | 7.5A | Multiport fuel injection system/ sequential multiport fuel injection system |
| 33. ECU-IG2 NO.2 | 7.5A | Smart key system, Blind Spot Monitor |
| 34. CIG&P/ OUTLET | 15A | Power outlet |
| 35. ECU-ACC | 7.5A | Clock, outside rear view mirrors, multiplex communication system, audio system, navigation system |
| 36. S/HTR&FAN F/ R | 10A | Seat heaters |
| 37. S/HTR RR | 20A | No circuit |
Engine compartment fuse box:
| Fuse/Relay N° and Name | Rating | Functions |
| 1. METER-IG2 | 5A | Gauge and meters |
| 2. FAN*1 | 50A | Electric cooling fans |
| 3. H-LP CLN | 30A | No circuit |
| 4. HTR | 50A | Air conditioning system |
| 5. ALT | 120A | Charging system |
| 6. ABS NO.2 | 30A | Vehicle stability control system |
| 7. ST/AM2 | 30A | Starter system, ECU-IG2 NO.1, A/B, ECU-IG2 NO.2 |
| 8. H-LP-MAIN | 30A | H-LP LH-LO, H-LP RH-LO, MNL H-LP LVL, headlights (low beam) |
| 9. ABS NO.1 | 50A | Vehicle stability control system |
| 10. EPS | 80A | Electric power steering |
| 11. S-HORN | 7.5A | S-HORN |
| 12. HORN | 10A | Horns |
| 13. EFI NO.2 | 15A | Multiport fuel injection system/ sequential multiport fuel injection system, electronic controlled transmission |
| 14. EFI NO.3 |
7.5A*2 10A*1 |
Multiport fuel injection system/ sequential multiport fuel injection system |
| 15. INJ | 7.5A | Multiport fuel injection system/ sequential multiport fuel injection system |
| 16. ECU-IG2 NO.3 | 7.5A | Multiport fuel injection system/ sequential multiport fuel injection system, steering lock system, electronic controlled transmission |
| 17. IGN | 15A | Starter system |
| 18. D/L-AM2 | 20A | No circuit |
| 19. IG2-MAIN | 25A | IGN, INJ, METER-IG2, ECU-IG2 NO.3, A/B, ECU-IG2 NO.2, ECU-IG2 NO.1 |
| 20. ALT-S | 7.5A | Charging system |
| 21. MAYDAY | 5A | MAYDAY |
| 22. TURN&HAZ | 15A | Turn signal lights, emergency flashers, gauge and meters |
| 23. STRG LOCK | 10A | Steering lock system |
| 24. AMP | 15A | Audio system |
| 25. H-LP LH-LO |
15A*3 20A*4 |
Left-hand headlight (low beam), manual headlight leveling system |
| 26. H-LP RH-LO |
15A*3 20A*4 |
Right-hand headlight (low beam) |
| 27. MNL H-LP LVL*4 | 7.5A | Manual headlight leveling system |
| 28. EFI-MAIN NO.1 | 30A | Multiport fuel injection system/ sequential multiport fuel injection system, EFI NO.2, EFI NO.3, A/F sensor |
| 29. SMART | 5A | No circuit |
| 30. ETCS | 10A | Electronic throttle control system |
| 31. TOWING | 20A | No circuit |
| 32. EFI NO.1 | 7.5A | Multiport fuel injection system/ sequential multiport fuel injection system, electronic controlled transmission |
|
33. EFI-MAIN NO.2*2 33. A/F*1 |
20A | A/F sensor |
| 34. AM2 | 7.5A | Smart key system |
| 35. RADIO-B | 20A | Audio system, navigation system |
| 36. DOME | 7.5A | Clock, vanity lights, interior lights, personal lights, trunk light, door courtesy lights |
| 37. ECU-B NO.1 | 10A | Multiplex communication system, smart key system, gauge and meters, tire pressure warning system, wireless remote control, steering sensor, front passenger occupant classification system, Blind Spot Monitor |
| 38. SPARE | 25A | Spare fuse |
| 39. SPARE | 30A | Spare fuse |
*1: 3.5 L V6 (2GR-FE) engine
*2: 2.5 L 4-cylinder (2AR-FE) engine
*3: Vehicles with halogen headlight
*4: Vehicles with discharge headlight
