Toyota Camry 2000 Fuse Box Info

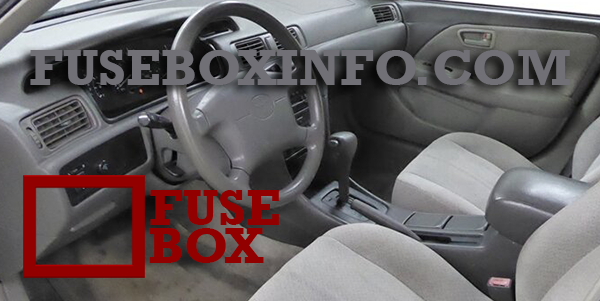

Passenger compartment fuse box location:
The fuse box is located under the instrument panel behind the coin tray on the driver’s side.

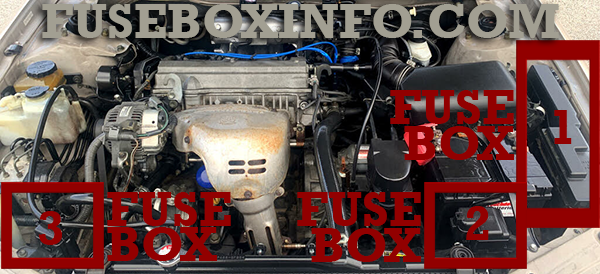

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° and Name | Rating | Functions |
| 20. SEAT−HEATER | 20A | No circuit |
| 21. HEATER | 10A | Air conditioning system, rear window defogger, starting system |
| 22. GAUGE | 10A | Gauges and meters, back−up lights, cruise control system, charging system, traction control system, daytime running light system, power windows, service reminder indicators and warning buzzers |
| 23. WIPER | 20A | Windshield wipers and washer |
| 24. MIRROR−HEATER | 10A | Outside rear view mirror defogger |
| 25. ECU−IG | 15A | Cruise control system, anti−lock brake system, power antenna, SRS airbag system, seat belt pretensioners, theft deterrent system, shift lock control system, traction control system, daytime running light system, locking with wireless remote control system, multiport fuel injection system/ sequential multiport fuel injection system |
| 26. IGN | 5A | Gauges and meters, charging system, SRS airbag system, seat belt pretensioners, multiport fuel injection system/sequential multiport fuel injection system |
| 27. STOP | 15A | Stop lights, cruise control system, high−mounted stoplight, anti−lock brake system, shift lock control system, multiport fuel injection system/ sequential multiport fuel injection system |
| 28. TAIL | 10A | Parking lights, license plate lights, tail lights, front side marker lights, daytime running light system, multiport fuel injection system/sequential multiport fuel injection system |
| 29. POWER−OUTLET | 15A | Power outlet |
| 30. OBD | 7.5A | On−board diagnosis system |
| 31. FOG | 15A | No circuit |
| 32. STARTER | 5A | Gauges and meters, Multiport fuel injection system/sequential multiport fuel injection system |
| 33. DOOR | 25A | Power door lock system, theft deterrent system |
| 34. PANEL | 7.5A | Gauge and meter, audio system, cigarette lighter, glove box light, clock, instrument panel light control, service reminder indicators, air conditioning control panel lights, ashtray light, emergency flasher, daytime running light system, rear window defogger, electronically controlled automatic transmission system |
| 35. TURN | 7.5A | Emergency flasher |
| 36. RAD−NO.2 | 7.5A | Audio system, power antenna |
| 37. CIG | 15A | Cigarette lighter, shift lock control system, power rear view mirror controls, theft deterrent system, power door lock system, SRS airbag system, seat belt pretensioners, outside rear view mirror defogger, air conditioning system |
| 42. DEF | 40A | Rear window defogger |
| 43. PWR | 30A | Power window control system, power seat, electric moon roof |
| 44. AM1 | 40A | "POWER−OUTLET", "CIG", "RAD−NO.2", "TURN", "WIPER", "ECU− IG", "GAUGE" and "HEATER" fuses |
Engine compartment fuse box (Fuse box 1):
| Fuse/Relay N° and Name | Rating | Functions |
| 1. A/C | 10A | Air conditioning system |
| 2. SPARE | 10A | Spare fuse |
| 3. SPARE | 15A | Spare fuse |
| 4. SPARE | 30A | Spare fuse |
| 5. ALT−S | 5A | Charging system |
| 6. HEAD RH(UPR) (with daytime running light system) or HEAD (RH) (without daytime running light system) |
15A | Right−hand headlight |
| 7. EFI | 15A | Multiport fuel injection system/sequential multiport fuel injection system |
| 8. HORN | 10A | Horn, theft deterrent system |
| 9. HAZARD | 10A | Emergency flasher |
| 10. AM2 | 30A | Gauge and meter, SRS airbag system, seat belt pretensioners, multiport fuel injection system/sequential multiport fuel injection system, "IGN" and "STARTER" fuses |
| 11. TEL | 5A | No circuit |
| 12. HEAD LH(UPR) (with daytime running light system) or HEAD (LH) (without daytime running light system) |
15A | Left−hand headlight |
| 13. RADIO NO.1 | 20A | Audio system |
| 14. DOME | 7.5A | Theft deterrent system, daytime running light system, clock, locking with wireless remote control system, ignition switch light, personal light, trunk light, electric moon roof lamp, interior light, vanity mirror light, door courtesy light, power door lock system |
| 15. ECU−B | 10A | Cruise control system, anti−lock brake system, SRS airbag system, seat belt pretensioners |
| 19. A/F HTR | 25A | A/F sensor |
| 38. CDS | 30A | Electric cooling fans |
| 39. RDI | 30A | Electric cooling fans |
| 40. MAIN | 40A | "HEAD RH(UPR)", "HEAD (RH)", "H−LP RH(LWR)" and "HEAD (LH)" fuses |
| 41. HTR | 50A | ”AM1” and ”A/C” fuses |
|
45. T−STK or CDS NO.2 |
40A 30A |
No Circuit |
| 46. ALT | 100A | ”RDI” and ”CDS” fuses |
Engine compartment fuse box (Fuse box 2) - With daytime running light system only:
| Fuse/Relay N° and Name | Rating | Functions |
| 16. DRL NO.2 | 5A | Daytime running light system |
| 17. H−LP LH(LWR) | 10A | Left−hand headlight |
| 18. H−LP RH(LWR) | 10A | Right−hand headlight |
Engine compartment fuse box (Fuse box 3):
| Fuse/Relay N° and Name | Rating | Functions |
| 47. ABS | 60A | Anti−lock brake system |
