Ford Ranger 1996 Fuse Box Info

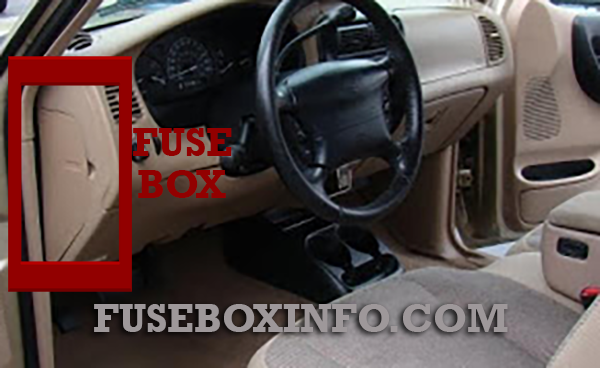

Passenger compartment fuse box location:
The fuse panel is located on the left side of the dashboard, facing the driver's door. Pull the panel cover outward to access the fuses.

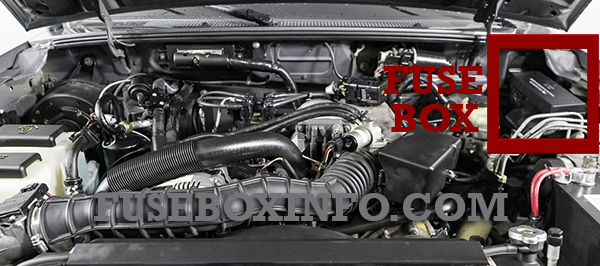

Engine compartment fuse box location:
The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads.
Fuse Box Diagram | Layout

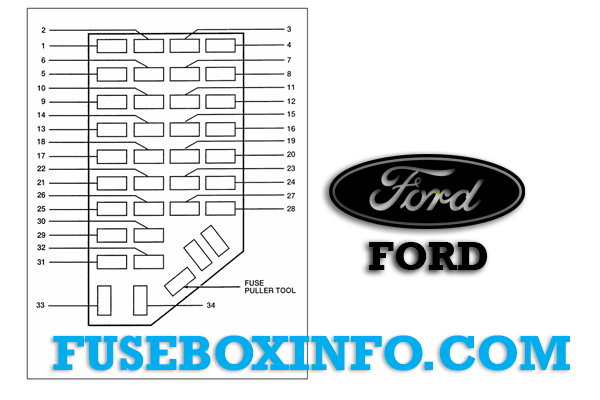

Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 7.5A | Power mirror |
| 2 | - | Open |
| 3 | 15A | Parking lamps |
| 4 | 10A | Left headlamp |
| 5 | 10A | OBD II system |
| 6 | 7.5A | Air bag system, Blower relay |
| 7 | 7.5A | Illumination switch |
| 8 | 10A | Right headlamp, Fog lamp system |
| 9 | 10A | Anti-lock system |
| 10 | 7.5A | Speed control, GEM system, Brake interlock |
| 11 | 7.5A | Warning lamps |
| 12 | 10A | Front wash system |
| 13 | 15A | PCM system, Stop lamps, 4 wheel drive, Anti-lock brake, Speed control |
| 14 | 10/20A | Anti_lock system |
| 15 | 7.5A | Air bag system, Alternator |
| 16 | 30A | Front wiper |
| 17 | 15A | Cigar lighter |
| 18 | 15A | A/C system |
| 19 | 25A | Ignition coil, PCM system |
| 20 | 7.5A | Radio, GEM system, Anti-theft |
| 21 | 15A | Hazard lamps |
| 22 | 10A | Turn signals |
| 23 | - | Not used |
| 24 | 10A | Starter relay, Anti-theft |
| 25 | 7.5A | Speedometer, GEM system |
| 26 | 10A | 4R44E/4R55E overdrive, Backup lamps, DRL system |
| 27 | 10A | Under hood lamp, Map lights, Glove box lamp, Dome lamp, Visor lamps, 4x4 system |
| 28 | 7.5A | GEM system |
| 29 | 10A | Audio system |
| 30 | - | Not used |
| 31 | - | Not used |
| 32 | - | Not used |
| 33 | 15A | High beam lamps |
| 34 | - | Not used |

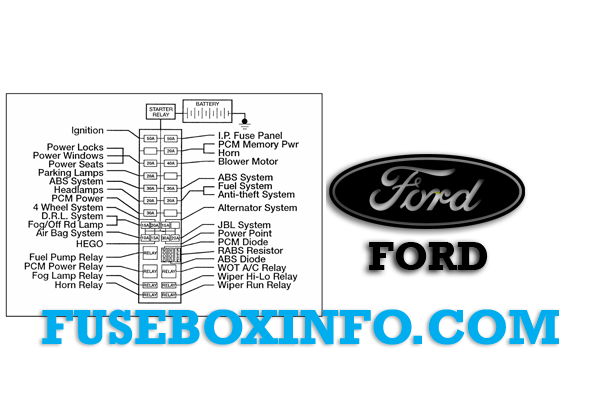

Engine compartment fuse box:

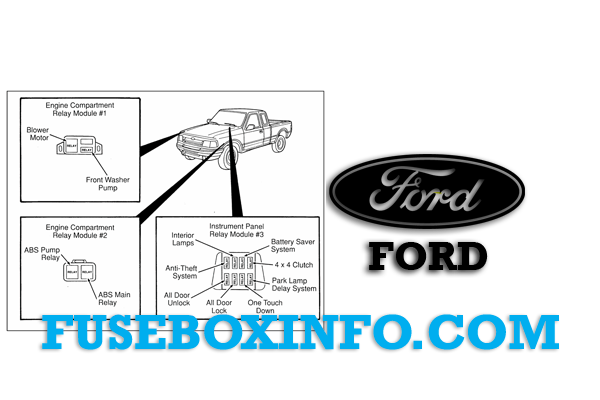

Engine compartment relay box:
