Toyota Camry 2002 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located under the instrument panel behind the cover on the driver’s side.

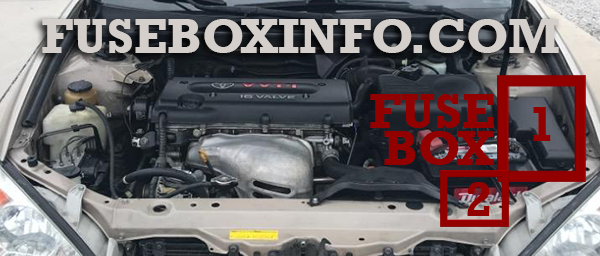

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° and Name | Rating | Functions |
| 24. ECU−B | 10A | Multiplex communication system (power door lock system, security system, auto−door locking system, automatic light control system, headlight delay off system, tail light auto cut system, illuminated entry system, daytime running light system, wireless remote control system), air conditioning system |
| 25. DOME | 7.5A | Ignition switch light, interior light, personal lights, trunk light, vanity lights, garage door opener, clock, outside temperature gauge, multi−information display |
| 26. CIG | 15A | Cigarette lighter |
| 27. ECU−ACC | 5A | Power rear view mirrors, clock, multi−information display |
| 28. RAD NO.2 | 10A | Car audio system, navigation system |
| 29. POWER POINT | 15A | Power outlets |
| 30. RAD NO.1 | 20A | Car audio system, navigation system |
| 31. GAUGE1 | 10A | Gauges and meters, clock, outside temperature gauge, multi−information display, shift lock system, seat belt reminder lights |
| 32. ECU−IG | 10A | SRS airbag system, power windows, anti−lock brake system |
| 33. WIPER | 25A | Windshield wipers |
| 34. HTR | 10A | Air conditioning systems |
| 35. MIR HTR | 10A | Outside rear view mirror heaters |
| 36. AM1 | 5A | Starting system |
| 37. FOG | 15A | Front fog lights |
| 38. SUN−SHADE | 15A | No circuit |
| 39. GAUGE2 | 10A | Auto anti−glare inside rear view mirror, compass, electric moon roof, back−up lights, automatic transmission indicator lights, automatic light control system, cruise control system |
| 40. PANEL | 10A | Glove box light, clock, outside temperature gauge, multi−information display, instrument cluster lights, instrument panel lights, overdrive−off indicator light |
| 41. TAIL | 10A | Tail lights, parking lights, license plate lights |
| 42. PWR NO.4 | 20A | Rear passenger’s power window (left side) |
| 43. PWR NO.2 | 20A | Front passenger’s door lock system, front passenger’s power window |
| 44. OBD | 7.5A | On−board diagnosis system |
| 45. SEAT HTR | 20A | Seat heaters |
| 46. WASHER | 15A | Windshield washer |
| 47. FAN RLY | 10A | Electric cooling fans |
| 48. STOP | 15A | Stop lights, high mounted stoplight, anti−lock brake system, cruise control system |
| 49. FUEL OPEN | 5A | No circuit |
| 50. DOOR NO.2 | 25A | Multiplex communication system (power door lock system, auto−door locking system, wireless remote control system) |
| 51. AMP | 25A | No circuit |
| 52. PWR NO.3 | 20A | Rear passenger’s power window (right side) |
| 60. PWR SEAT | 30A | Power seats |
| 61. PWR NO.1 | 30A | Driver’s door lock system, driver’s power window, electric moon roof |
| 62. DEF | 40A | Rear window defogger |
Engine compartment fuse box (Fuse box 1):
| Fuse/Relay N° and Name | Rating | Functions |
| 1. HEAD LH LWR | 15A | Left−hand headlight (low beam) |
| 2. HEAD RH LWR | 15A | Right−hand headlight (low beam) |
| 3. DRL | 5A | Daytime running light system |
| 4. A/C | 10A | Air conditioning system |
| 5. SPARE | 10A | Spare fuse |
| 6. SPARE | 15A | Spare fuse |
| 7. SPARE | 5A | Spare fuse |
| 8. AM2 | 20A | Starting system, “IGN” and “IG2” fuses |
| 9. HEAD LH UPR | 10A | Left−hand headlight (high beam) |
| 10. HEAD RH UPR | 10A | Right−hand headlight (high beam) |
| 11. ST | 5A | Multiport fuel injection system/sequential multiport fuel injection system |
| 12. TEL | 5A | No circuit |
| 13. ALT−S | 5A | Charging system |
| 14. IGN | 15A | Starting system |
| 15. IG2 | 10A | Multiport fuel injection system/sequential multiport fuel injection system, SRS airbag system, front seat belt pretensioners, cruise control system |
| 16. DOOR1 | 25A | Multiplex communication system (power door lock system, auto− door locking system, wireless remote control system) |
| 17. EFI | 20A | Multiport fuel injection system/sequential multiport fuel injection system |
| 18. HORN | 10A | Horns |
| 19. D.C.C | 30A | “ECU−B”, “RAD NO.1” and “DOME” fuses |
| 20. A/F | 25A | Multiport fuel injection system/sequential multiport fuel injection system |
| 21. ETCS | 10A | Multiport fuel injection system/sequential multiport fuel injection system |
| 22. HAZ | 15A | Emergency flashers |
| 53. MAIN | 40A | “HEAD LH LWR”, “HEAD RH LWR”, “HEAD LH UPR”, “HEAD LH UPR” and “DRL” fuses |
| 54. ABS NO.2 | 40A | Anti−lock brake system, vehicle skid control system, traction control system, brake assist system |
| 55. RDI | 30A | Electric cooling fan |
| 56. CDS | 30A | Electric cooling fan |
| 57. HTR | 50A | Air conditioning system |
| 58. ADJ PDL | 30A | Power adjustable pedals |
| 59. ABS NO.3 | 40A | Anti−lock brake system, vehicle skid control system, traction control system, brake assist system |
| 63. ALT |
100A (with 2AZ−FE engine) 120A (with 1MZ−FE engine) |
“DEF”, “PWR NO.1”, “PWR NO.2”, “PWR NO.3”, “PWR NO.4”, “STOP”, “DOOR NO.2”, “OBD”, “PWR SEAT”, “FUEL OPEN”, “FOG”, “AMP”, “PANEL”, “TAIL”, “AM1”, “CIG”, “POWER POINT”, “RAD NO.2”, “ECU−ACC”, “GAUGE1”, “GAUGE2”, “ECU−IG”, “WIPER”, “WASHER”, “HTR (10 A)”, “SEAT HTR”, and “SUN−SHADE” fuses |
| 64. ABS NO.1 | 60A | Anti−lock brake system, vehicle skid control system, traction control system, brake assist system |
Engine compartment fuse box (Fuse box 2) - With vehicle skid control system:
| Fuse/Relay N° and Name | Rating | Functions |
| 23. ABS NO.4 | 7.5A | Anti−lock brake system, vehicle skid control system, traction control system, brake assist system |
