Jeep Compass 2025 Fuse Box Info

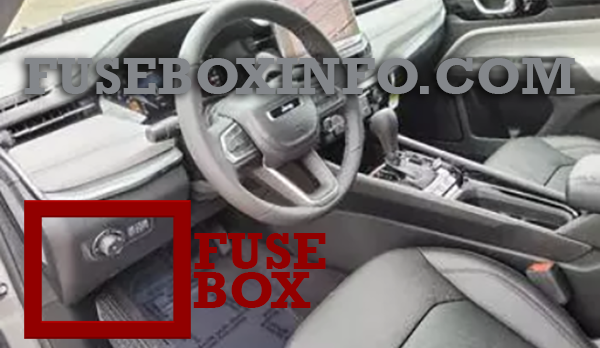

Passenger compartment fuse box location:
The fuse box is located on the driver’s side under the instrument panel lower cover,
Engine compartment fuse box location:
Luggage compartment fuse box location - If Equipped:
The fuse box is located behind the storage bin from the left rear panel of the rear cargo area. The fuses may be contained in two units.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 31 | 7.5A | Occupant Restraint Controller |
| 33 | 20A | Window Motor Passenger |
| 34 | 20A | Window Motor Driver |
| 36 | 20A | Intrusion Module/Siren, Radio, UCI/USB Port, VSU, Climate Control, Electronic Steering Lock, Power Folding Mirrors, Security Gateway/DTV |
| 37 | 10A | Instrument Panel Cluster, Drivetrain Control Module, Adaptive Cruise, ECC (HVAC) Blower |
| 38 | 20A | Door Lock/Unlock, Liftgate Release |
| 42 | 7.5A | Brake System Module, Electric Power Steering |
| 43 | 20A | Washer Pump Front And Rear |
| 47 | 20A | Rear Left Window Lifter |
| 48 | 20A | Rear Right Window Lifter |
| 49 | 7.5A | Park Assist, Blind Spot, Voltage Stabilizer, Humidity Sensor, Electronic Steering Lock, Temp Sense, Mirror, Heated Seats, Light And Rain Sensor, Start Stop Switch |
| 50 | 7.5A | Occupant Restraint Controller |
| 51 | 7.5A | Electronic Climate Control, Occupant Classification, Rear View Camera, Climate Control, Headlamp Leveling, Terrain Select, Heated Rear Window, Trailer Tow, Haptic Lane Mod |
| 53 | 7.5A | Keyless Ignition Node Module, Electric Park Brake, RF Hub, Cluster |
| 94 | 15A | Lumbar Adjust Driver Seat, Power Outlets |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 01 | - | Spare |
| 02 | - | Spare |
| 03 | - | Spare |
| 04 | 30A | Rear Defroster (EBL)* |
| 05 | - | Spare |
| 06 | 40A | TTM* |
| 07 | 40A | Smart Electric Oil Pump |
| 08 | 20A | SLM Feed LT* |
| 09 | 30A | Power Feed |
| 10 | 20A | SLM Feed RT* |
| 11 | 30A | BCM Feed 3 / (Run/Start & FB Relay and Start/Stop & FB Relay in BCM) / Aux PDC Power Feed |
| 12 | 40A | BSM Pump |
| 13 | 40A | BSM Valves |
| 14 | - | Spare |
| 15 | 40A | Starter Motor Solenoid Fuse |
| 16 | - | - |
| 17 | 40A | HVAC Fan |
| 18 | 30A | Brake Vacuum Pump |
| 19 | 2A | Steering Column Control Module (SCCM) |
| 20 | 7.5A | Engine Control Module (ECM) / Rad Fan Coil Relay |
| 21 | - | Spare |
| 22 | 7.5A | AC Compressor |
| 23 | - | Spare |
| 24 | 7.5A | Side Mirrors Defrost |
| 25 | 20A | LT HID Lamp |
| 26 | 20A | Lumbar Adjust (Driver Seat Only) / Driver & Pass Front Heater Seat SW / Driver & Pass Rear Heater Seat SW / BVP RLY Coil |
| 27 | 25A | Engine Control Module (ECM) / Fuel Injectors / Snsr GPF EGT |
| 28 | 15A | LTR Coolant Pump |
| 29A&B | - | Spare |
| 30 | 20A | RT HID Lamp |
| 31 | 15A | Wireless Charging Pad / SW Bank Lower 2 / SW Bank Lower LT & RT / Port UCI 2 |
| 32 | 20A | Fuel Injectors / Ignition Coils / Ignition Coil Capacitors |
| 33 | 10A | Relay Coil Power Control Relay* |
| 34A&B | - | Spare |
| 35 | - | Spare |
| 36 | 10A | Port UCI 2 / Mod CVPM |
| 37 | 10A | Surge Solenoid / Surge Solenoid Bypass |
| 38 | 10A | ECM / TCM / AGSM / DCSM / STM / Fuel Pump Relay Coil / SEOP / TCM 8-Speed |
| 39 | - | Spare |
| 40 | 15A | Trans Control Module Feed #1 8-Speed |
| 41 | - | Spare |
| 42 | - | Spare |
| 43 | - | Spare |
| 44 | 15A | Trans Control Module Feed #2 8-Speed |
| 45 | - | Spare |
| 46 | 30A | Drivetrain Control Module (DTCM) AWD Power |
| 47 | 30A | Front Windshield Defrost* |
| 48 | - | Spare |
| 49 | - | Spare |
| 50 | 5A | Drivetrain Control Module (DTCM) ECU Power |
| 51 | - | Spare |
| 52 | 5A | Automatic Gearbox Shifter Module (AGSM) |
| 53 | - | Spare |
| 54 | - | Spare |
| 55 | - | Spare |
| 56 | - | Spare |
| 57 | 20A | RR Power Outlet (12 Volt APO) |
| 58 | - | Spare |
| 59 | - | Spare |
| 60 | - | Spare |
| 61 | 20A | Fuel Pump |
| 62 | 5A | Intelligent Battery Sensor (IBS) |
| 63 | - | Spare |
| 64 | 10A | MOD DCSD / Handsfree Liftgate / UCI + USB Port / HRLS |
| 65 | 20A | Horn |
| 66 | 20A | Cigar Lighter* |
| 67 | 10A | Engine Control Module (ECM) |
* If Equipped
Luggage compartment fuse box - If Equipped:
| Fuse/Relay N° | Rating | Functions |
| Holder No. 1 | ||
| 2 | 30A | Memory Seat |
| 3 | 20A | Sunroof* |
| 4 | 30A | Power Seat (Passenger Side) |
| 5 | 30A | Power Seat (Driver Side) |
| 6 | 7.5A | Power Lumbar (Power Seats) |
| 8 | 20A | Heated Seats* |
| Holder No. 2 | ||
| 1 | 10A | TTM IGN Feed* |
| 5 | 15A | Controller Exterior Lighting Lights (Driver’s Side)* |
| 6 | 15A | Controller Exterior Lighting Lights (Passenger Side)* |
| 7 | 10A | TTM Jumper Battery Feed* |
| Maxi Fuse Holder for the Power Liftgate and an ATO / UniVAL Fuse Holder for the HIFI Audio System | ||
| 01 | 30A | Power Liftgate* |
| 02 | 25A | HIFI Audio System* |
* If Equipped
