Jeep Recon 2026 Fuse Box Info

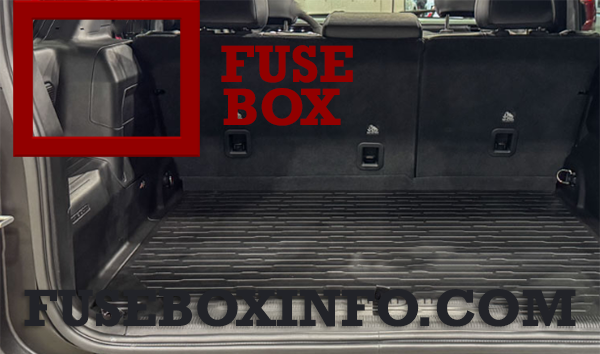

Luggage compartment fuse box location:

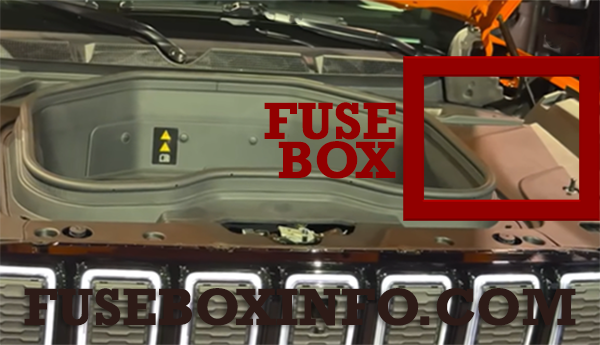

Under hood compartment fuse box location:
Fuse Box Diagram | Layout
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 03 | - | SHUNT FOR FEED FROM MAIN BATTERY |
| 05 | - | 250A FOR FEED TO UNDERHOOD PDC |
| 06 | - | NOT POPULATED |
| 07 | - | NOT POPULATED |
| 08 | - | NOT POPULATED |
| 09 | - | NOT POPULATED |
| 10 | - | NOT POPULATED |
| 11 | 50A | MOD_BCM FEED #2 |
| 12 | 5A | INTELLIGENT BATTERY SENSOR (IBS) - 1 (PF) |
| 13 | - | NOT POPULATED |
| 14 | 20A | MOD DOOR MUX_PASSENGER REAR OR SMART MOTOR |
| 15A | 10A | INTELLIGENT EVENT BASE LIGHTING MODULE / ANIMATION LIGHTING - LIFTGATE TAILLAMP |
| 15B | 10A | OCCUPANT RESTRAINT CONTROLLER (ORC) |
| 16 | 10A | IDCM |
| 17 | - | NOT POPULATED |
| 18 | 20A | 400V: (BEV) ELECTRIC OIL PUMP - EDM REAR |
| 19A | 10A | EVCU - 2_FEED #2 (BEV) |
| 19B | 10A | REAR WINDOW SWITCHES / DIGITAL TV (DTV-CHINA / JAPAN) / AS SY_OVERHEAD_CONSOLE-OHC W SUNSHADE |
| 20A | 10A | ELECTRIC DRIVE MOTOR FEED #1 - FRONT (BEV) |
| 20B | 10A | ELECTRIC DRIVE MOTOR FEED #2 - FRONT (BEV) |
| 21A | 10A | MOD_ICS_SWITCH BANK_RR (FT CONSOLE) / SW_BANK_UPPER / MOD_HVAC_CTRL_FT |
| 21B | 10A | KEYLESS IGNITION NODE MOD (KNM) / RADIO FREQUENCY HUB (RFHM) / BRAKE PEDAL SWITCH - NORMALLY OPEN / ELECTRIC PARK BRAKE SWITCH (EPB) |
| 22 | - | NOT POPULATED |
| 23 | 5A | NFC DOOR HANDLE_SWING GATE |
| 24 | - | NOT POPULATED |
| 25 | - | NOT POPULATED |
| 26 | 20A | ELECTRIC DRIVE MOTOR FEED #2 - REAR (BEV ONLY) |
| 27 | - | NOT POPULATED |
| 28 | - | NOT POPULATED |
| 29A | 15A | INSTRUMENT PANEL CLUSTER (IPC) / DRIVER ASSISTANCE SYSTEM MODULE (DASM) / EVCU-2 / HVAC_CTRL_FT / MOD_DPDM |
| 29B | - | NOT POPULATED |
| 30 | 30A | MOD MEMORY / POWER SEAT-PASS FRT |
| 31 | - | NOT POPULATED |
| 32 | - | NOT POPULATED |
| 33 | - | NOT POPULATED |
| 34 | - | NOT POPULATED |
| 35 | - | NOT POPULATED |
| 36A | - | NOT POPULATED |
| 36B | 10A | QUIET VEHICLE PEDESTRIAN MODULE (QVPM) / ANIMATION LIGHTING - RR RT/LIFTGATE TAILLAMP |
| 37 | 30A | TRAILER TOW ELECTRIC BRAKE_AFTERMARKET |
| 38 | 10A | HVIL - MAIN POWER FEED / HVIL - REDUNDANT POWER FEED |
| 39 | 20A | MODULE SEAT HEATER FRT (PASS) |
| 40 | 30A | MOD AUDIO AMPLIFIER #1A |
| 41 | 30A | MOD DOOR MUX_DRIVER |
| 42A | - | NOT POPULATED |
| 42B | 10A | DIGITAL REAR VIEW MIRROR (DRVM) |
| 43 | - | NOT POPULATED |
| 44A | 20A | 12V POWER OUTLET - CARGO AREA - IGN |
| 44B | 20A | 12V POWER OUTLET - CARGO AREA - BATTERY |
| 45 | 15A | PORT_UCI_DUAL-USB-REAR / WIRELESS CHARGING PAD -FT CONSOLE / WIRELESS CHARGING PAD - RR OF FT CONSOLE |
| 46 | 30A | MOD_MEMORY / POWER SEAT - DRIVER FT |
| 47 | 20A | EVCU - 2_FEED #3 (BEV) |
| 48 | 30A | MOD DOOR MUX_PASSENGER |
| 49 | - | NOT POPULATED |
| 50 | 10A | OCCUPANT RESTRAINT CONTROLLER (ORC) |
| 51 | 20A | MPAD - 1 / MID RANGE RADAR ECU |
| 52 | 10A | ANIMATION LIGHTING - RR LT |
| 53 | 20A | EVCU - 2 FEED #4 (BEV) |
| 54 | 20A | MOD DOOR MUX_DRIVER REAR OR SMART MOTOR |
| 55 | 25A | TRAILER TOW MODULE #2 |
| 56 | 30A | SUNROOF |
| 57 | 20A | HAPTIC LANE FEEDBACK MODULE (HaLF) / PARKTRONICS SYSTEM MODULE (PTS) / OCCUPANT CLASSIFICATION MODULE (OCM) / TRAILER TOW MODULE (TTM) / MOD_SECURITY GATEWAY (SGW) / HEADLAMP LEVELING - MOTOR FEED / HEADLAMP LEVELING - REFERENCE SIGNAL TO SWITCH / AUXILIARY GATEWAY MODULE (AGW) |
| 58 | 15A | BATTERY PACK CONTROL MODULE (BPCM) (BEV) |
| 59 | 15A | TELEMATICS BOX MODULE (TBM) / GATEWAY SECURITY MOD / ALARM SIREN UNIT (ASU) / ULTRA-SONIC ALARM MODULE (UAM, AKA UNTRUSION MODULE) / AUXILIARY GATEWAY MODULE (AGWM) |
| 60 | 20A | POWER RETRACTABLE TOP |
| 61 | 30A | ASSY_TRALIER_TOW_RECEPTACLE FUSE B+ |
| 62 | 20A | MODULE SEAT HEATER FRT (DRIVER) |
| 63 | 25A | TRAILER TOW MODULE #1 |
| 64 | 5A | NFC DOOR HANDLE #2 |
| 65 | 10A | ANIMATION LIGHTING - RR RT |
| 66 | - | NOT POPULATED |
| 67 | 20A | MOD_CRSM (HEAT SEAT RR LT) |
| 68 | 15A | PORT_PWR_OR_USB_CH_ONLY/APO - ILLUMINATION / DIGITAL TV (DTV - CHINA/JAPAN) / SUNROOF |
| 69 | 15A | LUMBAR SUPPORT DRIVER & PASSENGER SW |
| 70 | 10A | EVCU - 2_FEED #1 (BEV) / E-STOP SWITCH FEED (VP ONLY) |
| 71 | 15A | BATTERY PACK CONTROL MODULE (BPCM) -REDUNDANT (BEV) |
| 72 | 10A | HEATED SEAT SWITCH - RR RT & RR LT / INTERIOR MONITORING CAMERA (PF) / ANIMATION LIGHTING - RR LT |
| 73 | 15A | DRIVER ALERT LIGHTING MODULE (DALM) / ADAS_E_STOP / DMSM / EVCU-2 (BEV) |
| 74 | 20A | REAR WIPER |
| 75 | 5A | NFC DOOR HANDLE #3 |
| 76 | 5A | NFC DOOR HANDLE #4 |
| 77 | 20A | MOD_CRSM (HEAR SEAT RR RT) |
| 78 | 40A | MOD_BCM FEED #3 |
| 79 | - | NOT POPULATED |
| 80 | 10A | ELECTRIC DRIVE MOTOR FEED #1 - REAR |
| 81 | 5A | DIRECT CURRENT BOOST CONVERTER (DCBC) |
| 82 | 15A | MOD_COMFORT STEERING WHEEL SURFACE |
| 83 | - | NOT POPULATED |
| 84 | 10A | MID RANGE SENSOR REAR LEFT (MRSRL) / MID RANGE SENSOR REAR RIGHT (MRSRR) |
| 85 | 15A | UWB_SNSR (1-7) |
| 86 | 5A | NFC DOOR HANDLE #1 |
| 87 | - | NOT POPULATED |
| 88 | 30A | MOD_INVERTER 115V/230V |
| CB1 | - | NOT POPULATED |
| CB2 | 10A | MOD_SPAAK |
Under hood compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 01 | SHUNT | CRANK BATTERY / FEED FROM rPDC |
| 02 | 80A | ELECTRIC POWER STEERING MODULE (EPS) #1 |
| 03 | - | NOT POPULATED |
| 04 |
250A 300A |
IDCM |
| 05 | 80A | ELECTRIC POWER STEERING MODULE (EPS) #2 |
| 06 | SHUNT | AUX BATTERY |
| 07 | 100A | (w/o L2) + : RAD FAN |
| 08 | - | NOT POPULATED |
| 09 | - | NOT POPULATED |
| 10 | - | NOT POPULATED |
| 11 | - | NOT POPULATED |
| 12 | - | NOT POPULATED |
| 13 | - | NOT POPULATED |
| 14 | - | NOT POPULATED |
| 15 | - | NOT POPULATED - ROUTED PARALLEL WITH F16 |
| 16 | - | NOT POPULATED |
| 17 | 20A | ELECTRIC OIL PUMP - EDM FRONT (400V) |
| 18 | - | NOT POPULATED |
| 19 | 50A | BSM VALVE |
| 20 | - | NOT POPULATED |
| 21 | - | NOT POPULATED |
| 22 | - | NOT POPULATED |
| 23 | 10A | (BEV) CHARGE PORT INDICATOR (CPIM) / ELECTRIC AC COMPRESSOR (IOD) |
| 24 | 10A | (BEV) AHP (AUX HEATER PUMP) |
| 25 | 5A | ELECTRIC AC COMPRESSOR / ELECTRIC EXPANSION VALVE MODULE (EEXV) |
| 26 | 20A | SLM FEED_LT |
| 27 | - | NOT POPULATED |
| 28 | 15A | COOLANT PROPORTIONING VALVE / HTL & LTR BYPASS VALVE |
| 29 | - | NOT POPULATED |
| 30 | - | NOT POPULATED |
| 31 | - | NOT POPULATED |
| 32 | 5A | AUTOMATIC GEARBOX SHIFTER MODULE (AGSM/GSM) |
| 33 | 5A | ELECTRIC COOLANT HEATER (ECH) (BEV) |
| 34 | 20A | HORN |
| 35 | 20A | PECP (POWER ELECTRONICS COOLANT PUMP) |
| 36 | - | NOT POPULATED |
| 37 | 20A | (BEV) BATTERY COOLANT PUMP (BCP) |
| 38 | - | NOT POPULATED |
| 39 | 10A | ELECTRIC POWER STEERING (EPS) #1 |
| 40 | 20A | ELECTRIC POWER STEERING (EPS) #2 / BRAKE SYSTEM MODULE (BSM) #2 / ESCL |
| 41 | 10A | BSM #1 / MOD_SLM / GRILL / BADGE LAMP |
| 42 | 10A | LONG RANGE RADAR FRONT — IF EQUIPPED |
| 43 | 20A | RR POWER OUTLET (12V APO) |
| 44 | - | NOT POPULATED |
| 45 | - | NOT POPULATED |
| 46 | - | NOT POPULATED |
| 47 | - | NOT POPULATED |
| 48 | - | NOT POPULATED |
| 49 | 20A | FRONT DE-ICER |
| 50 | 40A | ECC (HVAC) BLOWER |
| 51 | - | NOT POPULATED |
| 52 | - | NOT POPULATED |
| 53 | 20A | RADIO (CMCM) |
| 54 | 20A | SLM FEED_RT |
| 55 | - | NOT POPULATED |
| 56 | - | NOT POPULATED |
| 57 | 20A | CAMERA WASHER - FRONT |
| 58 | 10A | PORT DIAGNOSTICS |
| 59 | - | NOT POPULATED |
| 60 | 20A | (BEV) PECP-2 (B+) |
| 61 | 5A | MID RANGE RADAR REAR L&R / MID RANGE RADAR FRONT L&R |
| 62 | - | NOT POPULATED |
| 63 | 10A | STEERING COLUMN CONTROL MODULE (SCCM) |
| 64 | 10A | OUTSIDE HEAT EXCHANGE EXPANSION VALVE MODULE (OEXV) / CHILLER EXPANSION VALVE MODULE (CEXV) |
| 65 | 7.5A | HEATED WINDSHIELD NOZZLE |
| 66 | 15A | ACTIVE SWAY BAR SYSTEM (ASBS) / ELECTRONIC STEERING COLUMN LOCK (ESCL) / GRILL / BADGE LAMP |
| 67 | 15A | INSTRUMENT PANEL CLUSTER (IPC) — IF EQUIPPED |
| 68 | - | NOT POPULATED |
| 69 | 10A | MOD_DCSD / TRANSFERCASE_SW / UCI +USB PORT / ACTIVE GRILL SHUTTER-LOWER / ACTIVE GRILL SHUTTER (AGS) / HRLS |
| 70 | - | NOT POPULATED |
| 71 | - | NOT POPULATED |
| 72 | 10A | MOD_CVADAS — IF EQUIPPED |
| 73 | 10A | ADCAM |
| 74 | - | NOT POPULATED |
| 75 | - | NOT POPULATED |
| 76 | - | NOT POPULATED |
| 77 | - | NOT POPULATED |
| 78 | - | NOT POPULATED |
| 79 | 30A | REAR DEFROSTER (EBL) |
| 80 | 40A | BCM FEED 4 |
| 81 | - | NOT POPULATED |
| 82 | 30A | FRT WIPER FUSE |
| 83 | 50A | BCM FEED 1 |
| 84 | - | NOT POPULATED |
| 85 | 50A | BSM PUMP |
