Jeep Wrangler 2027 Fuse Box Info
Engine compartment fuse box location:

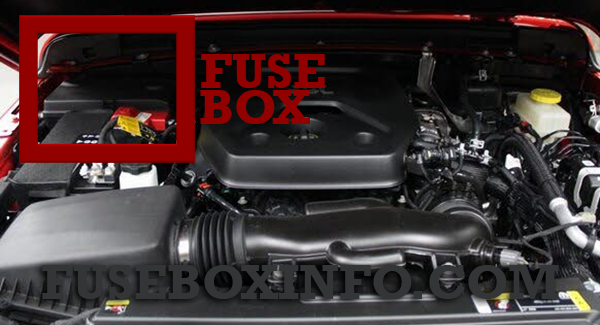

2.0L Engine, 3.6L Engine

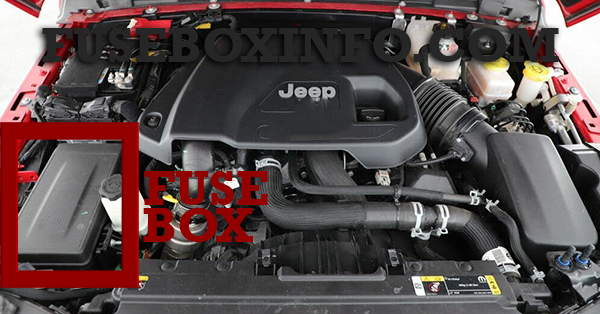

6.4L Engine
Fuse Box Diagram | Layout
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 01 | - | Not Populated* |
| 02 | 40A | Starter |
| 03 | 5A | Intelligent Battery Sensor (IBS) |
| 04 | 20A | Fuel Pump MTR / FPCM |
| 05 | 5A | Security Gateway |
| 06 | 10A | Mod_ECM (Voltage Sense) |
| 07 | 15A | LTR Coolant Pump* |
| 08 | 15A | TCM-8HP CYGNUS |
| 09 | - | Not Populated* |
| 10 | 15A | ESCL |
| 11 | 10A | UCI Port (USB & AUX) |
| 12 | 25A | HIFI Amplifier |
| 13 | 20A | E-Phasor Motor_VVT |
| 14 | - | Not Populated* |
| 15 | 15A | IPC / Switch Bank-HD Elec |
| 16 | - | Not Populated* |
| 17 | - | Not Populated* |
| 18 | 10A | AC Clutch |
| 19 | - | Not Populated* |
| 20 | 30A | Central Body Controller (CBC) 1-INTERIOR LIGHTS |
| 21 | 20A | REAR WIPER |
| 22 | 10A | ECM / ETC |
| 23 | 10A | ECM |
| 24 | 30A | Pass Pwr Seat |
| 25 | 10A | MOD_SBW |
| 26 | 40A | Central Body Controller (CBC) 2-EXTERIOR LIGHTS #1 |
| 27 | 30A | Front Wipers |
| 28 | 40A | Central Body Controller (CBC) 3-POWER LOCKS |
| 29 | 40A | Central Body Controller (CBC) 4-EXTERIOR LIGHTS #2 |
| 30 | - | Not Populated* |
| 31 | 10A | DIAGNOSTIC PORT |
| 32 | 10A | HVAC CTRL MOD / SCL / OCM / DPDM |
| 33 | 10A | PTS / IRCM / Airbag Disable Lamps |
| 34 | 10A | ESC / EHPS / SBCM Wake Up |
| 35 | 30A | BRAKE VAC PMP* |
| 36 | 30A | TRAILER TOW ELEC BRK MOD* |
| 37 | 30A | TRAILER TOW CONN 7W* |
| 38 | 20A | ECM |
| 39 | - | Not Populated* |
| 40 | 15A | DTCM / Axle Lock FT_RR |
| 41 | 15A | IC / SGW Wake Up |
| 42 | 10A | PCR Ctrl Feed (ESS)* |
| 43 | 20A | PWR OUTLET (CARGO) BATT |
| 44 | 10A | IRCAM HEATERS |
| 45 | 20A | PWR OUTLET (CARGO) IGN* |
| 46 | 10A | AUTO HDLP LVL MOD / LVL MTR / HDLP SW |
| 47 | - | Not Populated* |
| 48 | - | Not Populated* |
| 49 | 10A | Occupant Restraint Controller (ORC) |
| 50 | 10A | HD ACC* |
| 51 | 10A | Digital TV Inline / USB / ISRVM / Compass Mod |
| 52 | 20A | CIGAR LTR |
| 53 | - | Not Populated* |
| 54 | - | Not Populated* |
| 55 | 10A | Central Vision Processing Module (CVPM) |
| 56 | 10A | IN-CAR Temp Sesr / AID |
| 57 | 20A | Driver Heated Seat |
| 58 | 20A | Pass Heated Seat |
| 59 | 30A | Driver Pwr Seat |
| 60 | 15A | CSWM (Htd Str Wheel) |
| 61 | 15A | LBSS / RBSS / CADM-LO* |
| 62 | - | Not Populated* |
| 63 | - | Not Populated* |
| 64 | - | Not Populated* |
| 65 | - | Not Populated* |
| 66 | 40A | HVAC Blower Mtr Front |
| 67 | - | Not Populated* |
| 68 | - | Not Populated* |
| 69 | 10A | KIN / RF Hub |
| 70 |
20A 25A |
INJ / IGN COIL (2.0L Engine)* INJ / IGN COIL (3.6L Engine)* |
| 71 | - | Not Populated* |
| 72 | 10A | HD ELEC ACC PKG* |
| 73 | 20A | PWR TOP LT |
| 74 | 20A | PWR TOP RT |
| 75 | - | Not Populated* |
| 76 | 20A | ECM |
| 77 | 10A | Heated Mirrors |
| 78 | 10A | Intrusion Mod / SIREN / Intrusion Snsrs |
| 79 | 20A | Smart Bar Ctrl Mod |
| 80 |
15A 10A |
SOL 1,2 BLOCK SHIFT* E_Phasor / Vapor Blk Vlv (2.0L) |
| 81 | 30A | Rear Defrost (EBL) |
| 82 | - | Not Populated* |
| 83 | - | Not Populated* |
| 84 | - | Not Populated* |
| 85 | - | Not Populated* |
| 86 | - | Not Populated* |
| 87 | - | Not Populated* |
| 88 | - | Not Populated* |
| 89 | 10A | SCCM / Cruise Ctl / DTV / EVIC / Airbag Disable Lamp / AID |
| 90 | 20A | Trailer Tow Park Lmp* |
| 91 | 20A | Horn |
| 92 | 40A | HD ACCY #2* |
| 93 | 40A | HD ACCY #1* |
| 94 | 10A | Dual USB Port |
| 95 | - | Not Populated* |
| 96 | 10A | Pwr Mirror SW |
| 97 | 20A | Radio |
| 98 | 10A | SW BANK-HD ELEC / OFF ROAD |
| 99 | - | Not Populated* |
| 100 | 30A | ESC-ECU & Valves |
| 101 | 30A | DTCM |
| 102 | 15A | TBM2 / DCSD Mod |
| 103 | 15A | HD ACCY #3* |
| 104 | 15A | Lumbar SW (Driver & Pass) |
| 105 | 10A | ICS / HVAC / ETC |
| 106 | 50A | ESC -Pump Mtr |
| 107 | 20A | Trailer Tow Stop/Turn LT* |
| 108 | 15A | HD ACCY #4* |
| 109 | 20A | Trailer Tow Stop/Turn RT* |
| 110 | 30A | Power Inverter |
| 111 | 20A | Trailer Tow Backup* |
* If Equipped
