Ford Thunderbird 1996 Fuse Box Info

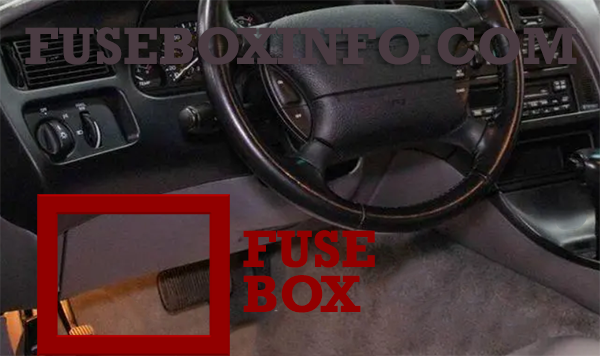

Passenger compartment fuse box location:
The fuse box is located on the driver's side, under the instrument panel.

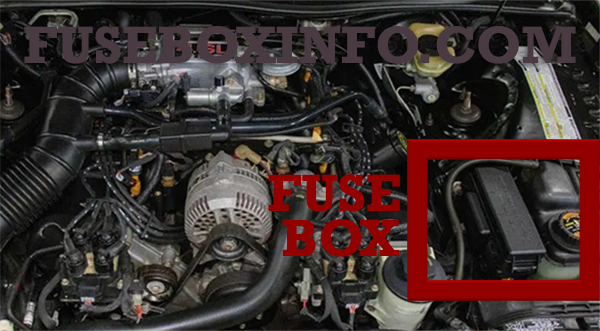

Engine compartment fuse box location:
Fuse Box Diagram | Layout

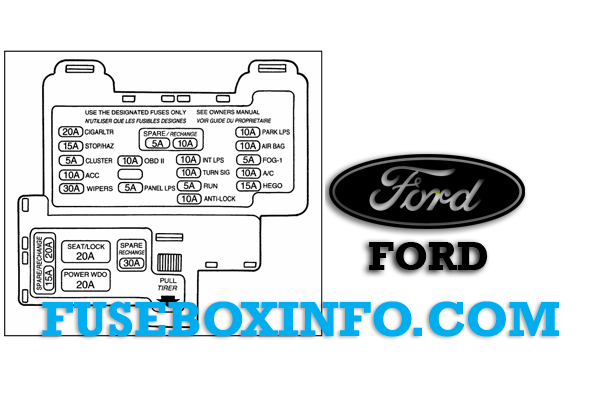

Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| Run | 5A | Cluster, Defrost switch, Coolant level sensor, Washer level sensor, DRL module, EVO test, EVO steering sensor, ARC (EVO) module, ARC switch, EATC blend door, Air bag module, Overdrive cancel switch, Brake shift solenoid |
| Anti-Lock | 10A | Main ABS relay, ABS module |
| OBD-II | 10A | OBD-II test connector |
| Panel Lps | 5A | Cluster illumination, Rear defrost switch illumination, A/C switch manual illumination, PRND21 illumination, Ashtray light, EATC illumination, Clock illumination, Radio illumination |
| Cigar Ltr. | 20A | Lighter, Flash to pass |
| Stop/Haz. | 15A | Speed control module, ABS module, Brake shift interlock, High mount brake lamp, Stop lamps, Flashers |
| Cluster | 5A | Cluster (gauges), Cluster (ABS), Cluster (air bags), Chime, Autolamp sensor |
| ACC | 10A | Integrated module, Voltmeter, Speed control, Remote keyless entry module, Anti-theft, Power window and lock switch illumination, Radio, Power antenna, Clock |
| Wipers | 30A | Wiper motor, Washer motor |
| Seat/Lock | 20A | Power locks, Decklid release solenoid, Power seats |
| Power Wdo | 20A | Power windows, Moon roof motor |
| Park Lps. | 10A | Panel dimmer, Front parking lamps, Parking lamps, Licence lamps, Autoshock module, Clock |
| Air Bag | 10A | Air bag module |
| A/C | 10A | A/C clutch |
| Hego | 15A | HEGO 1 and 2 |
| Int. Lps. | 10A | Power mirrors, Anti-theft lamp, Trunk lamp, Map lamps, Vanity lamps, Glove compartment lamp, Engine compartment lamp, Instrument panel lamps, Rear courtesy lamps, Door courtesy lamps, Dome lamp |
| Turn Sig | 10A | Indicators, Turn signals, Backup lamps |

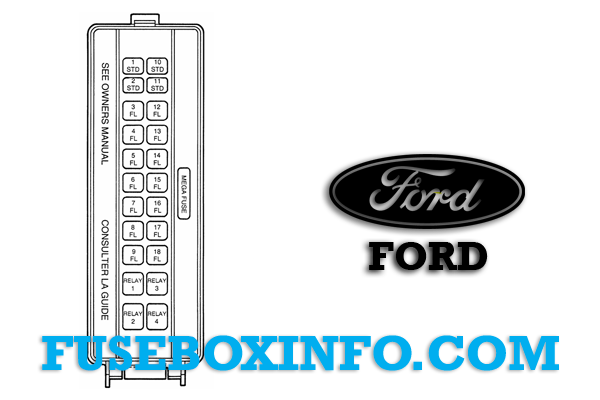

Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 STD | 15A | DRL module |
| 2 STD | 5A | Memory |
| 3 FL | 20A | Ignition coil |
| 4 FL | 20A | Autoshock |
| 5 FL | 60A | Engine fan |
| 6 FL | 40A | ABS motor |
| 7 FL | 60A | Headlamps |
| 8 FL | 20A | ABS module |
| 9 FL | 60A | Ignition switch |
| 10 STD | 15A | Horn |
| 11 STD | 15A | Generator |
| 12 FL | 40A | Fuse panel |
| 13 FL | 20A | Fuel pump |
| 14 FL | 40A | Rear defrost |
| 15 FL | 20A | Electronic engine control (EEC) module |
| 16 FL | 30A | Pusher fan |
| 17 FL | 60A | Blower motor |
| 18 FL | - | Not used |
| Relay 1 | - | Not used |
| Relay 2 | - | Not used |
| Relay 3 | - | Horn |
| Relay 4 | - | ABS |
| Mega Fuse | 175A | Power distribution box |
