Jeep Grand Cherokee 2027 Fuse Box Info
Passenger compartment fuse box location:

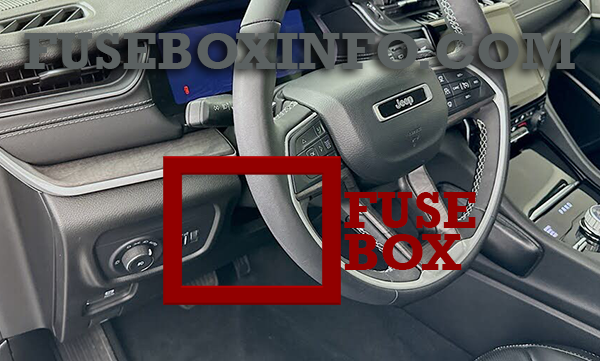

The Interior Power Distribution Center is located underneath the steering column on the driver’s side of the vehicle. The Rear Power Distribution Center is located underneath the passenger seat.

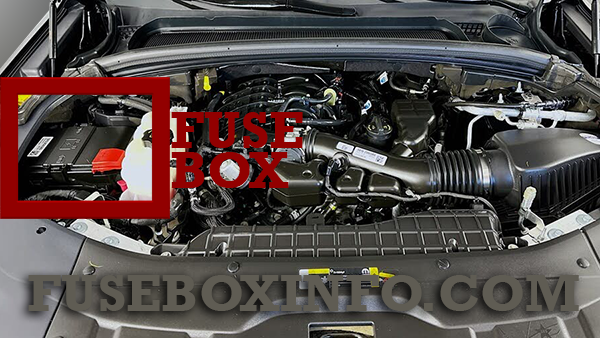

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box (Interior Power Distribution Center - Under the steering column):
| Fuse/Relay N° | Rating | Functions |
| 01 | - | Not Populated |
| 02 | 25A | MTR Sunshade Sunroof Dual Pane / MTR sunroof single Panel |
| 03 | 15A | MOD Seat Heater Frt (Steering Wheel)* |
| 04 | 10A | Night Vision Module / Driver Monitoring Camera (DMC) / ADAS E-Stop (VP only) |
| 05 | - | Not Populated |
| 06 | - | Not Populated |
| 07 | - | Not Populated |
| 08 | 15A | Automatic Gearbox Shifter Module (AGSM) / Steering Column Lock |
| 09 | - | Not Populated |
| 10 | 40A | HVAC Blower Motor |
| 11 | - | Not Populated |
| 12 | 20A | Assy Cigar Lighter |
| 13 | 10A | Assy Mirror Inside Rearview / Digital TV (DTV) */ Sunroof Single Dual Pane / Port UC1 Dual USB RR / Interior Monitoring Camera / MOD_FPDM |
| 14 | - | Not Populated |
| 15A | - | Not Populated |
| 15B | - | Not Populated |
| 16 | 10A | MOD ORC |
| 17 | - | Not Populated |
| 18 | - | Not Populated |
| 19 | - | Not Populated |
| 20 | 10A | Overhead Console Assy (OHC) W/Sunshade / Intrusion Module / MOD_ICS_SWITCH_BANK / Intrusion Sensor / Siren / Head Up Dis play (HUD) / Digital TV (DTV) * |
| 21 | 30A | Trailer Tow Electric Brake - Aftermarket |
| 22 | - | Not Populated |
| 23 | - | Not Populated |
| 24 | - | Not Populated |
| 25 | - | Not Populated |
| 26 | - | Not Populated |
| 27 | - | Not Populated |
| 28 | - | Not Populated |
| 29 | - | Not Populated |
| 30 | - | Not Populated |
| 31 | - | Not Populated |
| 32 | 15A | MOD_HVAC_CTRL_FT / SW Bank Upper / SW EPB / Aux Switch Bank Module (ASBM) |
| 33 | 15A | Transfer case SW / Humidity Rain Light Sensor (HRLS) / Electronic Toll Collector (China) / Suspension SW * |
| 34 | - | Not Populated |
| 35 | 10A | IRCAM Heater |
| 36 | - | Not Populated |
| 37 | - | Not Populated |
| 38 | - | Not Populated |
| 39 | - | Not Populated |
| 40 | - | Not Populated |
| 41A | 10A | MOD Occupant Class / Steering Column Lock / Electronic Toll Collector (China) |
| 41B | 10A | Not Populated |
| 42A | 10A | Parktronics System MOD (PTS) / MOD Haptic Lane Feedback |
| 42B | 10A | MOD HVAC Control |
| 43A | - | Not Populated |
| 43B | - | Not Populated |
| 44 | 15A | MOD Cluster CCN / MOD SGW (Cybersecurity) |
| 45 | - | Not Populated |
| 46 | - | Not Populated |
| 47A | - | Not Populated |
| 47B | - | Not Populated |
| 48A | - | Not Populated |
| 48B | - | Not Populated |
| 49 | 7.5A | MOD RF HUB / Module Ignition (MD KIN) |
| 50A | 10A | Telematics Box Module (TBM) / MOD Front Passenger Display Module (FPDM) / MOD DCSD * |
| 50B | 10A | Port Diagnostics 1 & 2 |
| 51A | - | Not Populated |
| 51B | - | Not Populated |
| 52 | - | Not Populated |
| 53 | 20A | MOD CMCM (Radio) |
| 54A | - | Not Populated |
| 54B | - | Not Populated |
| 55 | - | Not Populated |
| 56 | - | Not Populated |
| 57 | - | Not Populated |
| 58 | - | Not Populated |
| 59 | - | Not Populated |
| 60 | - | Not Populated |
| 61 | - | Not Populated |
| 62A | - | Not Populated |
| 62B | - | Not Populated |
| 63A | 15A | Media HUB #1 Frt / Port UC1 Dual USB Frt / Wireless Charging Pad MOD (WCPM) |
| 63B | 15A | Not Populated |
| 64A | 10A | MOD ORC |
| 64B | 10A | Steering Column Control Module (SCCM) |
| 65 | 5A | MOD SGW (Cybersecurity) |
| 66 | - | Not Populated |
| CB1 | - | Not Populated |
| CB2 | - | Not Populated |
| CB3 | - | Not Populated |
| CB4 | - | Not Populated |
| CB5 | - | Not Populated |
| CB6 | - | Not Populated |
* If Equipped

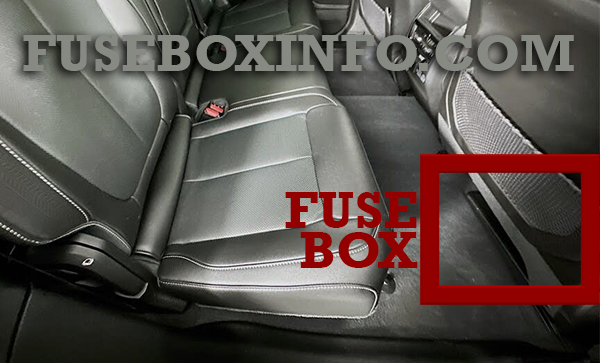

Passenger compartment fuse box (Rear Power Distribution Center - Under the passenger seat):
| Fuse/Relay N° | Rating | Functions |
| 01 | - | Not Populated |
| 02 | - | Not Populated |
| 03 | Shunt | Auxiliary Battery Feed* |
| 04 | - | Not Populated |
| 05 | 150A | Underhood PDC Feed* |
| 06 | - | Not Populated |
| 07 | - | Not Populated |
| 08 | - | Not Populated |
| 09 | - | Not Populated |
| 10 | - | Not Populated |
| 11 | 50A | Mod BCM Feed #2 |
| 12 | - | Not Populated |
| 13 | - | Not Populated |
| 14 | - | Not Populated |
| 15A | - | Not Populated |
| 15B | 10A | Hands-Free Liftgate / Rear Window Switches / MOD HVAC Cntrl Frt |
| 16 | - | Not Populated |
| 17 | 40A | Mod BCM Feed #3 |
| 18 | 30A | Power Liftgate Module |
| 19A | - | Not Populated |
| 19B | - | Not Populated |
| 20A | 15A | Central ADAS Decision Module (CADM) |
| 20B | - | Not Populated |
| 21A | - | Not Populated |
| 21B | - | Not Populated |
| 22 | - | Not Populated |
| 23 | 10A | Media Hub #2 (RR) / #3 (LR) |
| 24 | - | Not Populated |
| 25 | 30A | Mod Door MUX Passenger |
| 26 | 20A | Headrest Dump 3rd Row (LT & RT)* |
| 27 | - | Not Populated |
| 28 | 30A | MOD Memory / Power Seat (Passenger Frt) |
| 29A | 10A | MOD ICS Switch Bank Rear (Frt Console) |
| 29B | - | Not Populated |
| 30 | 30A | MOD Memory / Power Seat (Driver Frt) |
| 31 | - | Not Populated |
| 32 | - | Not Populated |
| 33 | - | Not Populated |
| 34 | 30A | MOD Door MUX Driver |
| 35 | 25A | Trailer Tow Module #2 |
| 36A | 10A | Intelligent Event Base Lighting Module |
| 36B | 10A | Port Pwr USB Console (USB CH Only) / Port UCI Dual USB Rear |
| 37 | 25A | Trailer Tow Module #1 |
| 38 | - | Not Populated |
| 39 | - | Not Populated |
| 40 | 30A | Mod Audio Amplifier #1A |
| 41 | - | Not Populated |
| 42A | - | Not Populated |
| 42B | 10A | Rear Entertainment Screens 1 (Res 1) / Screens 2 (Res 2) / Media Hub #2 RR Wake Up / Media Hub #3 Wake Up / APO Illumination / 2nd - 3rd Row Seat Switches-Illumination |
| 43 | - | Not Populated |
| 44A | 20A | 12 Volt Power Outlet Cargo Area (Ign) |
| 44B | 20A | 12 Volt Power Outlet Cargo Area (Battery) |
| 45 | 20A | MOD CRSM (Heated Seat RR RT) |
| 46 | 30A | Folding Seat Module 3rd Row Feed #1* |
| 47 | - | Not Populated |
| 48 | - | Not Populated |
| 49 | - | Not Populated |
| 50 | 15A | Seat Massage Driver Mod (SSMD) / Seat Massage Passenger Mod (SSMP)* |
| 51 | 30A | MOD IAir Suspension (Valves) |
| 52 | 20A | MOD CRSM (Heat Seat RR LT)* |
| 53 | 30A | Electronic Limited Slip Differential (ELSD) Rear #1 |
| 54 | - | Not Populated |
| 55 | 30A | MOD Inverter |
| 56 | 30A | Folding Seat Module 3rd Row Feed #2* |
| 57 | - | Not Populated |
| 58 | 15A | 3rd Row Additional USB charge (Only LT - RT) / Port Pwr USB Console UBS (CH Only) |
| 59 | 5A | NFC Door Handle #4 |
| 60 | - | Not Populated |
| 61 | - | Not Populated |
| 62 | 20A | Module Seat Heater Frt (Driver)* |
| 63 | 30A | Assy Trailer Tow Receptacle B+ |
| 64 | 10A | Mod_SPAAK |
| 65 | - | Not Populated |
| 66 | 20A | MOD Door MUX Passenger Rear - Smart Motor |
| 67 | 30A | MOD Audio Amplifier #1B |
| 68 | - | Not Populated |
| 69 | 20A | L2+ Central ADAS Decision Module (CADM) MID* |
| 70 | 10A | Video Routing Module (VRM) / Port Power - USB IP (USB Ch Only) |
| 71 | 5A | NFC Door Handle #1 |
| 72 | - | Not Populated |
| 73 | - | Not Populated |
| 74 | 5A | L2+ Intelligent Battery Sensor (IBS) - 2* |
| 75 | 5A | NFC Door Handle #3 |
| 76 | 5A | NFC Door Handle #2 |
| 77 | - | Not Populated |
| 78 | 50A | MOD IAir Suspension |
| 79 | - | Not Populated |
| 80 | - | Not Populated |
| 81 | 20A | Module Seat Heater Frt (PASS)* |
| 82 | 10A | SW Seat Heater (RR RT - RR LT)* |
| 83 | - | Not Populated |
| 84 | 15A | Snsr_UWB (1-7) |
| 85 | - | Not Populated |
| 86 | 15A | Lumbar Support Driver - Passenger SW* |
| 87 | - | Not Populated |
| 88 | 20A | MOD Door MUX Driver Rear - Smart Motor |
* If Equipped
Engine compartment fuse box (Power Distribution Center):
| Fuse/Relay N° | Rating | Functions |
| 01 | - | Crank Batt |
| 02 | - | Not Populated |
| 03 | 500A | Starter |
| 04 | 250A | Alternator |
| 05 | 80A | Electric Water Pump |
| 06 | - | Aux Battery |
| 07 | 100A | Rad Fan |
| 08 | 80A | ELEC PWR STR |
| 09 | 80A | ELEC PWR STR |
| 10 | 80A | Feed to IPDC |
| 11 | 150A | PCR* |
| 12 | - | Not Populated |
| 13 | 40A | Starter |
| 14 | 10A | GNMM / VPMS* |
| 15 | 10A | ECM* |
| 16 | 15A | Cluster |
| 17A | 10A | EPS |
| 17B | 10A | Not Populated |
| 18 | - | Not Populated |
| 19 | 30A | BSM Valves #2* |
| 20 | - | Not Populated |
| 21 | - | Not Populated |
| 22 | - | Not Populated |
| 23A | 10A | ECM / EPS / PIM / SLM / GPF |
| 23B | 10A | Air Suspension / ELSD RR |
| 24 | - | Not Populated |
| 25 | - | Not Populated |
| 26 | 50A | BSM Motor #2* |
| 27 | 30A | Rear Defroster (EBL) |
| 28 | - | Not Populated |
| 29 | - | Not Populated |
| 30 | - | Not Populated |
| 31 | - | Not Populated |
| 32 | - | Not Populated |
| 33 | - | Not Populated |
| 34 | - | Not Populated |
| 35 | - | Not Populated |
| 36 | 50A | BCM Feed #1 |
| 37 | 30A | DTCM |
| 38 | - | Not Populated |
| 39 | - | Not Populated |
| 40 | 5A | Intelligent Battery Sensor |
| 41 | 20A | CADM MAP* |
| 42 | - | Not Populated |
| 43 | 10A | Engine Control Module (ECM) |
| 44 | - | Not Populated |
| 45 | 15A | Front Axle Disconnect |
| 46 | - | Not Populated |
| 47 | - | Not Populated |
| 48 | 10A | CVPAM |
| 49 | 20A | Motor_VVT |
| 50 | - | Not Populated |
| 51 | 20A | Fuel Pump |
| 52 | - | Not Populated |
| 53 | - | Not Populated |
| 54 | 20A | Headlamp LT |
| 55 | 15A | BPCM* |
| 56 | - | Not Populated |
| 57 | - | Not Populated |
| 58 | - | Not Populated |
| 59 | - | Not Populated |
| 60 | - | Not Populated |
| 61 | - | Not Populated |
| 62 | - | Not Populated |
| 63 | 20A | Camera Washer Front |
| 64 | 15A | Smart Bar Control Module |
| 65 | 15A | ACT Grille Shutter / ACT Rear Axle Coolant Valve / Active Air Dam |
| 66 | 20A | Horns |
| 67 | 10A | DTCM / ASBS / Switchable Engine Mount / BSM #2 |
| 68 | 20A | Headlamp RT |
| 69 | - | Not Populated |
| 70 | 20A | IGN Coil / IGN Capacitors / Fuel Inj |
| 71 | - | Not Populated |
| 72 | - | Not Populated |
| 73 | - | Not Populated |
| 74 | - | Not Populated |
| 75 | - | Not Populated |
| 76 | 5A | IDCM* |
| 77 | 20A | TCM SBW |
| 78 | 20A | ECM |
| 79 | 10A | Fuel Door / ELCM / Motor VVT |
| 80 | 20A | ECM |
| 81 | 40A | BCM Feed #4 |
| 82 | - | Not Populated |
| 83 | 50A | TCM |
| 84 | - | Not Populated |
| 85 | 10A | PCR |
| 86 | 50A | BSM Feed #1 |
| 87 | - | Not Populated |
| 88 | 50A | BSM Feed #2 |
| 89 | - | Not Populated |
| 90 | - | Not Populated |
| 91 | - | Not Populated |
| 92 | 20A | Front De-Icer |
| 93 | - | Not Populated |
| 94 | 10A | A/C Compressor Clutch |
| 95 | 10A | Batt Cool Heater* |
| 96 | 5A | Elect Cool Heater* |
| 97 | - | Not Populated |
| 98 | - | Not Populated |
| 99 | - | Not Populated |
| 100A | - | Not Populated |
| 100B | - | Not Populated |
| 101 | - | Not Populated |
| 102 | - | Not Populated |
| 103 | 30A | Frt Wiper |
| 104A | 15A | PECP Low Temp Passive Pump* |
| 104B | 15A | AHP High Temp Aux Pump* |
| 105A | 15A | BCP Low Temp Active Pump* |
| 105B | 15A | LTR Coolant Pump PECP-2* |
* If Equipped
