Citroën C3 2014 Fuse Box Diagram

 Fuse box location:

Unclip the cover by pulling on the side, remove the cover completely.



Engine compartment fusebox:

The fusebox is located in the engine compartment near the battery.

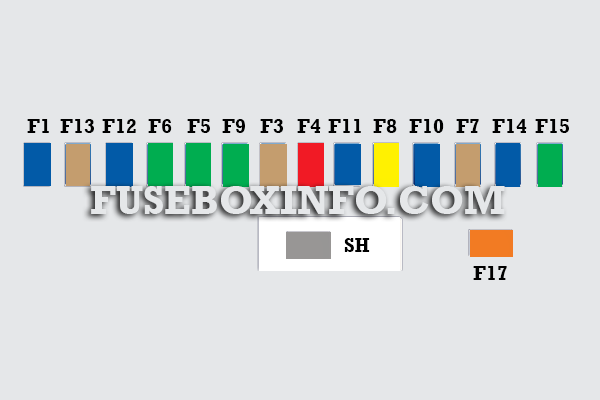

Fuse Box Diagram | Layout

Dashboard

Fuse tables:



Fuse N° Rating Functions
FH36 5 A Trailer relay unit.
FH37 - Not used.
FH38 20 A Hi-Fi amplifi er.
FH39 20 A Heated seats.
FH40 40 A Trailer relay unit.



Fuse N° Rating Functions
F1 - Not used.
F2 - Not used.
F3 5 A Airbags and pretensioners control unit.
F4 10 A Air conditioning, clutch switch, electrochromatic
mirror, particle fi lter pump (Diesel), diagnostic
socket, airfl ow sensor (Diesel).
F5 30 A Electric windows panel, passenger's electric
window control, front electric window motor.
F6 30 A Rear electric windows motors and driver's electric
window motor.
F7 5 A Courtesy lamp, glove box lighting, side reading
lamps.
F8 20 A Multifunction screen, audio system, navigation and
audio system, instrument panel with clock, alarm
control unit, alarm siren, audio system (after-market),
12 V socket, portable navigation carrier power supply.
F9 30 A Multifunction screen, audio system, navigation and
audio system, instrument panel with clock, alarm
control unit, alarm siren, audio system (after-market),
12 V socket, portable navigation carrier power supply,
locking.
F10 15 A Steering mounted controls.
F11 15 A Ignition, diagnostic socket, automatic gearbox
control unit.
F12 15 A Rain/sunshine sensor, trailer relay unit, driving
school module.
F13 5 A Main stop switch, engine relay unit.
F14 15 A Parking sensors control unit, airbag control unit,
instrument panel, digital air conditioning, USB Box,
HiFi amplifi er.
F15 30 A Locking.
F16 - Not used.
F17 40 A Rear screen and door mirrors demisting/defrosting.
SH - PARC shunt.



 Engine compartment fuse box



Fuse N° Rating Functions
F1 20 A Engine control unit supply, cooling fan unit control relay,
multifunction engine control main relay, injection pump (Diesel).
F2 15 A Horn.
F3 10 A Front/rear wash-wipe.
F4 20 A Daytime running lamps, LED daytime running lamps.
F5 15 A Diesel heater (Diesel), particle filter additive pump (Diesel), air
flow sensor (Diesel), fuel pump (1.1i and 1.4i), blow-by heater
and electrovalves (VTi).
F6 10 A ABS/ESP control unit, secondary brake lamp
switch.
F7 10 A Electric power steering, automatic gearbox.
F8 25 A Starter motor control.
F9 10 A Switching and protection unit (Diesel).
F10 30 A Fuel heater (Diesel), blow-by heater (1.1i, 1.4i and
Diesel), fuel pump (VTi), injectors and ignition coils
(petrol), electronic thermostat and canister purge
electrovalve (1.1i and 1.4i).
F11 40 A Heater blower.
F12 30 A Windscreen wipers slow/fast speed.
F13 40 A Built-in systems interface supply (ignition positive).
F14 30 A Valvetronic supply (VTi).
F15 10 A Right-hand main beam headlamps.
F16 10 A Left-hand main beam headlamps.
F17 15 A Left-hand dipped beam headlamps.
F18 15 A Right-hand dipped beam headlamps.
F19 15 A Oxygen sensors and electrovalves (VTi),
electrovalves (Diesel), EGR electrovalve (Diesel).
F20 10 A Pumps, electronic thermostat (VTi), water in fuel
sensor (Diesel).
F21 5 A Fan assembly control supply, ABS/ESP.



Table of maxi-fuses

Fuse N° Rating Functions
MF1 60 A Fan assembly.
MF2 30 A ABS/ESP pump.
MF3 30 A ABS/ESP electrovalves.
MF4 60 A Built-in Systems Interface (BSI) supply.
MF5 60 A Built-in Systems Interface (BSI) supply.
MF6 - Not used.
MF7 80 A Dashboard fusebox.
MF8 - Not used.
