Citroën C3 2020 Fuse Box

Citroën C3 2020 Fuse Box Info



Passenger fuse box location:

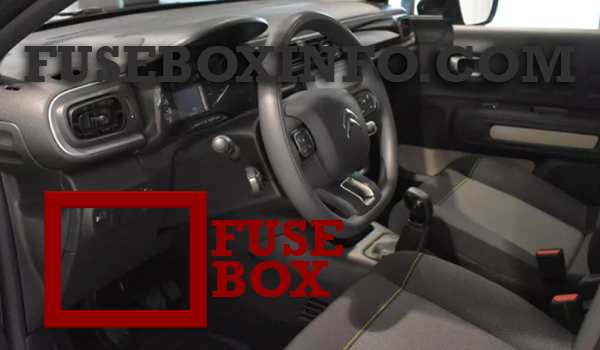

The 2 fuseboxes are located in the lower part of the dashboard, below the steering wheel.



Engine compartment fuse box:





Fuse Box Diagram | Layout



Passenger compartment fuse box (Upper fusebox):

Fuse/Relay N° Rating Functions
31 10A Left front and right rear smart window motors
33 40A Driver seat switch power
34 40A Right front smart window motor
35 30A Demand lamps battery saver relay
5 20A Audio amplifiers



Passenger compartment fuse box (Lower fusebox):

Fuse/Relay N° Rating Functions
1 10A Door mirror adjustment
10(+)-11(Gnd) 30A Door and fuel filler flap (depending on engine) locking/unlocking
13 10A Air conditioning
14 5A Alarm
18 5A Air conditioning
29 20A Telematic audio system
31 15A Audio system (accessory)
32 15A Front 12 V socket
35 5A Additional heater (depending on equipment)
36 5A Front map reading lamp
4 15A Horn
6(+)-5(Gnd) 20A Front and rear screenwash pump
8 20A Rear wiper



Engine compartment fuse box:

Fuse/Relay N° Rating Functions
1 40A Air conditioning
16 20A Front foglamp
18 10A Right-hand main beam headlamp
19 10A Left-hand main beam headlamp
25 40A Trailer attachment pre-equipment
29 40A Windscreen wipers
