Ford Taurus 1997 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located below and to the left of the steering wheel by the brake pedal.
Engine compartment fuse box location:
Fuse Box Diagram | Layout

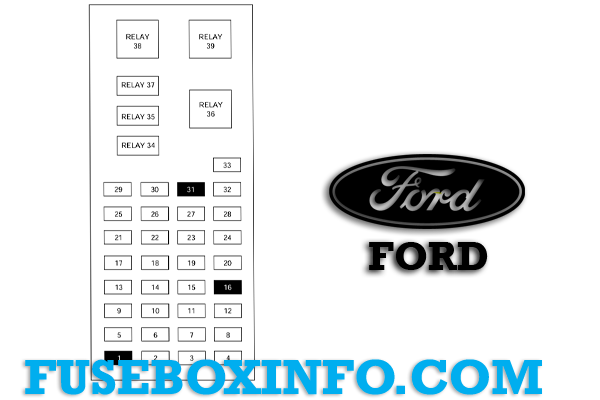

Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not used |
| 2 | 5A | Instrument illumination |
| 3 | 10A | Left low beam headlamp |
| 4 | 10A | Right low beam headlamp |
| 5 | 5A | Brake shift interlock, Rear defroster |
| 6 | 15A | MLPS switch, Backup lamps, Speed control, Climate control |
| 7 | 10A | MLPS switch, Starter relay |
| 8 | 5A | Power antenna, Radio control unit, GEM |
| 9 | 10A | ABS, Central temperature monitor |
| 10 | 20A | EEC relay, Ignition coil, Passive anti-theft system, Radio |
| 11 | 5A | Air bag indicator, Instrument cluster |
| 12 | 5A | Instrument cluster, Autolamps, Transmission control switch, Integrated control panel, GEM |
| 13 | 5A | Air bag, Blower motor, Electronic automatic temperature control |
| 14 | 5A | Lamp outage indication, Semi-active suspension (SHO only) |
| 15 | 10A | Multi-function switch (Turn signal) |
| 16 | - | Not used |
| 17 | 30A | Wiper system (front) |
| 18 | 5A | Headlamp switch |
| 19 | 15A | Wiper system (rear) |
| 20 | 5A | Integrated control panel, Remote entry, Cigar lighter |
| 21 | 20A | Cigar lighter |
| 22 | 5A | Power mirrors, Power antenna, Decklid lamps, Autolamp |
| 23 | 5A | Wiper system, Variable assist steering, Remote entry, Anti-theft |
| 24 | 5A | Integrated control panel, Speedometer, Electronic automatic temperature control module |
| 25 | 10A | Data link connector |
| 26 | 15A | Trunklid |
| 27 | 10A | Battery saver relay |
| 28 | 15A | Brake lamps, Stop control |
| 29 | 15A | Multi-function switch, Hazard flashers |
| 30 | 15A | High beams, Daytime running lamps, Instrument cluster |
| 31 | 5A | Tail lamp feed |
| 32 | 5A | Integrated control panel, Heated mirrors |
| 33 | 5A | Power windows, Lock illumination |
| 34 | - | Battery saver relay |
| 35 | - | Driver door unlock relay |
| 36 | - | Rear defroster relay |
| 37 | - | Interior lamps relay |
| 38 | - | One touch window down relay |
| 39 | - | Accessory delay relay |

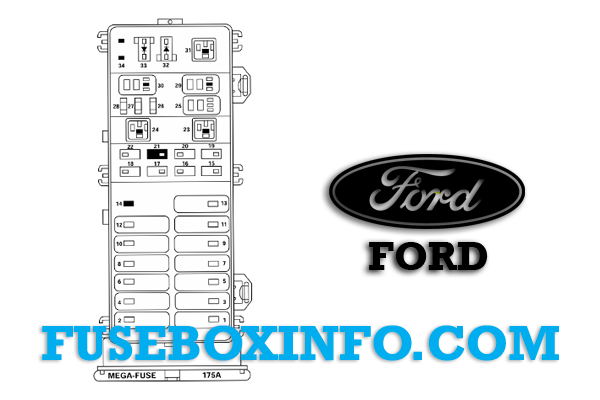

Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 40A | Fuse panel |
| 2 | 30A | Constant control relay module |
| 3 | 40A | Ignition switch, Starter relay |
| 4 | 30A | Accessory delay relay |
| 5 | 40A | Ignition switch |
| 6 | 30A | Power seats |
| 7 | 40A | Rear window defrost relay |
| 8 | 30A | Thermactor air bypass solenoid, EAM solid state relay |
| 9 | 40A | Constant control relay module |
| 10 | 20A | Constant control relay module |
| 11 | 40A | Blower motor relay |
| 12 | 20A | Semi-active ride control module |
| 13 | 40A | Anti-lock motor module |
| 14 | - | Not used |
| 15 | 15A | Daytime running lamps (DRL) module |
| 16 | 10A | Airbag diagnostic monitor |
| 17 | 20A | Rear control unit, CD changer |
| 18 | 30A | Anti-lock brake module |
| 19 | 15A | Horn relay, Powertrain control module |
| 20 | 15A | Headlamp switch, Autolamp park relay |
| 21 | - | Not used |
| 22 | 30A | Autolamps relay, Multi-function switch, Headlamp switch |
| 23 | - | N/A |
| 24 | - | N/A |
| 25 | - | N/A |
| 26 | 30A | Generator/Voltage regulator |
| 27 | - | N/A |
| 28 | 15A | Heated oxygen sensors, Canister vent |
| 29 | - | N/A |
| 30 | - | N/A |
| 31 | - | N/A |
| 32 | - | N/A |
| 33 | - | N/A |
