Citroën C1 2016, 2017, 2018 Fuse Box Diagram

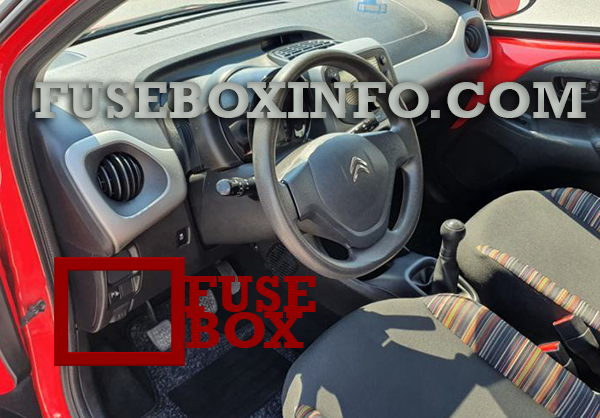

Fuse box location:
The fusebox is located below the dashboard.

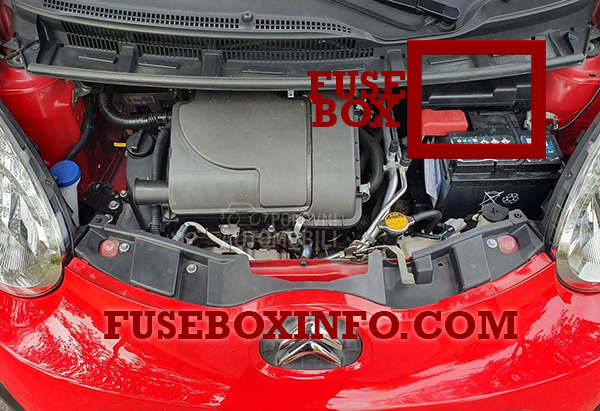

Engine compartment fusebox:
The fusebox is placed in the engine compartment near the battery.
Fuse Box Diagram | Layout

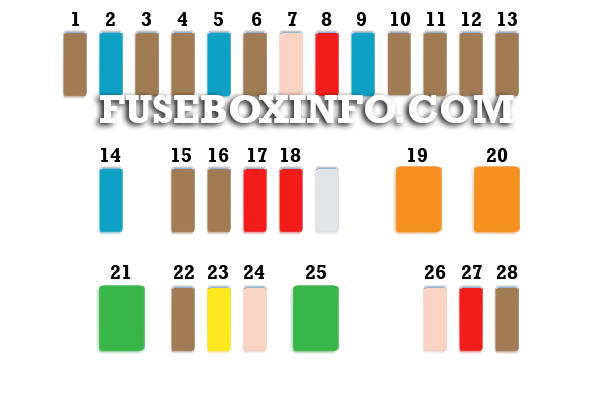

Dashboard fuses:
| Fuse N° | Rating | Functions |
| 1 | 5 A | Reversing lamp - Fuel injection system - Audio system - VSC system |
| 2 | 15 A | Front and rear screenwash |
| 3 | 5 A | Main distribution unit - Instrument panel - Display screen - Air conditioning - Heated rear screen and door mirror heating - Electric fabric roof - Audio system |
| 4 | 5 A | Electric power steering - Stop & Start |
| 5 | 15 A | Rear wiper |
| 6 | 5 A | Cooling fan - ABS system - VSC system |
| 7 | 25 A | Front wiper |
| 8 | 10 A | Heated door mirrors |
| 9 | 15 A | 12 V socket (120 W max) |
| 10 | 7.5 A | Door mirrors - Audio system - Stop & Start - Instrument panel - Display screen |
| 11 | 5 A | Steering lock - Fuel injection system - Electronic gearbox |
| 12 | 7.5 A | Airbags |
| 13 | 5 A | Instrument panel - Display Screen - Stop & Start |
| 14 |
15 A** 7.5 A * |
Steering - Fuel injection system - Brake lamps |
| 15 |
7.5 A ** 10 A * |
Fuel injection system - Stop & Start |
| 16 | 7.5 A | Engine diagnosis |
| 17 | 10 A | Brake lamps - Third brake lamp - Fuel injection system - ABS system - VSC system - Electronic gearbox - Keyless Entry and Starting system |
| 18 | 10 A | Sidelamps - Number plate lamps - Rear foglamp - Rear lamps - Lighting dimmer |
| 19 | 40 A | Air conditioning |
| 20 | 40 A | Air conditioning - Engine self-diagnosis - Sidelamps - Number plate lamps - Rear foglamp - Rear lamps - Lighting dimmer - Brake lamps - Third brake lamp - Fuel injection system - ABS system - VSC system - Electronic gearbox - "Keyless Entry and Starting" system - Electric windows |
| 21 | 30 A | Fuel injection system - Stop & Start - Main distribution unit |
| 22 ** | 7.5 A | Fuel injection system |
| 23 ** | 20 A | Fuel injection system - Stop & Start |
| 24 | 25 A | Main distribution unit |
| 25 | 30 A | Electric windows |
| 26 | 25 A | Electric windows |
| 27 | 10 A | Air conditioning |
| 28 | 5 A | Rear foglamp |
* PureTech 82 engine.
** VTi 68 engine.

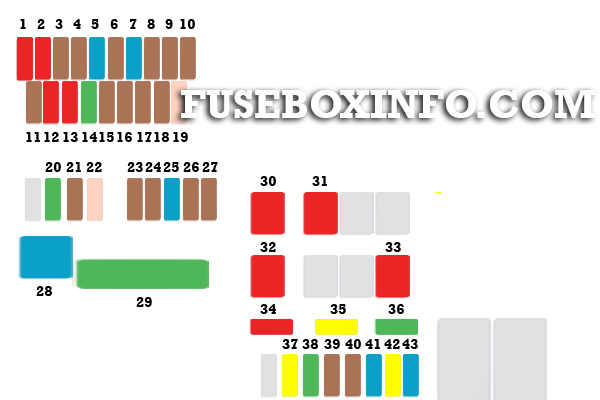

Engine compartment fusebox:
| Fuse N° | Rating | Functions |
| 1 | 10 A | Right hand dipped beam |
| 2 | 10 A | Left hand dipped beam - Headlamp adjustment |
| 3 | 7.5 A | Right hand main beam |
| 4 | 7.5 A | Left hand main beam |
| 5* | 15 A | Fuel injection system |
| 6* | 7.5 A | Fuel injection system |
| 7* | 15 A | Fuel injection system |
| 8* | 7.5 A | Cooling fan |
| 9 | 7.5 A | Air conditioning |
| 10** | 7.5 A | Fuel injection system - Brake lamps - Third brake lamp |
| 11 | 5 A | Courtesy lamp - Boot lamp |
| 12 | 10 A | Direction indicators - Hazard warning lamps - Instrument panel - Display screen |
| 13 | 10 A | Horn |
| 14 | 30 A | Distribution units |
| 15** | 7.5 A | Electronic gearbox |
| 16 | 7.5 A | Fuel injection system |
| 17 | 7.0 A | Keyless Entry and Starting system |
| 18** | 7.5 A | Battery |
| 19 | 25 A | Fuel injection system - Cooling fan |
| 20 | 30 A | Starter motor |
| 21 | 7.5 A | Steering lock |
| 22 | 25 A | Front lamps |
| 23 | 7.5 A | Fuel injection system |
| 24 | 7.5 A | Fuel injection system - Starter motor - Electronic gearbox - Stop & Start |
| 25 | 15 A | Audio system - "Keyless Entry and Starting" system |
| 26 | 7.5 A | Instrument panel - Display screen |
| 27 | 7.5 A | VSC system |
| 28 | 60 A | Passenger compartment fusebox |
| 29** | 125 A *** | Heated rear screen and door mirror heating - Electric fabric roof - ABS system - VSC system - Cooling fan - LED daytime running lamps |
| 30 |
50 A 40 A |
Electronic gearbox Stop & Start |
| 31 | 50 A | Power steering |
| 32 |
50 A * 30 A 40 A |
Cooling fan |
| 33 | 50 A | ABS system - VSC system |
| 34 | 10 A | Spare fuse |
| 35 | 20 A | Spare fuse |
| 36 | 30 A | Spare fuse |
| 37 | 20 A | Heated rear screen and door mirror heating |
| 38 | 30 A | ABS system - VSC system |
| 39 | 7.5 A | Instrument panel - Display screen |
| 40 | 7.5 A | LED daytime running lamps |
| 41 | - | Not used |
| 42 | 20 A | Electric fabric roof |
| 43 | - | Not used |
* PureTech 82 engine.
** VTi 68 engine.
*** This fuse must be replaced only by a CITROËN dealer or a qualified workshop.
