Ford Taurus 1996 Fuse Box Info

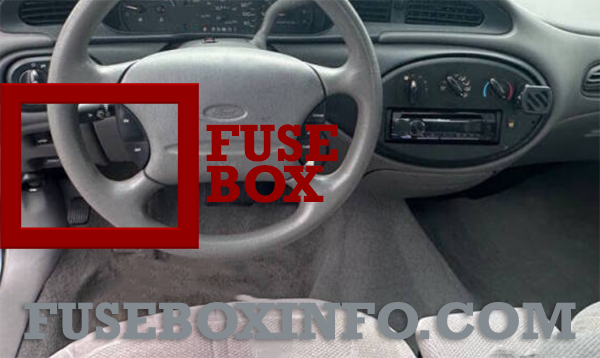

Passenger compartment fuse box location:
The fuse box is located below and to the left of the steering wheel by the brake pedal.

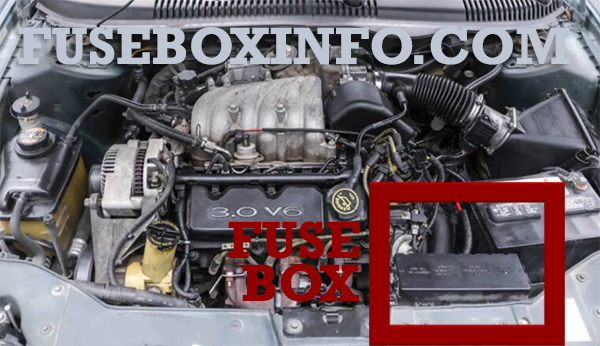

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Not used |
| 2 | 5A | Instrument illumination |
| 3 | 10A | Left low beam headlamp |
| 4 | 10A | Right low beam headlamp |
| 5 | 5A | Brake shift interlock, Rear defroster |
| 6 | 15A | MLPS switch, Backup lamps, Speed control, Climate control |
| 7 | 10A | MLPS switch, Starter relay |
| 8 | 5A | Power antenna, RCU, GEM |
| 9 | 10A | ABS, Central temperature monitor |
| 10 | 20A | EEC relay, Ignition coil, PATS, Radio |
| 11 | 5A | Air bag, Instrument cluster |
| 12 | 5A | Instrument cluster, Autolamps, Transmission control switch, ICP, GEM |
| 13 | 5A | Air bag, Blower motor, EATC |
| 14 | 5A | Air suspension, LOM |
| 15 | 10A | Multi-function switch (Turn signal) |
| 16 | - | Not used |
| 17 | 30A | Front wiper/washer |
| 18 | 5A | Headlamp switch |
| 19 | 15A | Rear wiper/washer |
| 20 | 5A | ICP, Remote entry, Cellular phone |
| 21 | 20A | Cigar lighter |
| 22 | 5A | Power mirrors, Antenna, Decklid lamps, Autolamp |
| 23 | 5A | GEM, RAP, PATS |
| 24 | 5A | ICP, RCC, Speedometer |
| 25 | 10A | Data link connector |
| 26 | 15A | Trunklid |
| 27 | 10A | Battery saver relay |
| 28 | 15A | Speed control, Stop lamps |
| 29 | 15A | Multi-function switch, Hazard |
| 30 | 15A | High beams, Daytime running lamps, Instrument cluster |
| 31 | 5A | Tail lamp feed |
| 32 | 5A | ICP, Heated mirrors |
| 33 | 5A | Power windows, Lock illumination |
| 34 | - | Battery saver relay |
| 35 | - | Driver's unlock relay |
| 36 | - | Rear defrost relay |
| 37 | - | Interior lamp relay |
| 38 | - | One touch window down relay |
| 39 | - | Accessory delay relay |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 40A | Junction block |
| 2 | 30A | EEC power |
| 3 | 40A | Ignition |
| 4 | 30A | Power locks |
| 5 | 40A | Ignition |
| 6 | 30A | Power seats |
| 7 | 40A | Rear window defrost |
| 8 | 30A | Thermactor pump |
| 9 | 40A | Cooling fan |
| 10 | 20A | Fuel pump |
| 11 | 40A | Blower motor |
| 12 | 20A | Semi-active suspension |
| 13 | 40A | ABS module |
| 14 | 20A | Radio |
| 15 | 15A | Daytime running lamps |
| 16 | 10A | Air bag |
| 17 | 20A | Radio |
| 18 | 30A | Headlamps |
| 19 | 15A | Horn |
| 20 | 15A | Park lamps |
| 21 | - | Not used |
| 22 | 30A | Headlamps |
| 23 | - | Blower motor relay |
| 24 | - | Wiper park relay |
| 25 | - | Wiper HI/LO relay |
| 26 | 30A | Alternator |
| 27 | 10A | Hego power |
| 28 | - | Washer motor relay |
| 29 | - | Horn relay |
| 30 | - | Autolamp headlamp relay |
| 31 | - | Starter relay |
| 32 | - | Autolamp park relay |
