Fuse box location:
Unclip the cover by pulling on the side, remove the cover completely.
Engine compartment fusebox:
The fusebox is located in the engine compartment near the battery.
Fuse Box Diagram | Layout
Dashboard
Fuse tables:
| Fuse N° | Rating | Functions |
| FH36 | 5 A | Trailer relay unit. |
| FH37 | - | Not used. |
| FH38 | 20 A | Hi-Fi amplifi er. |
| FH39 | 20 A | Heated seats. |
| FH40 | 40 A | Trailer relay unit. |
| Fuse N° | Rating | Functions |
| F1 | 15 A | Rear wiper. |
| F2 | - | Not used. |
| F3 | 5 A | Airbags and pretensioners control unit. |
| F4 | 10 A | Air conditioning, clutch switch, electrochromatic mirror, particle fi lter pump (Diesel), diagnostic socket, airfl ow sensor (Diesel). |
| F5 | 30 A | Electric windows panel, passenger's electric window control, front electric window motor. |
| F6 | 30 A | Rear electric windows motors and driver's electric window motor. |
| F7 | 5 A | Courtesy lamp, glove box lighting, side reading lamps. |
| F8 | 20 A | Multifunction screen, audio system, navigation and audio system, instrument panel with clock, alarm control unit, alarm siren, audio system (after-market), 12 V socket, portable navigation carrier power supply. |
| F9 | 30 A | Multifunction screen, audio system, navigation and audio system, instrument panel with clock, alarm control unit, alarm siren, audio system (after-market), 12 V socket, portable navigation carrier power supply, locking. |
| F10 | 15 A | Steering mounted controls. |
| F11 | 15 A | Ignition, diagnostic socket, automatic gearbox control unit. |
| F12 | 15 A | Rain/sunshine sensor, trailer relay unit, driving school module. |
| F13 | 5 A | Main stop switch, engine relay unit. |
| F14 | 15 A | Parking sensors control unit, airbag control unit, instrument panel, digital air conditioning, USB Box, HiFi amplifi er. |
| F15 | 30 A | Locking. |
| F16 | - | Not used. |
| F17 | 40 A | Rear screen and door mirrors demisting/defrosting. |
| SH | - | PARC shunt. |

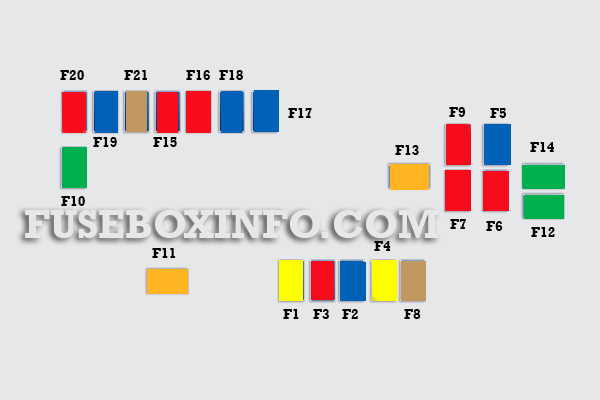

Engine compartment fuse box
| Fuse N° | Rating | Functions |
| F1 | 20 A | Engine control unit supply, cooling fan unit control relay, multifunction engine control main relay, injection pump (Diesel). |
| F2 | 15 A | Horn. |
| F3 | 10 A | Front/rear wash-wipe. |
| F4 | 20 A | Daytime running lamps. |
| F5 | 15 A | Diesel heater (Diesel), particle fi lter additive pump (Diesel), air fl ow sensor (Diesel), fuel pump (1.1i and 1.4i), blow-by heater and electrovalves (VTi). |
| F6 | 10 A | ABS/ESP control unit, secondary brake lamp switch. |
| F7 | 10 A | Electric power steering, automatic gearbox. |
| F8 | 25 A | Starter motor control. |
| F9 | 10 A | Switching and protection unit (Diesel). |
| F10 | 30 A | Fuel heater (Diesel), blow-by heater (1.1i, 1.4i and Diesel), fuel pump (VTi), injectors and ignition coils (petrol), electronic thermostat and canister purge electrovalve (1.1i and 1.4i). |
| F11 | 40 A | Heater blower. |
| F12 | 30 A | Windscreen wipers slow/fast speed. |
| F13 | 40 A | Built-in systems interface supply (ignition positive). |
| F14 | 30 A | Valvetronic supply (VTi). |
| F15 | 10 A | Right-hand main beam headlamps. |
| F16 | 10 A | Left-hand main beam headlamps. |
| F17 | 15 A | Left-hand dipped beam headlamps. |
| F18 | 15 A | Right-hand dipped beam headlamps. |
| F19 | 15 A | Oxygen sensors and electrovalves (VTi), electrovalves (Diesel), EGR electrovalve (Diesel). |
| F20 | 10 A | Pumps, electronic thermostat (VTi), water in fuel sensor (Diesel). |
| F21 | 5 A | Fan assembly control supply, ABS/ESP. |
Table of maxi-fuses
| Fuse N° | Rating | Functions |
| MF1 | 60 A | Fan assembly. |
| MF2 | 30 A | ABS/ESP pump. |
| MF3 | 30 A | ABS/ESP electrovalves. |
| MF4 | 60 A | Built-in Systems Interface (BSI) supply. |
| MF5 | 60 A | Built-in Systems Interface (BSI) supply. |
| MF6 | - | Not used. |
| MF7 | 80 A | Dashboard fusebox. |
| MF8 | - | Not used. |
