Citroën AMI 2020 Fuse Box Diagram

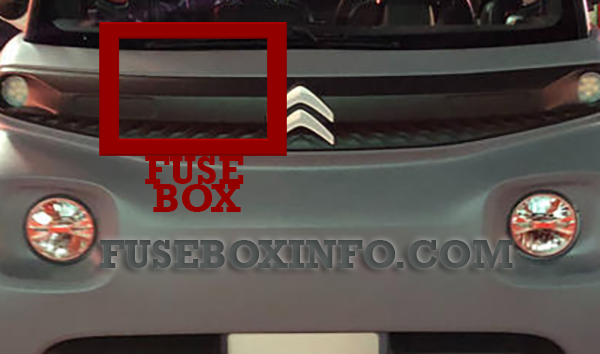

Fuse boxes location:
The fuse boxes are located inside the car, behind the driver’s seat.
Fuse Box Diagram | Layout

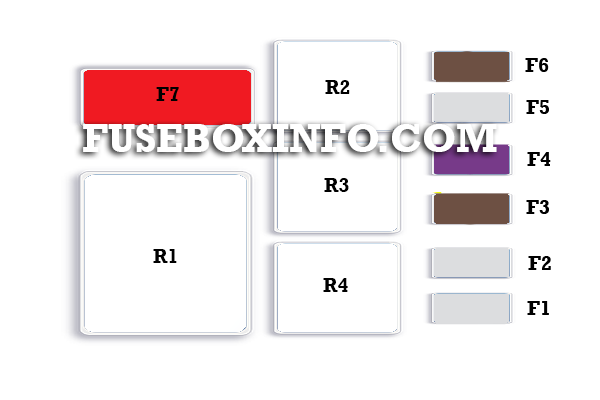

Fuse box 1:
| Fuse N° | Rating | Functions |
| F1 | 2 A | Brake switch (+Battery) |
| F2 | 2 A | Main computer (+Battery) |
| F3 | 7.5 A | Fan |
| F4 | 3 A | Instrument panel |
| F5 | 2 A | Battery computer |
| F6 | 7.5 A | Horn |
| F7 | 50 A | Battery drive train/DC/DC converter |

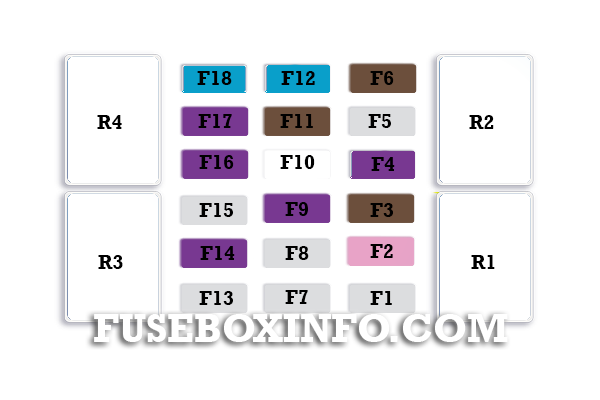

Fuse box 2:
| Fuse N° | Rating | Functions |
| F1 | 2 A | Steering mounted control (left) |
| F2 | 4 A | Main computer (+After ignition) |
| F3 | 15 A | Screenwash pump |
| F5 | 2 A | Instrument panel warning lamps |
| F7 | 2 A | Motor computer |
| F8 | 2 A | Brake switch (+After ignition) |
| F9 | 3 A | USB socket - Lighting for ventilation/heating/demisting buttons, drive selector |
| F11 | 7.5 A | Diagnostic socket |
| F12 | 15 A | Wiper motor (+Battery) |
| F13 | 2 A | Rear left wheel speed sensor |
| F14 | 3 A | Sidelamps front left and rear right - Number plate lamp |
| F15 | 2 A | Sidelamps front right and rear left |
| F16 | 3 A | Right-hand dipped beam headlamp |
| F17 | 3 A | Left-hand dipped beam headlamp |
| F18 | 15 A | Wiper motor (+After ignition) |
