Jeep Cherokee 2020 Fuse Box Info

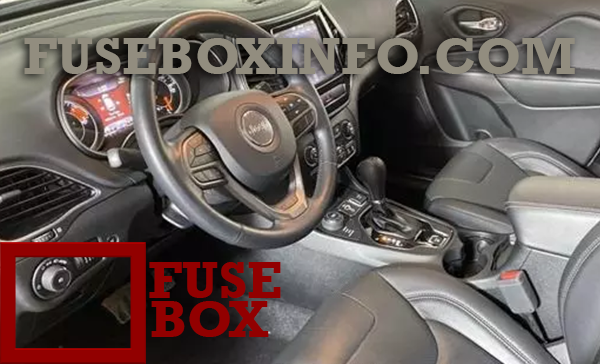

Fuse box location:
The fuse box is in the passenger compartment on the left side dash panel under the instrument panel.

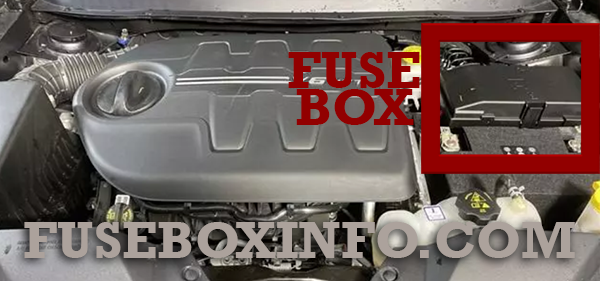

Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 32 | 10A | Interior Lighting |
| 36 | 10A | Intrusion Module/Siren – If Equipped |
| 38 | 20A | Deadbolt All Unlock |
| 43 | 20A | Washer Pump Front |
| 48 | 25A | Fog Lamp Rear Left/Right – If Equipped |
| 49 | 7.5A | Lumbar Support |
| 50 | 7.5A | Wireless Charging Pad – If Equipped |
| 51 | 7.5A | Driver Window Switch/Power Mirrors – If Equipped |
| 53 | 7.5A | UCI Port (USB & AUX) |
| 89 | 10A | Door Locks – Driver Unlock |
| 91 | 7.5A | Left Front Fog Lamp (Low And High Line) |
| 92 | 7.5A | Right Front Fog Lamp (High Line) |
| 93 | 10A | Low Beam Right |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 06 | - | Not Used |
| 07 | 15A | Powertrain Control Mod - PCM (Diesel) / Surge Solenoid Purge Valve (Gas) – If Equipped |
| 08 | 25A | Fuel Injectors (Gas), ECM (Gas), PCM/Fuel Injectors (Diesel) |
| 09 |
15A (Gas) 10A (Diesel) |
Coolant Pump (Gas) – If Equipped UREA Coolant Pump/PCM (Diesel) – If Equipped |
| 10 | 20A | Power Transfer Unit (PTU) – If Equipped |
| 11 | - | Not Used |
| 12 | 10A | Supply And Purging Pump (Diesel) |
| 13 | 10A | Voltage Stability Mod (VSM)/Powertrain Control Mod (PCM)/Engine Control Module (ECM) |
| 14 | 10A | Drivetrain Control Module (DTCM)/Power Take-Off Unit (PTU)/Electric Park Brake (EPB)/RDM/Brake System Module (BSM) – If Equipped/Brake Pedal Switch/Back Up Lamp Switch (Diesel) |
| 15 | - | Not Used |
| 16 | 20A | Ing Coils / Additional Diesel Content |
| 17 | 30A | Brake Vacuum Pump (GAS GMET4/V6 Engines Only) |
| 18 | - | Not Used |
| 19 | 40A | Starter Solenoid |
| 20 | 10A | A/C Compressor Clutch |
| 21 | - | Not Used |
| 22 | 5A | Radiator Fan (PWM) Enable |
| 23 | 50A | Voltage Stability Module (VSM) #2 |
| 24 | 20A | Rear Wiper |
| 25B | 20A | FT/RR Washer |
| 26 | 30A | Fuel Heater (Diesel) |
| 27 | - | Not Used |
| 28 | 15A | Transmission Control Module (TCM/Shifter) |
| 29 | - | Not Used |
| 30 | 10A | Engine Control Module (ECM)/(EPS)/Fuel Pump Relay Feed/(PCM)/Gas Particulate Filter (GPF) |
| 31 | - | Not Used |
| 32 | - | Not Used |
| 33 | - | Not Used |
| 34 | - | Not Used |
| 35 | - | Not Used |
| 36 | - | Not Used |
| 37 | - | Not Used |
| 38 | 60A | Glow Plugs (Diesel) |
| 39 | 40A | HVAC Blower Motor |
| 40 | 20A | Trailer Tow Park Light - If Equipped |
| 41 | 50A | Voltage Stability Module (VSM) #1 |
| 42 | 30A | Trailer Tow Module – If Equipped |
| 43 | 20A | Fuel Pump Motor |
| 44 | 30A | Trailer Tow Receptacle - If Equipped |
| 45 | 30A | Passenger Door Module (PDM) - If Equipped |
| 46 | 25A | Sunroof Control Module - If Equipped |
| 47 | - | Not Used |
| 48 | 30A | Driver Door Module |
| 49 | 30A | Power Inverter (115V/220V A/C) |
| 50 | 30A | Power Liftgate Module |
| 51 | - | Not Used |
| 52 | 30A | Front Wipers |
| 53 | 30A | Brake System Module (BSM) - ECU And Valves |
| 54 | 30A | Body Control Module (BCM) Feed 3 |
| 55 | 10A | Blind Spot Sensors/Rearview Camera, Rear Heated Seat Switch |
| 56 | 15A | Ignition Node Module (IGNM)/KIN/RF Hub/Electric Steering Column Lock (ESCL), Dual USB Port – RR Console |
| 57 | 20A | Trailer Tow Left Stop/Turn Lights - If Equipped |
| 58 | 10A | Occupant Classification Module/VSM/TT Mod/ ESCL |
| 59 | 30A | Drivetrain Control Module (DTCM) If Equipped |
| 60 | 20A | Power Outlet - Center Console |
| 61 | 20A | Trailer Tow Right Stop/Turn Lights - If Equipped |
| 62 | 20A | Windshield de-icer - If Equipped |
| 63 | 20A | Front Heated/Ventilated Seats - If Equipped |
| 64 | 20A | Rear Heated Seats – If Equipped |
| 65 | 10A | In Vehicle Temperature Sensor/Humidity Sensor/Driver Assist System Module (DASM)/Park Assist (PAM) |
| 66 | 15A | HVAC (ECC)/Instrument Panel Cluster (IPC)/ Gateway Module |
| 67 | - | Not Used |
| 68 | - | Not Used |
| 69 | 10A | Transfer Case Switch (TSBM)/Active Grill Shutter (AGS) – If Equipped With Gas Engine |
| 70 | 5A | Intelligent Battery Sensor (IBS) |
| 71 | - | Not Used |
| 72 | 10A | Heated Mirrors (Gas) / PM Sensor (Diesel) |
| 73 | 20A | NOX Sensor #1 & #2 / Trailer Tow Backup (NAFTA & Gas) |
| 74 | 30A | Rear Defroster (EBL) |
| 75 | 20A | Cigar Lighter - If Equipped |
| 76 | 20A | Rear Differential Module (RDM) - If Equipped |
| 77 | 10A | Hands Free Module, Brake Pedal Switch |
| 78 | 10A | Diagnostic Port / Digital TV / TBM |
| 79 | 10A | Integrated Center Stack (ICS)/Electric Park Brake (EPB) SW/CD Mod/Steering Control Mod (SCCM)/HVAC/ Instrument Panel Cluster (IPC) |
| 80 | 20A | Radio |
| 81 | - | Customer Selectable Location For F91 Power Outlet Feed |
| 82 | 5A | Cybersecurity Gateway Module |
| 83 |
20A 30A |
Engine Controller Module (Gas) SCU Module (Diesel) |
| 84 | 30A | Electric Park Brake (EPB) - Left |
| 85 | 15A | (CSWM) Heated Steering Wheel |
| 86 | 20A | Horns |
| 87 | - | Not Used |
| 88 | 10A | Seat Belt Reminder (SBR)/Smart Camera |
| 89 | 15A | Auto Headlamp Leveling (If Equipped) / Headlamp |
| 90 | - | Not Used |
| 91 | 20A | Power Outlet Rear – If Equipped – Customer Selectable |
| 92 | - | Not Used |
| 93 | 40A | Brake System Module (BSM) – Pump Motor |
| 94 | 30A | Electric Park Brake (EPB) – Right |
| 95 | 10A | Sunroof Module / Rain Sensor Module (LRSM) / Electrochromatic Mirror Module (ECMM) / Dual USB Port (Rear)/ Power Outlet Console Illumination / Digital TV |
| 96 | 10A | Occupant Restraint Controller (ORC)/(Airbag) |
| 97 | 10A | Occupant Restraint Controller (ORC)/(Airbag) |
| 98 | 25A | Audio Amplifier/ANC |
| 99 | - | Not Used |
| 100 | - | Not Used |
| CB1 | 30A | Power Seat (Driver) |
| CB2 | 30A | Power Seat (Pass) |
| CB3 | 25A | Power Window |
