Jeep Cherokee 2015 Fuse Box Info
Fuse box location:
The fuse box is in the passenger compartment on the left side dash panel under the instrument panel.
Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 13 | 15A | Low Beam Left |
| 32 | 10A | Interior Lighting |
| 36 | 10A | Intrusion Module/Siren – If Equipped |
| 38 | 20A | Deadbolt All Unlock |
| 43 | 20A | Washer Pump Front |
| 48 | 25A | Fog Lamp Rear Left/Right – If Equipped |
| 49 | 7.5A | Lumbar Support |
| 50 | 7.5A | Wireless Charging Pad – If Equipped |
| 51 | 10A | Driver Window Switch/Power Mirrors – If Equipped |
| 53 | 7.5A | UCI Port (USB & AUX) |
| 89 | 10A | Door Locks – Driver Unlock |
| 91 | 7.5A | Left Front Fog Lamp (Low And High Line) |
| 92 | 7.5A | Right Front Fog Lamp (High Line) |
| 93 | 10A | Low Beam Right |

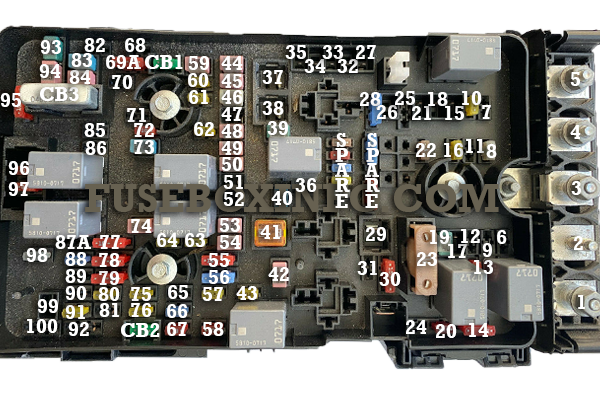

Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 06 | - | Not Used |
| 07 | 15A | Powertrain Control Module - PCM (Diesel Only) |
| 08 | 25A | Engine Control Module (ECM)/Fuel Injection |
| 09 | - | Not Used |
| 10 | 20A | Power Transfer Unit (PTU) – If Equipped |
| 11 | - | Not Used |
| 12 | 20A | Brake Vacuum Pump - If Equipped |
| 13 | 10A | Engine Control Module (ECM) |
| 14 | 10A | Drivetrain Control Module (DTCM) / Power Take-Off Unit (PTU) / Brake System Module (BSM) – If Equipped/ Brake Pedal Switch/Back Up Switch (Diesel Only) |
| 15 | - | Not Used |
| 16 | 20A | Ign Coil (Gas) / Engine Sensor (Diesel) |
| 17 | - | Not Used |
| 18 | - | Not Used |
| 19 | 40A | Starter Solenoid |
| 20 | 10A | A/C Compressor Clutch |
| 21 | - | Not Used |
| 22 | 5A | Radiator Fan |
| 23 | 70A | Body Controller Module (BCM) - Feed 2 |
| 23 | 50A | Voltage Stability Module (VSM) Feed #2 - If Equipped with Stop/ Start Engine Option |
| 24 | 20A | Rear Wiper — If Equipped with Stop/ Start Engine Option |
| 25B | 20A | Front Washer — If Equipped with Stop/ Start Engine Option |
| 26 | 30A | Fuel Heater - Diesel Only |
| 27 | - | Not Used |
| 28 | 15A | Transmission Control Module (TCM) |
| 29 | - | Not Used |
| 30 | 10A | Engine Control Module (ECM)/(EPS)/(PCM) |
| 31 | - | Not Used |
| 32 | - | Not Used |
| 33 | - | Not Used |
| 34 | - | Not Used |
| 35 | - | Not Used |
| 36 | - | Not Used |
| 37 | - | Not Used |
| 38 | - | Not Used |
| 38 | 60A | Glow Plugs - Diesel Only - If Equipped |
| 39 | 40A | HVAC Blower Motor |
| 40 | 20A | Trailer Tow Park Light - If Equipped |
| 40 | 30A | Headlamp Washer Pump - If Equipped |
| 41 | 60A | Body Controller Module (BCM) - Feed 1 |
| 41 | 50A | Voltage Stability Module - Feed 1 - If Equipped with Stop/Start Engine Option |
| 42 | 30A | Trailer Tow Electric Brake Module - If Equipped |
| 43 | 20A | Fuel Pump Motor |
| 44 | 30A | Trailer Tow / 7-Way Connector - If Equipped |
| 45 | 30A | Passenger Door Module (PDM) - If Equipped |
| 46 | 25A | Sunroof - If Equipped |
| 48 | 30A | Driver Door Module - If Equipped |
| 49 | 30A | Power Inverter (115V A/C) - If Equipped |
| 50 | 30A | Power Liftgate - If Equipped |
| 51 | - | Not Used |
| 52 | 30A | Front Wipers - If Equipped with Stop/ Start Engine Option |
| 53 | 30A | Brake System Module & Valves |
| 54 | 30A | Body Control Module (BCM) Feed 3 |
| 55 | 10A | Blind Spot Sensors / Compass / Rearview Camera / Trunk Lamp With Flashlamp Charger - If Equipped |
| 56 | 15A | Ignition Node Module (IGNM)/KIN/RF Hub/ Electric Steering Column Lock (ESL) |
| 57 | 20A | Trailer Tow Lights Left - If Equipped |
| 58 | 10A | Occupant Classification Module/VSM/ESC |
| 59 | 30A | Drivetrain Control Module (DTCM) If Equipped |
| 60 | 20A | Power Outlet - Center Console |
| 61 | 20A | Trailer Tow Lights Right– If Equipped |
| 62 | 20A | Windshield de-icer - If Equipped |
| 63 | 20A | Front Heated/Vented Seats - If Equipped |
| 64 | 20A | Heated Steering Wheel – If Equipped |
| 65 | 10A | In Car Temperature Sensor / Humidity Sensor / Driver Assist System Module (DASM) / Park Assist (PAM) - If Equipped with Stop/Start option |
| 66 | 15A | HVAC (ECC) / Instrument Panel Cluster (IPC) |
| 67 | 10A | In Car Temperature Sensor / Humidity Sensor / Driver Assist System Module (DASM) / Park Assist (PAM) - If Not Equipped with Stop/Start Option |
| 68 | - | Not Used |
| 69 | 10A | Power Transfer Unit Switch (TSBM) / Active Grill Shutter (AGS) - If Equipped with Gas Engine |
| 69A | 10A | Power Transfer Unit Switch (TSBM) - If Equipped with Diesel Engine |
| 70 | 5A | Intelligent Battery Sensor If Equipped with Stop/ Start Engine Option |
| 71 | 20A | HID Headlamp Right if Equipped with Stop/Start Engine Option |
| 72 | 10A | Heated Mirrors - If Equipped |
| 73 | 20A | Trailer Tow Back Up - If Equipped |
| 74 | 30A | Rear Defroster |
| 75 | 20A | Cigar Lighter - If Equipped |
| 76 | 20A | Rear Differential Module (RDM) - If Equipped |
| 77 | 10A | Fuel Door Release/Brake Pedal Switch |
| 78 | 10A | Diagnostic Port |
| 79 | 10A | Integrated Center Stack (ICS) / HVAC / Aux Switch Bank Module (ASBM) / Instrument Panel Cluster (IPC) |
| 80 | 20A | Radio / CD - If Equipped |
| 81 | - | Not Used |
| 82 | - | Not Used |
| 83 | 20A | Engine Controller Module (Gas) |
| 84 | 30A | Brake System Module (BSM) - Pump Motor If Equipped With Diesel Engine |
| 84 | 20A | Electric Park Brake (EPB) - Left |
| 85 | - | Not Used |
| 86 | 20A | Horns - If Equipped With Stop/Start Engine Option |
| 87A | 20A | HID Headlamp Left - If Equipped with Stop/ Start Engine Option |
| 88 | 15A | Collision Mitigation Module (CMM) / Electrochromatic Mirror / Smart Camera Module - If Equipped |
| 89 | 10A | Headlamp Leveling - If Equipped |
| 90 | - | Not Used |
| 91 | 20A | Power Outlet Rear - If Equipped - Customer Selectable |
| 92 | - | Not Used |
| 93 | 40A | Brake System Module (BSM) - Pump Motor |
| 94 | 30A | Electric Park Brake (EPB) - Right |
| 95 | 10A | Electrochromatic Mirror / Rain Sensor / Sunroof - If Equipped / Passenger Window Switch / Power Outlet Console |
| 96 | 10A | Occupant Restraint Controller (ORC) / (Airbag) |
| 97 | 10A | Occupant Restraint Controller (ORC) / (Airbag) |
| 98 | 25A | Audio Amplifier - If Equipped |
| 99 | - | Not Used |
| 100 | - | Not Used |
