Holden Trax 2019 Fuse Box Info

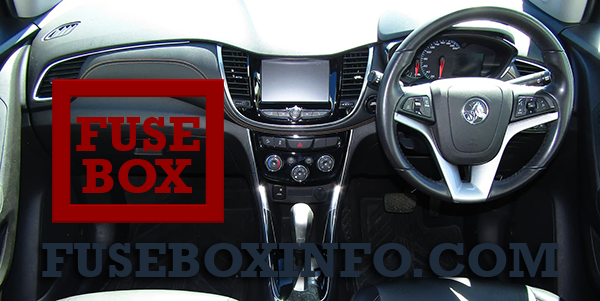

Passenger compartment fuse box location:
The instrument panel fuse box is located behind the glove box.

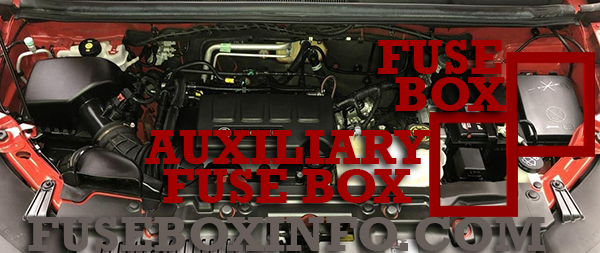

Engine compartment fuse box location:

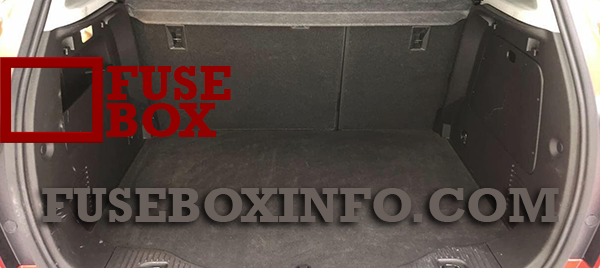

Luggage compartment fuse box location:
The rear compartment fuse box is located in the passenger’s side of the rear compartment.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | BCM 1 |
| 2 | BCM 2 |
| 3 | BCM 3 |
| 4 | BCM 4 |
| 5 | BCM 5 |
| 6 | BCM 6 |
| 7 | BCM 7 |
| 8 | BCM 8 |
| 9 | DLIS |
| 10 | SDM B+ |
| 11 | DLC |
| 12 | HVAC MDL |
| 13 | L/GATE RLY |
| 14 | CGM |
| 15 | LDW Gentex |
| 16 | - |
| 17 | ESCL |
| 18 | PAS/SBZA |
| 19 | BCM RVC |
| 20 | Clock Spring |
| 21 | APO AC/PRNDL |
| 22 | APO DC FRT |
| 23 | - |
| 24 | - |
| 25 | - |
| 26 | - |
| 27 | IPC PTC RLAD |
| 28 | TRLR Feed2 |
| 29 | - |
| 30 | - |
| 31 | IPC B+ |
| 32 | Audio/Nav |
| 33 | TRLR Feed1 |
| 34 | PEPS Module |
| S/B01 | PTC 1 |
| S/B02 | PTC 2 |
| S/B03 | PWR WNDW FRT |
| S/B04 | PWR WNDW Rear |
| S/B05 | Logistic Mode RLY |
| S/B06 | PWR Seat DR |
| S/B07 | - |
| S/B08 | Trailer Interface Module |
| Relays | |
| RLY1 | ACC/RAP |
| RLY2 | L/GATE |
| RLY3 | Spare |
| RLY4 | Blower |
| RLY5 | Logistic Mode |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | Sunroof |
| 2 | OSRVM SW, Rain Sensor, PWR Window Driver |
| 3 | - |
| 4 | - |
| 5 | EBCM Valve |
| 6 | - |
| 7 | ESCL |
| 8 | TCM B+ |
| 9 | - |
| 10 | HDLP Leveling SW, HDLP Leveling MTR LH/RH, Rear Vision Camera ISRVM |
| 11 | Rear Wiper |
| 12 | RR WDW Defog |
| 13 | - |
| 14 | OSRVM Heat |
| 15 | - |
| 16 | Heated Seat Module |
| 17 | TIM |
| 18 | ECM R/C, TCM R/C, FICM R/C |
| 19 | Fuel Pump |
| 20 | - |
| 21 | Fan RLY (AUX BEC) |
| 22 | - |
| 23 | Ignition Coil, Injector Coil |
| 24 | Washer Pump |
| 25 | - |
| 26 | EMS Var-1 |
| 27 | - |
| 28 | - |
| 29 | ECM PT IGN-1, IGN-2 |
| 30 | EMS Var-2 |
| 31 | High Beam LH |
| 32 | High Beam RH |
| 33 | ECM B+ |
| 34 | Horn |
| 35 | A/C Clutch |
| 36 | Front Fog Lamp |
| FU1 | EBCM Pump |
| FU2 | FRT Wiper |
| FU3 | Blower |
| FU4 | IEC R/C |
| FU5 | - |
| FU6 | - |
| FU7 | - |
| FU8 | Cooling Fan Low/Mid |
| FU9 | Cooling Fan High |
| FU10 | EVP |
| FU11 | Starter SOL |
| SP | Spare Fuses |
| Relays | |
| 1 | Run Crank |
| 2 | Fuel Pump |
| 3 | Cooling Fan Mid |
| 4 | - |
| 5 | PT Relay |
| 6 | Cooling Fan High |
| 7 | Starter |
| 8 | Cooling Fan Low |
Engine compartment fuse box (Auxiliary fuse box):
| Fuse/Relay N° | Functions |
| 01 | Electric Vacuum Pump |
| 02 | Cooling Fan 1 |
| 03 | Cooling Fan 2 |
| 04 | - |
Luggage compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | - |
| 2 | - |
| 3 | - |
| 4 | - |
| 5 | - |
| 6 | - |
| 7 | - |
| 8 | - |
| 9 | - |
| 10 | - |
| 11 | - |
| 12 | - |
| 13 | - |
| 14 | - |
| 15 | - |
| 16 | - |
| 17 | - |
| SB1 | - |
| SB2 | - |
| SB3 | DC/AC Inverter |
| SB4 | - |
| SB5 | - |
| Relays | |
| RLY1 | - |
| RLY2 | - |
| RLY3 | - |
| RLY4 | - |
| RLY5 | - |
