Holden Astra 2015 Fuse Box Info

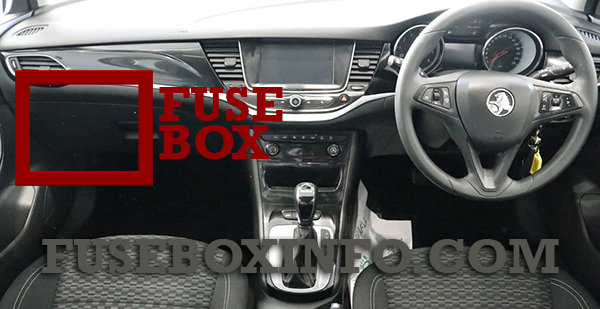

Passenger compartment fuse box location:
The interior fuse box is located behind a cover in the glovebox.

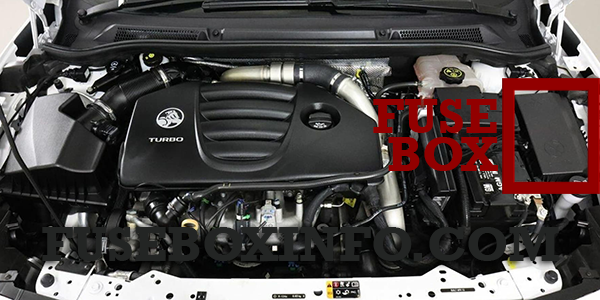

Engine compartment fuse box location:

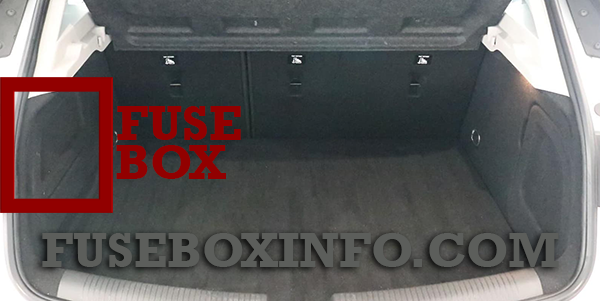

Luggage compartment fuse box location:
The fuse box is on the left side of the load compartment behind a cover.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Displays |
| 2 | Exterior lights/Body control module |
| 3 | Exterior lights/Body control module |
| 4 | Infotainment system |
| 5 | Infotainment system/Instrument |
| 6 | Power outlet/Cigarette lighter |
| 7 | Power outlet |
| 8 | Left low beam/Body control module |
| 9 | Right low beam/Body control module/Airbag module |
| 10 | Door locks/Body control module |
| 11 | Interior fan |
| 12 | - |
| 13 | - |
| 14 | Diagnostic connector |
| 15 | Airbag |
| 16 | Power outlet |
| 17 | Air conditioning system |
| 18 | Logistics |
| 19 | Body control module |
| 20 | Body control module |
| 21 | Instrument panel cluster/Antitheft alarm system |
| 22 | Ignition sensor |
| 23 | Body control module |
| 24 | Body control module |
| 25 | - |
| 26 | Power outlet load compartment (if no load compartment fuse box) |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Engine control module |
| 2 | Lambda sensor |
| 3 | Fuel injection/Ignition system |
| 4 | Fuel injection/Ignition system |
| 5 | - |
| 6 | Mirror heating/Anti-theft alarm system |
| 7 | Fan control/Engine control module/Transmission control module |
| 8 | Lambda sensor/Engine cooling |
| 9 | Rear window sensor |
| 10 | Vehicle battery sensor |
| 11 | Trunk release |
| 12 | Adaptive forward lighting/Automatic light control |
| 13 | ABS |
| 14 | Rear window wiper |
| 15 | Engine control module |
| 16 | Starter |
| 17 | Transmission control module |
| 18 | Heated rear window |
| 19 | Front power windows |
| 20 | Rear power windows |
| 21 | Rear electrical centre |
| 22 | Left high beam (Halogen) |
| 23 | Headlamp washer system |
| 24 | Right low beam (Xenon) |
| 25 | Left low beam (Xenon) |
| 26 | Front fog lights |
| 27 | Diesel fuel heating |
| 28 | Start stop system |
| 29 | Electric parking brake |
| 30 | ABS |
| 31 | Adaptive cruise control |
| 32 | Airbag |
| 33 | Adaptive forward lighting/Automatic light control |
| 34 | Exhaust gas recirculation |
| 35 | Exterior mirror/Rain sensor |
| 36 | Climate control |
| 37 | Canister vent solenoid |
| 38 | Vacuum pump |
| 39 | Central control module |
| 40 | Windscreen washer/Rear window washer system |
| 41 | Right high beam (Halogen) |
| 42 | Radiator fan |
| 43 | Windscreen wiper |
| 44 | Windscreen wiper |
| 45 | Radiator fan |
| 46 | - |
| 47 | Horn |
| 48 | Radiator fan |
| 49 | Fuel pump |
| 50 | Headlamp levelling/Adaptive forward lighting |
| 51 | Air shutter |
| 52 | Auxiliary heater/Diesel engine |
| 53 | Transmission control module/ Engine control module |
| 54 | Vacuum pump/Instrument panel cluster/Heating ventilation/Air conditioning system |
Luggage compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | - |
| 2 | Trailer outlet |
| 3 | Parking assist |
| 4 | - |
| 5 | - |
| 6 | - |
| 7 | Power seat |
| 8 | - |
| 9 | - |
| 10 | - |
| 11 | Trailer module/Trailer socket |
| 12 | Trailer module |
| 13 | Trailer outlet |
| 14 | Rear seat/Electrical folding |
| 15 | - |
| 16 | Inside mirror/Rear view camera |
| 17 | Power outlet |
| 18 | - |
| 19 | Steering wheel heating |
| 20 | Sunroof |
| 21 | Heated front seats |
| 22 | - |
| 23 | - |
| 24 | - |
| 25 | - |
| 26 | Deactivated logistic mode |
| 27 | - |
| 28 | - |
| 29 | - |
| 30 | - |
| 31 | Amplifier/Subwoofer |
| 32 | Active damping system/Lane departure warning |
