Holden Statesman 2012 Fuse Box

Holden Statesman 2012 Fuse Box Info

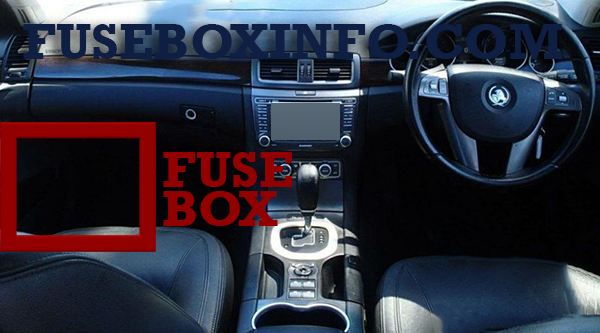

Passenger compartment fuse box location:

The instrument panel fuse box is located in the left hand side kick panel.

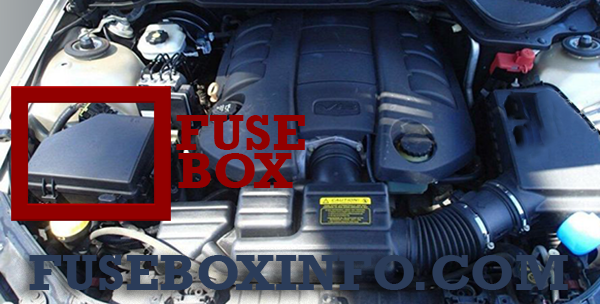

Engine compartment fuse box location:

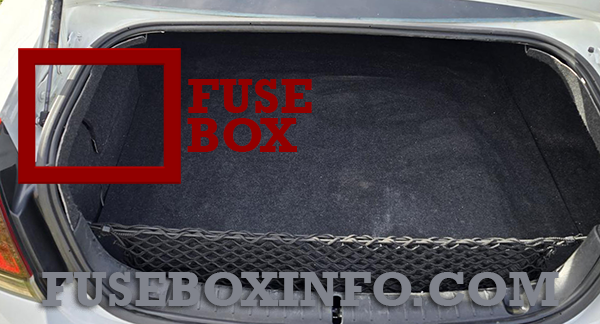

Luggage compartment fuse box location:

The rear fuse box is located on the left hand side of the boot, above the battery.





Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay N° Rating Functions
Circuit breakers
1 20A POWER WINDOWS BATTERY
2 20A POWER WINDOWS RAP
3 20A POWER SEATS
4 - SPARE
Fuses
1 10A AIRBAGS
2

10A

30A

REAR END RELEASE/SEDAN

REAR END RELEASE/ WAGON

3 25A DOOR LOCKS
4 15A INADVERT POWER/LED DIM
5 15A COURTESY LIGHTS/RT FT TURN SIGNAL
6 15A RT RR TURN LIGHT/RT SIDE INDICATOR
7 15A EDI
8 15A LT FT TURN LIGHT/LT SIDE INDICATOR
9 10A BCM LOGIC
10 15A STOP LIGHTS/PARKING ASSIST
11 15A CONSOLE LIGHTING
12 2A IGN SW/THEFT DETERRENT
13 20A REAR LIGHTER
14 20A CONSOLE APO (AUXILIARY POWER OUTLET)
15 2A OUTSIDE MIRROR/RPA OPTION
16 10A PHONE/KEY LK/ISRVM/RAIN SENSOR
17 20A SUNROOF
18 20A REAR WIPER
19 - SPARE
20 - SPARE
21 - SPARE
22 20A FRONT LIGHTER/FRONT APO
23 2A STRG WHEEL ILLUMINATION
24 2A RAP CONTROL PWR WDO
Relays
1 - RAP-RETAIN ACCESSORY POWER RELAY
2 - ALL DOOR LOCK RELAY
3 - PAS DOOR UNLOCK RELAY
4 - SPARE
5 - REAR END RELEASE RELAY
6 - DRIVERS DOOR UNLOCK RELAY
7 - SPARE
8 - ACCESSORY POWER RELAY
9 - FUEL SHUT/OFF SOLENOID RELAY
10 - FUEL SHUT/OFF SOLENOID RELAY
11 - SPARE
12 - SPARE




Engine compartment fuse box:

Fuse/Relay N° Rating Functions
Fuses
FU1 20A BRAKE VACUUM PUMP
FU2 40A REAR DEFOG
FU3 40A ABS MOTOR
FU4 - SPARE
FU5 50A BATT MAIN 1
FU6 - SPARE
FU7 50A BATT MAIN 2
FU8 40A STARTER
FU9 40A HVAC BLOWER MOTOR
FU10 30A FAN 1 ENGINE COOLING
FU11 - SPARE
FU12 30A FAN 2 ENGINE COOLING
F1 10A COMM ENABLE
F2 10A HVAC BATT
F3 10A REVERSE LIGHT
F4 15A FOG LAMPS (FRONT)
F5 25A ABS VALVES
F6 - SPARE
F7 30A HEADLAMP WASH
F8 15A HORN
F9 15A TCM
F10 10/20A LEFT LOW BEAM (BASE/HID)
F11 10A VAPORISER CONTROL MODULE (VCM)
F12 10/20A RIGHT LOW BEAM (BASE/HID)
F13 - SPARE
F14 - SPARE
F15 30A FRONT WIPER
F16 - SPARE
F17 10A THEFT HORN
F18 10A A/C CLUTCH
F19 10A RIGHT HIGH BEAM
F20 - SPARE
F21 15A FRONT WASHER (WSW)
F22 - SPARE
F23 10A LEFT HI BEAM
F24 - SPARE
F25 15A REVERSE LOCKOUT/TOSS/FLEX FUEL SNSR
F26 25A REAL TIME DAMPING
F27 - SPARE
F28 15A ECM 1-V8/ODD COILS-V6
F29 20A EVEN COILS-V6/EVEN INJECTORS & COILS-V8
F30 - SPARE
F31 - SPARE
F32 15A EMISSION 2
F33 15A EMISSION 1
F34 - SPARE
F35 20A ECM 1-V6/ODD INJECTORS & COILS-V8
F36 - SPARE
F37 10A HVAC IGN
F38 10A IGNITION IP/BODY
F39 10A IGNITION ENGINE/FSCM
F40 10A AIRBAGS
F41 - SPARE
F42 10A RIGHT PARKING LIGHT
F43 10A LEFT PARKING LIGHT
Relays
1 - SPARE RELAY
2 - COMMS ENABLE RELAY
3 - A/C CLUTCH COMPRESSOR RELAY
4 - REVERSE LIGHTS RELAY
5 - FOG LIGHT RELAY FRONT
6 - HEADLIGHT LO BEAM RELAY
7 - HEADLIGHT WASH RELAY
8 - RR DEFOG RELAY
9 - FRONT WIPER HIGH RELAY
10 - FRONT WIPER LOW RELAY
11 - HEADLIGHT HI BEAM RELAY
12 - CRANK RELAY
13 - POWER TRAIN RELAY
14 - IGNITION RELAY
15 - FRONT WINDSCREEN WASH RELAY
16 - HORN RELAY
17 - ENGINE COOLING FAN 1 RELAY
18 - PARKING LIGHTS RELAY
19 - ENGINE COOLING FAN 2 RELAY
20 - ENGINE COOLING FAN 3 RELAY
21 - VACUUM PUMP RELAY (Outside the main fuse box)



Engine compartment fuse box (LPG Fuse box) - Next to the main fuse box:

Fuse/Relay N° Rating Functions
Fuses
1 40A VAPORISER HEATER 1
2 40A VAPORISER HEATER 2
3 - SPARE
4 40A VAPORISER HEATER 3
Relays
1 - VAPORISER HEATER 1 RELAY
2 - VAPORISER HEATER 2 RELAY
3 - SPARE
4 - VAPORISER HEATER 3 RELAY



Luggage compartment fuse box:

Fuse/Relay N° Rating Functions
Fuses
1 10A REAR SEAT ENTERTAINMENT
2 30A AMPLIFIER
3 10A DEALER OPTIONS
4 15A RADIO & INFOTAINMENT
5 10A IPC/RFA/DLC/LAMP
6 20A REAR ACCESSORY POWER OUTLET (APO)
7 30A TRAILER
8 10A LIFTGATE MODULE LOGIC
9 15A FUEL SHUT-OFF SOLENOID
10 7.5A RVC SENSOR
11 15A ECM BATT
12 20A FUEL SYSTEM CONTROL MODULE
Relays
1 - SPARE
2 - SPARE
