Holden Trax 2020 Fuse Box Info

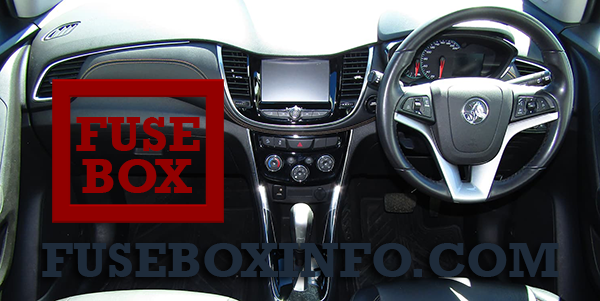

Passenger compartment fuse box location:
The instrument panel fuse box is located behind the glove box.

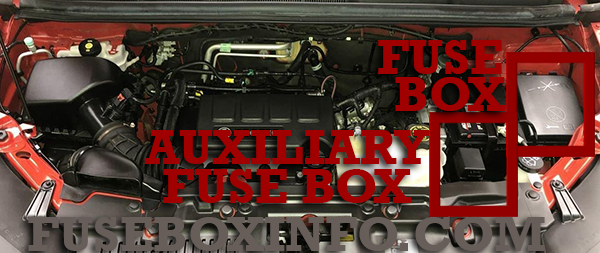

Engine compartment fuse box location:

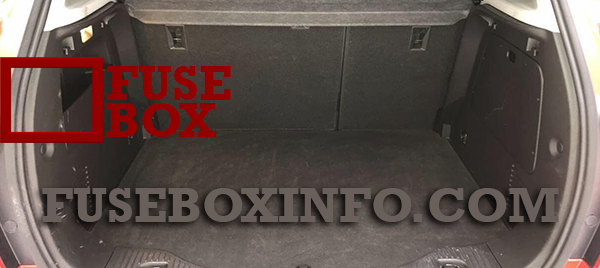

Luggage compartment fuse box location:
The rear compartment fuse box is located in the passenger’s side of the rear compartment.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
Fuse/Relay N° | Functions |
Fuses | |
1 | BCM 1 |
2 | BCM 2 |
3 | BCM 3 |
4 | BCM 4 |
5 | BCM 5 |
6 | BCM 6 |
7 | BCM 7 |
8 | BCM 8 |
9 | DLIS |
10 | SDM B+ |
11 | DLC |
12 | HVAC MDL |
13 | L/GATE RLY |
14 | CGM |
15 | LDW Gentex |
16 | - |
17 | ESCL |
18 | PAS/SBZA |
19 | BCM RVC |
20 | Clock Spring |
21 | APO AC/PRNDL |
22 | APO DC FRT |
23 | - |
24 | - |
25 | - |
26 | - |
27 | IPC PTC RLAD |
28 | TRLR Feed2 |
29 | - |
30 | - |
31 | IPC B+ |
32 | Audio/Nav |
33 | TRLR Feed1 |
34 | PEPS Module |
S/B01 | PTC 1 |
S/B02 | PTC 2 |
S/B03 | PWR WNDW FRT |
S/B04 | PWR WNDW Rear |
S/B05 | Logistic Mode RLY |
S/B06 | PWR Seat DR |
S/B07 | - |
S/B08 | Trailer Interface Module |
Relays | |
RLY1 | ACC/RAP |
RLY2 | L/GATE |
RLY3 | Spare |
RLY4 | Blower |
RLY5 | Logistic Mode |
Engine compartment fuse box:
Fuse/Relay N° | Functions |
Fuses | |
1 | Sunroof |
2 | OSRVM SW, Rain Sensor, PWR Window Driver |
3 | - |
4 | - |
5 | EBCM Valve |
6 | - |
7 | ESCL |
8 | TCM B+ |
9 | - |
10 | HDLP Leveling SW, HDLP Leveling MTR LH/RH, Rear Vision Camera ISRVM |
11 | Rear Wiper |
12 | RR WDW Defog |
13 | - |
14 | OSRVM Heat |
15 | - |
16 | Heated Seat Module |
17 | TIM |
18 | ECM R/C, TCM R/C, FICM R/C |
19 | Fuel Pump |
20 | - |
21 | Fan RLY (AUX BEC) |
22 | - |
23 | Ignition Coil, Injector Coil |
24 | Washer Pump |
25 | - |
26 | EMS Var-1 |
27 | - |
28 | - |
29 | ECM PT IGN-1, IGN-2 |
30 | EMS Var-2 |
31 | High Beam LH |
32 | High Beam RH |
33 | ECM B+ |
34 | Horn |
35 | A/C Clutch |
36 | Front Fog Lamp |
FU1 | EBCM Pump |
FU2 | FRT Wiper |
FU3 | Blower |
FU4 | IEC R/C |
FU5 | - |
FU6 | - |
FU7 | - |
FU8 | Cooling Fan Low/Mid |
FU9 | Cooling Fan High |
FU10 | EVP |
FU11 | Starter SOL |
SP | Spare Fuses |
Relays | |
1 | Run Crank |
2 | Fuel Pump |
3 | Cooling Fan Mid |
4 | - |
5 | PT Relay |
6 | Cooling Fan High |
7 | Starter |
8 | Cooling Fan Low |
Engine compartment fuse box (Auxiliary fuse box):
Fuse/Relay N° | Functions |
01 | Electric Vacuum Pump |
02 | Cooling Fan 1 |
03 | Cooling Fan 2 |
04 | - |
Luggage compartment fuse box:
Fuse/Relay N° | Functions |
Fuses | |
1 | - |
2 | - |
3 | - |
4 | - |
5 | - |
6 | - |
7 | - |
8 | - |
9 | - |
10 | - |
11 | - |
12 | - |
13 | - |
14 | - |
15 | - |
16 | - |
17 | - |
SB1 | - |
SB2 | - |
SB3 | DC/AC Inverter |
SB4 | - |
SB5 | - |
Relays | |
RLY1 | - |
RLY2 | - |
RLY3 | - |
RLY4 | - |
RLY5 | - |
