Holden Colorado 2020 Fuse Box Info

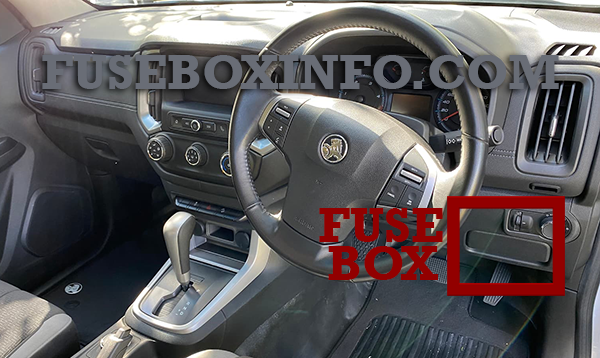

Passenger compartment fuse box location:
The fuse box is behind the instrument panel cap.

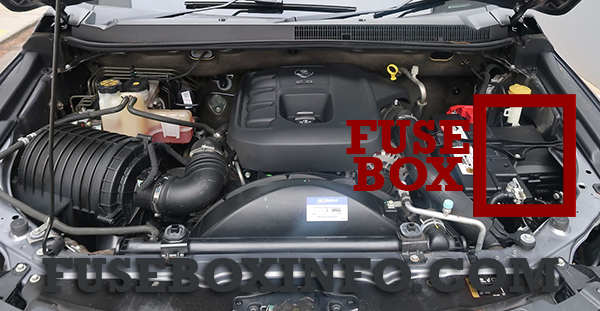

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
Fuse/Relay N° | Rating | Functions |
1 | 20A | Body Control Module (6) |
3 | 20A | Cigarette Lighter (if available) |
6 | 20A | Front and Rear Power Outlets (if available) |
7 | 30A | Body Control Module (8) |
10 | 20A | Radio (if available) |
11 | 2A | Ignition Switch |
12 | 15A | Side Blind Zone (SBZ) (If available) |
13 | 15A | Body Control Module (3) |
14 | 10A | Front A/C Control Module |
15 | 15A | Seat Heated (If available) |
16 | 15A | Body Control Module (1) |
17 | 30A | Front Door Power Window Switch |
19 | 30A | Rear Door Power Window Switch (if available) |
20 | 15A | Body Control Module (4) |
21 | 10A | Spare |
22 | 30A | Power Seat (if available) |
25 | 10A | Sensing and Diagnose Module (SDM) |
26 | 15A | Body Control Module (2) |
27 | 2A | Clock Spring |
28 | 7.5A | Data Link Connector (DLC) |
31 | 10A | Instrument Panel Cluster (IPC), Displays - Radio (Instrument Panel), USB |
33 | 10A | Central Gateway Module (CGM) - Cyber Security |
34 | 30A | Front A/C Blower |
37 | 10A | Front Collision Alert (FCA) / Rain Sensor (if available) |
39 | 10A | Rear View Mirrors (if available) |
53 | 40A | BUS-C (fuses: F12, F33, F37, F39, F40) |
54 | 40A | Accessory (12V) |
RLY45 | C-Enable | |
RLY46 | RAP and Accessory (12V) | |
RLY48 | Run relay |
Engine compartment fuse box:
Fuse/Relay N° | Rating | Functions |
1 | 10A | Compressor A/C Clutch |
2 | Not Used | |
3 | 15A | Electric Power Steering (EPS) (if available) |
4 | Not Used | |
5 | 15A | Horn |
6 | 15A | Front Fog Lamp (if available) |
7 | 10A | High Beam LH |
8 | 10A | High Beam RH |
9 | 7.5A | Engine Control Module - (Diesel) |
10 | 15A | Powertrain Relay (3) – (Diesel) |
11 | 20A | Engine Control Module (1) (Diesel) |
12 | 10A | Powertrain Relay (1) |
13 | 10A | Powertrain Relay (2) |
14 | 15A | Powertrain Relay (4) |
15 | 15A | Run Crank Relay Signal |
16 | 15A | Automatic Transmission Control Module (if available) |
17 | 10A | Transfer Case Module, Head Lamp Leveling, Trailer Interface Module (if available) |
18 | 10A | Power Supply Cluster - A/C - Airbag Module |
19 | 20A | Fuel Pump (Diesel) |
20 | Not Used | |
21 | 30A | Rear Defogger (if available) |
22 | 15A | Outside Rear View Mirror Defogger (if available) |
23 | 15A | Not Used |
24 | 20A | Rear Wiper (SUV) |
25 | 10A | Front / Rear (SUV) Washer Pump |
26 | 10A | Park Assist (if available) |
27 | 5A | Body Control Module |
28 | Auxiliary Lamps Provision (If equipped) | |
29 | 30A | ABS or ESC Module (if available) |
30 | 10A | Horn |
31 | 15A | Body Control Module |
32 | 15A | Engine Control Module (Battery) (Diesel) |
33 | 10A | Communication Wire Between Modules |
34 | 30A | Trailer Hitch Module (if available) - Located near battery positive terminal |
SB01 | 50A | ABS or ESC Module Pump (if available) |
SB02 | 30A | Transfer Case Control Module (4X4) (if available) |
SB03 | 60A | Preheating Glow Plug Module (Diesel) |
SB04 | - | |
SB05 | 30A | Starter Motor Solenoid |
SB06 | 30A | Front Wiper |
SB07 | 30A | Fuel Heater (Diesel) |
SB08 | Not Used (Diesel) | |
SB09 | 30A | Spare |
RLY01 | Starter | |
RLY03 | High Beam | |
RLY05 | Not Used | |
RLY08 | Front Wiper Control | |
RLY09 | Front Wiper Speed | |
RLY10 | Rear Defogger and Outside Rear View Mirror Defogger (if available) | |
RLY11 | Powertrain | |
RLY12 | A/C Clutch | |
RLY13 | Fuel Heater (Diesel) | |
RLY14 | Not Used (Diesel) | |
RLY15 | Not Used | |
RLY18 | Run Crank | |
RLY19 | Fuel Pump (Diesel) |
