Škoda Fabia 2024 Fuse Box Info
Passenger compartment fuse box location:

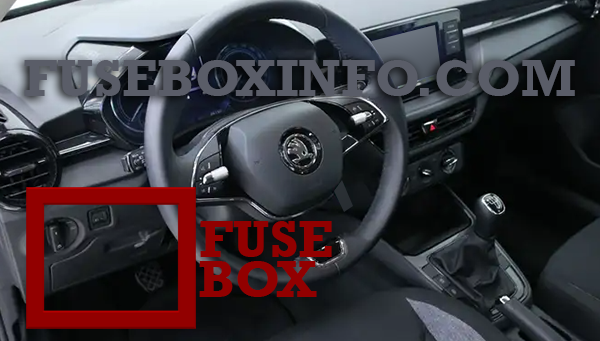

The fuse box is located under the instrument panel behind the coin tray on the driver’s side.

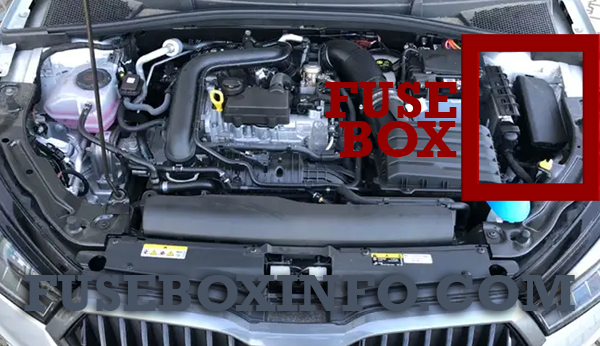

Engine compartment fuse box location:
Fuse Box Diagram | Layout

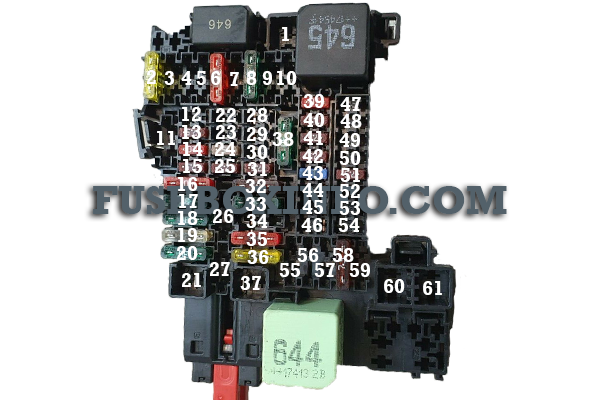

Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Towing device |
| 2 | Headlight – left-hand side |
| 3 | Music amplifier |
| 4 | Headlight washers |
| 6 | Central locking |
| 8 | Climatronic, manual air conditioning |
| 9 | Headlight – right-hand side |
| 10 | Towing device |
| 12 | Steering wheel heating |
| 13 | Light switch, diagnostic socket, rain sensor, control levers under the steering wheel |
| 14 | Windscreen washer system |
| 15 | Instrument cluster, emergency call |
| 16 | Lights - right side |
| 17 | Electric window control – right-hand side |
| 18 | Windscreen wiper |
| 19 | The Infotainment system |
| 20 | Rear window heating |
| 22 | USB charging |
| 23 | Rear view camera |
| 24 | Phone box, GSM antenna, USB port, the Infotainment system display |
| 25 | Control lever under the steering wheel |
| 26 | Databus |
| 27 | Not used |
| 28 | Alarm system sensor |
| 29 | Alarm siren |
| 30 | Ignition (switch box) |
| 31 | Air conditioning |
| 33 | Electric window control – left-hand side |
| 35 | Lights - left side |
| 36 | Horn |
| 37 | Front seat heating |
| 38 | Interior lighting, button lighting, headlight washers, backlighting |
| 39 | Assist systems |
| 40 | Light switch, headlights, headlight levelling, diagnostic connector, reversing switch, control levers under the steering wheel |
| 41 | Interior mirror dimming, exterior mirror adjustment, air conditioning, buttons on the central console |
| 42 | Clutch pedal switch, starting |
| 43 | Rear window wiper |
| 44 | Airbag system, airbag control lamp |
| 45 | Windscreen wiper |
| 48 | Electric steering column lock, KESSY (keyless lock and start system) |
| 50 | USB rear-view mirror socket |
| 52 | Cigarette lighter / 12V socket at front |
| 53 | Ignition key trigger lock, automatic transmission |
| 59 | Exterior mirror heating |
| 60 | Towing device |
| 61 | Towing device |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Engine control unit |
| 2 | Exhaust flap, engine components |
| 3 | Lambda probes |
| 4 | Fuel pump |
| 5 | Radiator fan, oil level and oil temperature sensor, engine components |
| 6 | Engine components |
| 7 | Brake system (vacuum pump) |
| 8 | Engine components |
| 9 | Brake light switch |
| 10 | Data bus, battery status monitoring |
| 12 | Air Conditioning |
| 14 | ESC, engine control system, windscreen heating, engine components |
| 15 | Automatic gearbox |
| 17 | Engine control system |
| 18 | Starter |
| 20 | ESC |
| 21 | ESC |
| 25 | Radiator fan |
| 27 | Radiator fan |
| 29 | Windscreen heating |
