Škoda Fabia 2018 Fuse Box Info
Fuse box location:
The fuse box is located on the bottom of the dash panel behind a cover.

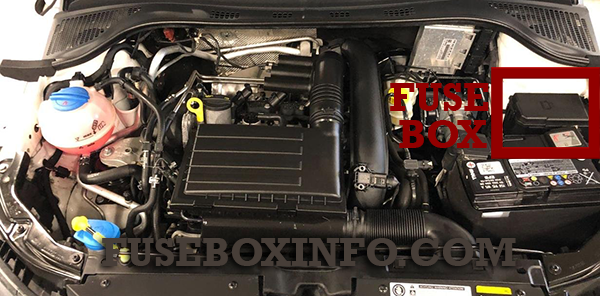

Engine compartment fuse box:

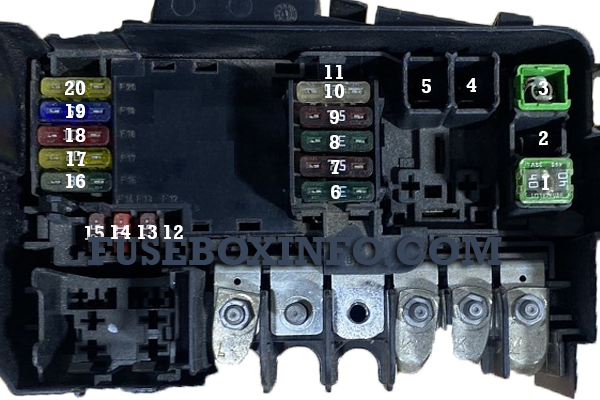

Fuse arrangement in engine compartment.
Fuse Box Diagram | Layout

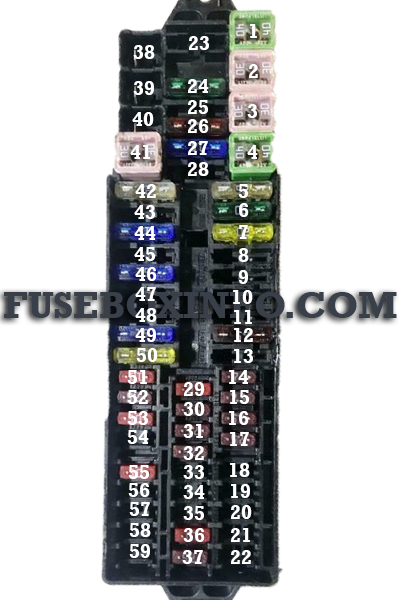

Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Left parking light, parking light, high-mounted brake light |
| 2 | Central locking, front and rear window washer system (only with ACC) |
| 3 | Ignition |
| 4 | Right-hand light, rear fog light, license plate light |
| 5 | Power windows - driver |
| 6 | Interior lighting |
| 7 | Horn |
| 8 | Towing hitch |
| 9 | Operating lever beneath the steering wheel, engine control unit (only without KESSY), automatic gearbox (only without KESSY), selector lever of the automatic transmission (only without KESSY), ESC (only without KESSY), towing equipment (only without KESSY), power steering (only without KESSY) |
| 10 | Power windows - rear left |
| 11 | Headlight cleaning system |
| 12 | Infotainment screen |
| 13 | 12-volt socket in luggage compartment |
| 14 | Operating lever under the steering wheel, light switch, ignition key removal lock (automatic transmission), diagnostic connector, headlight flasher, rain sensor, light sensor, reversing camera |
| 15 | Air conditioning, automatic transmission |
| 16 | Instrument cluster, emergency call |
| 17 | Anti-theft alarm, horn |
| 18 | Databus |
| 19 | Not assigned |
| 20 | Not assigned |
| 21 | Not assigned |
| 22 | Front and rear windshield washer (only without ACC) |
| 23 | Not assigned |
| 24 | Blower fan for the air conditioning system, heating, air conditioning, heating |
| 25 | Not assigned |
| 26 | Heated front seats |
| 27 | Rear window wiper |
| 28 | Not assigned |
| 29 | Airbag |
| 30 | Light switches, reversing light switch, exterior mirrors, feed for the central toolbar, feed for the side toolbar, rear view mirror, air-conditioning system, park assist |
| 31 | Fuel pump, radiator fan, cruise control, front and rear window washer, engine start |
| 32 | Diagnostics connection, headlamp leveling, washing nozzle heating, LED headlights |
| 33 | Clutch pedal switch |
| 34 | USB charge function |
| 35 | “Blind spot” detection |
| 36 | Heated front seats |
| 37 | Radar |
| 38 | Not assigned |
| 39 | Not assigned |
| 40 | Databus |
| 41 | Rear window heating |
| 42 | Power windows - front passenger |
| 43 | Towing hitch |
| 44 | Cigarette lighter, 12-volt power socket |
| 45 | Power windows - rear right |
| 46 | Front and rear window washer, operating lever under the steering wheel |
| 47 | Towing hitch |
| 48 | Towing hitch |
| 49 | Fuel pump |
| 50 | Infotainment |
| 51 | Heating of the external mirror |
| 52 | KESSY |
| 53 | KESSY steering lock |
| 54 | Not assigned |
| 55 | Not assigned |
| 56 | Not assigned |
| 57 | Not assigned |
| 58 | Not assigned |
| 59 | Not assigned |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Radiator fan |
| 2 | Not assigned |
| 3 | ABS or ESC |
| 4 | Not assigned |
| 5 | Not assigned |
| 6 | Automatic gearbox |
| 7 | Engine control system |
| 8 | Windscreen wipers |
| 9 | Battery data module |
| 10 | ABS or ESC |
| 11 | Vacuum pump for the brake system |
| 12 | Injectors, valve for fuel metering, control valve for oil pressure, valve for exhaust gas recirculation cooler, negative pressure pump |
| 13 | Brake pedal switch |
| 14 | Fuel pump, coolant pump |
| 15 | Engine control system |
| 16 | Starter |
| 17 | Engine control unit |
| 18 | Radiator fan, wastegate, oil temperature sensor, valve for activated charcoal filter, valve for intake manifold |
| 19 | Lambda probe |
| 20 | Ignition coils |
