Škoda New Fabia 2022 Fuse Box

Škoda New Fabia 2022 Fuse Box Info



Passenger compartment fuse box location:

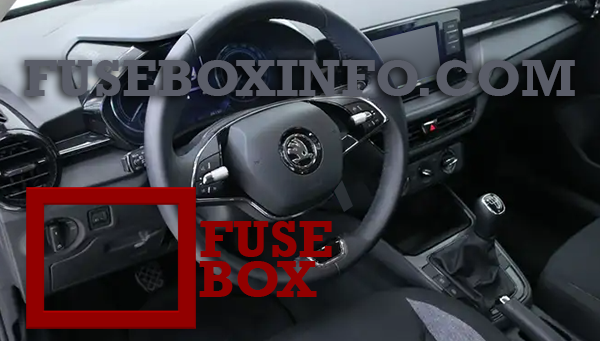

The fuse box is located under the instrument panel behind the coin tray on the driver’s side.

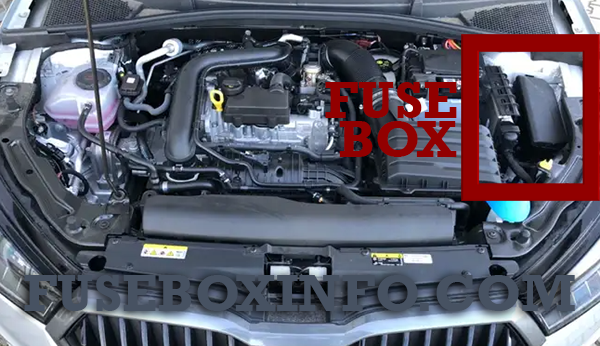

Engine compartment fuse box location:







Fuse Box Diagram | Layout

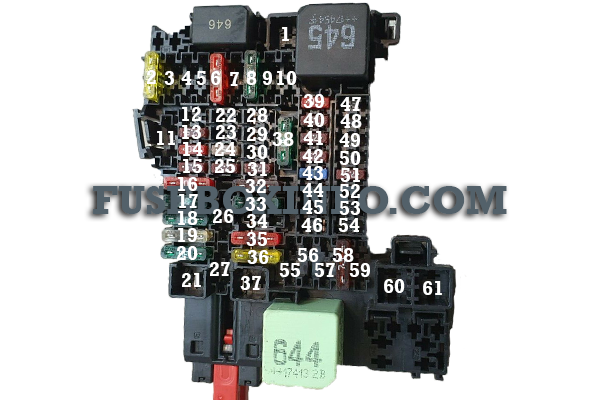

Passenger compartment fuse box:

Fuse/Relay N° Functions
1 Tow hitch
2 LED headlights - left side
3 Music amplifier
4 Headlamp cleaning system
5 Not used
6 Central locking
7 Not used
8 Air conditioning
9 LED headlights - right side
10 Tow hitch
11 Not used
12 Heated steering wheel
13 Light switch, diagnosis connection, rain sensor, control lever under the steering wheel, front windscreen heating
14 Windscreen washer system
15 Instrument cluster, emergency call
16 Light - right side
17 Electric windows - right side
18 Windscreen wiper
19 Infotainment
20 Heated rear window
21 Not used
22 Not used
23 Rear view camera
24 Phonebox, GSM antenna, USB connection, Infotainment screen
25 Control lever under the steering wheel
26 Databus
27 Not used
28 Alarm system sensor
29 Alarm system horn
30 Ignition (ignition lock)
31 Air conditioning, heating
32 Not used
33 Electric windows - left side
34 Not used
35 Light - left side
36 Horn
37 Heating of the front seats
38 Interior lighting, key lighting, headlight cleaning system, ambient lighting
39 Assist systems
40 Light switch, headlights, headlight levelling, diagnostic connection, reversing light switch, control lever under the steering wheel
41 Interior mirror dimming, exterior mirror adjustment, air conditioning, buttons in the center console
42 Clutch pedal switch, engine start
43 Rear window wiper
44 Airbag system, airbag control lamp
45 Windscreen wiper
46 Not used
47 Not used
48 Electric steering column lock, Kessy (keyless lock and start system)
49 Not used
50 USB-Connections at the back, USB-Connection on the interior mirror
51 Not used
52 Cigarette lighter / 12 volt socket in front
53 Ignition key trigger lock, automatic transmission
54 Not used
55 Not used
56 Manual air conditioning, heating
57 Not used
58 Windscreen washer system
59 Exterior mirror heating
60 Tow hitch
61 Tow hitch

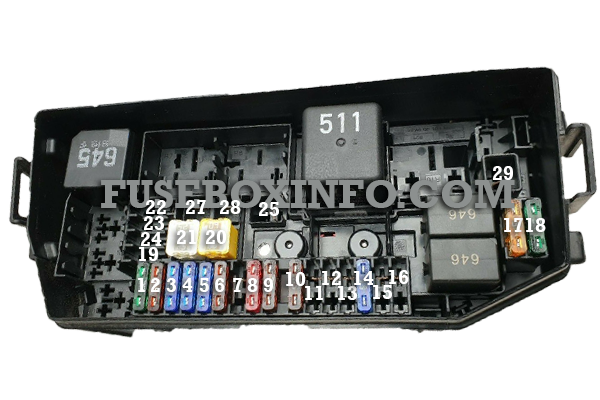

Engine compartment fuse box:

Fuse/Relay N° Functions
1 Engine control unit
2 Exhaust flap, radiator louvre, engine components
3 Lambda probes
4 Fuel pump
5 Radiator fan, oil level and oil temperature sensor, engine components
6 Engine components
7 Brake system (vacuum pump)
8 Engine components
9 Brake light switch
10 Data bus, BCM unit, vehicle battery status monitoring
11 Not used
12 Air Conditioning
13 Not used
14 ESC, engine control system, windscreen heating, engine components
15 Automatic gearbox
16 Not used
17 Engine control system
18 Starter
19 Not used
20 ESC
21 ESC
22 Not used
23 Not used
24 Not used
25 Radiator fan
27 Radiator fan
28 Not used
29 Windscreen heating
