Škoda Kamiq 2024 Fuse Box Info

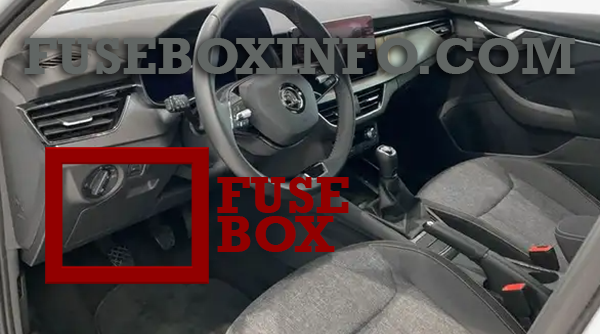

Passenger compartment fuse box location:
The fuse box is located under the instrument panel behind the coin tray on the driver’s side (LHD), The fuse box is located behind the glove box (RHD).

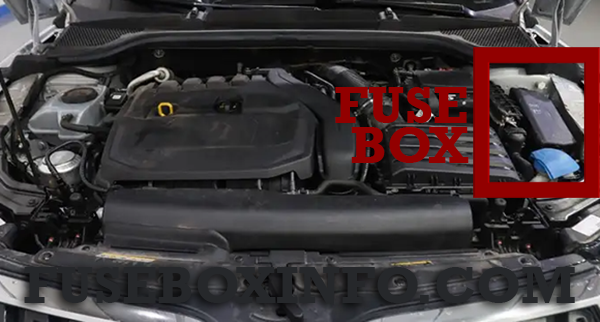

Engine compartment fuse box location:
Fuse Box Diagram | Layout

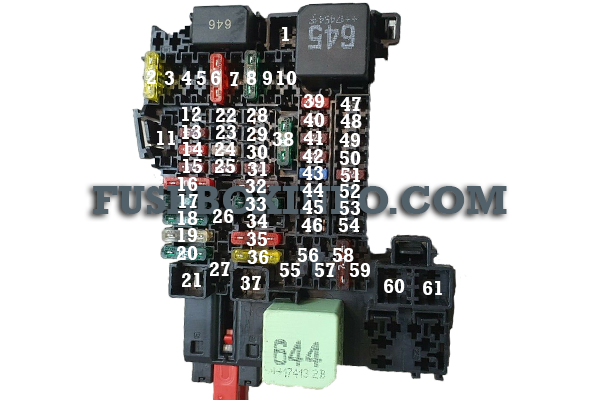

Passenger compartment fuse box:
Fuse/Relay N° | Functions |
1 | Towing device |
2 | LED headlight – left-hand side |
3 | Music amplifier |
4 | Headlight washers |
5 | Sliding/tilting roof |
6 | Central locking, windscreen washer, rear wiper |
7 | Rear seat heating |
8 | Climatronic, manual air conditioning |
9 | LED headlight – right-hand side |
10 | Towing device |
11 | Electrically operated boot lid |
12 | Steering wheel heating |
13 | Light switch, diagnostic socket, rain sensor, control lever under the steering wheel, windscreen heater |
14 | Windscreen washer system |
15 | Instrument cluster, emergency call |
16 | Lights - right side |
17 | Electric window control – right-hand side |
18 | Windscreen wipers |
19 | The Infotainment system |
20 | Rear window heating |
22 | USB charging |
23 | Rear view camera |
24 | Phone box, GSM antenna, USB port, the Infotainment system display |
25 | Control lever under the steering wheel |
26 | Databus |
27 | Suspension adjustment (adaptive chassis) |
28 | Alarm system sensor |
29 | Alarm siren |
30 | Ignition (switch box) |
31 | Air conditioning |
32 | Passenger's seat belt retractor |
33 | Electric window control – left-hand side |
34 | Driver's seat belt retractor |
35 | Lights - left side |
36 | Horn |
37 | Front seat heating |
38 | Interior lighting, button lighting, headlight washers, backlighting, manual air conditioning |
39 | Assist systems |
40 | Light switch, headlights, headlight levelling, diagnostic connector, reversing switch, control levers under the steering wheel |
41 | Interior mirror dimming, exterior mirror adjustment, air conditioning |
42 | Clutch pedal switch, starting |
43 | Rear window wiper |
44 | Airbag system, airbag control lamp |
45 | Windscreen wipers |
46 | Rear seat heating |
48 | Electric steering column lock, KESSY (keyless lock and start system) |
50 | USB rear-view mirror socket |
52 | Cigarette lighter / 12V socket at front |
53 | Ignition key trigger lock, automatic transmission |
54 | 12V socket in the boot |
59 | Wing mirrors heating, washer nozzles heating |
60 | Towing device |
61 | Towing device |

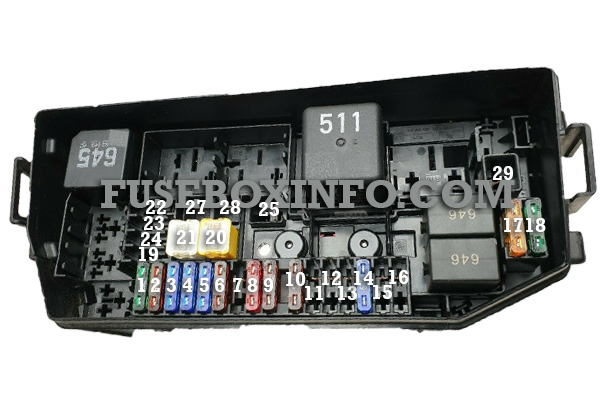

Engine compartment fuse box:
Fuse/Relay N° | Functions |
1 | Engine control unit |
2 | Exhaust flap, water pump, engine components |
3 | Lambda probes |
4 | Fuel pump |
5 | Radiator fan, fill pressure regulator, oil temperature and quantity sensor, engine components |
6 | Crankcase breather, engine components |
7 | Brake system (vacuum pump) |
8 | Fuel pump, engine components |
9 | Brake light switch |
10 | Data bus, battery status monitoring |
12 | Air Conditioning |
14 | ESC, engine control system, engine components |
15 | Automatic gearbox |
17 | Engine control system |
18 | Starter |
20 | ESC |
21 | ESC |
25 | Radiator fan |
27 | Radiator fan |
29 | Windscreen heating |
