Škoda Kushaq 2026 Fuse Box Info

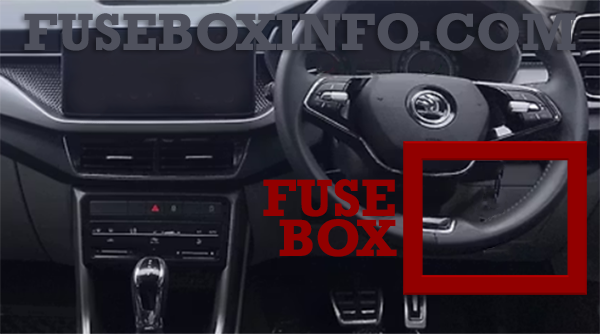

Passenger compartment fuse box location:
The fuse box is located at the right side of the steering column at the bottom of the instrument panel.

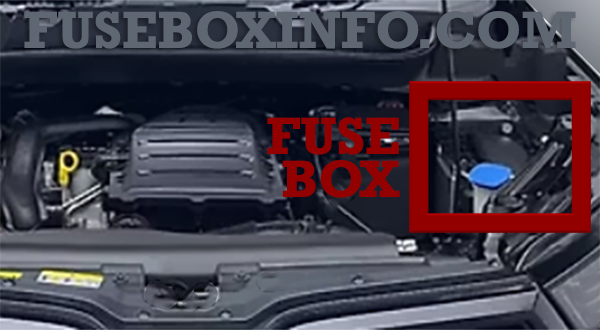

Engine compartment fuse box location:
Fuse Box Diagram | Layout

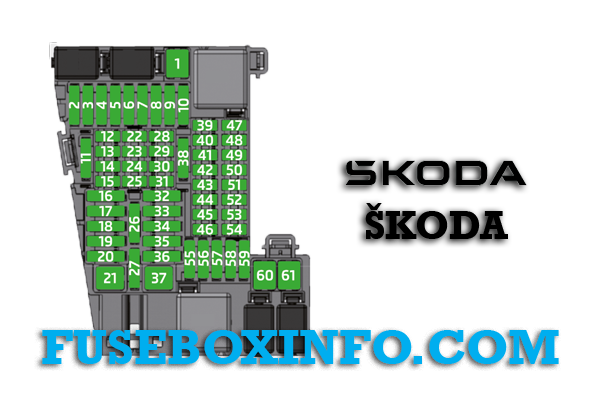

Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 3 | Music amplifier |
| 5 | Sunroof |
| 6 | Central locking |
| 7 | Seat ventilation |
| 12 | Rear view camera |
| 13 | Light switch, diagnosis connection, rain sensor, control lever under the steering wheel |
| 14 | Windscreen wipers and washers |
| 15 | Instrument cluster, telemetry control unit |
| 16 | Lights |
| 17 | Electric window controls (the right-hand side of the vehicle) |
| 18 | Windscreen wipers |
| 19 | The Infotainment system |
| 20 | Rear window heating |
| 26 | Data bus |
| 28 | USB sockets, wireless phone charging |
| 29 | Control lever under the steering wheel |
| 30 | Ignition (ignition lock, starter button) |
| 31 | Air conditioning, heating |
| 32 | Electric steering column lock, keyless lock and start system |
| 33 | Electric window controls (the left-hand side of the vehicle) |
| 34 | 12V socket |
| 35 | Lights |
| 36 | Horn |
| 37 | Climatronic |
| 38 | Interior lighting, button lighting, backlighting, manual air conditioning, heating |
| 39 | Parking aid, cruise control system |
| 40 | Light switch, headlights, headlight levelling, diagnostic socket, reversing light switch, control lever under the steering wheel, interior mirror dimming |
| 41 | Exterior mirror adjustment, electric power windows – driver |
| 42 | Clutch pedal switch, engine starting |
| 43 | Rear window wiper |
| 44 | Airbag system, airbag control lamp |
| 45 | Sunroof |
| 46 | Cooling system |
| 50 | USB sockets |
| 53 | Ignition key trigger lock, automatic gearbox |
| 58 | Windscreen washer system |
| 61 | Manual air conditioning / heater |

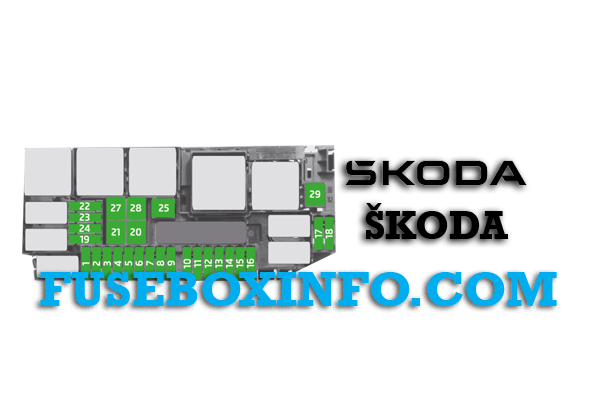

Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Engine control unit |
| 2 | Coolant pump |
| 3 | Lambda probes |
| 4 | Fuel pump |
| 5 | Radiator fan, oil level and oil temperature sensor |
| 6 | Ignition coils |
| 7 | Brake system (vacuum pump) |
| 8 | Fuel injection |
| 9 | Brake light switch |
| 10 | 12V vehicle battery monitoring |
| 12 | Air conditioning |
| 14 | ESC, engine control system, engine components |
| 15 | Automatic gearbox |
| 17 | Engine control system |
| 18 | Starter |
| 20 | ESC |
| 21 | Radiator fan |
