Pontiac GTO 2005 Fuse Box Info
Passenger compartment fuse box location:
The instrument panel fuse box is located under the driver’s side of the instrument panel.

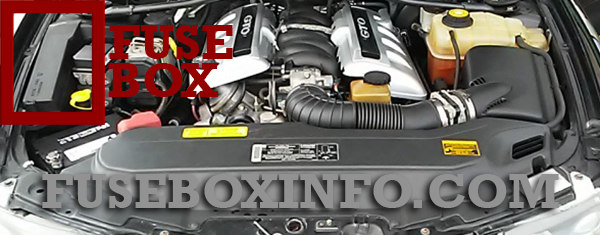

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Functions |
| Fuses | |
| FLASHER UNIT |
Hazard Warning Flashers |
| POWER WINDOWS |
Power Window Switches |
| POWER SEATS |
Power Seat Controls |
| FRONT WIPER WASHER |
Front Windshield Wiper Washer |
| PARK LAMPS | Parking Lamps |
| STOP LAMPS | Stop Lamps |
| INTERIOR ILLUM. |
Interior light Controls |
| HAZARD WARNING |
Hazard Warning Flashers |
| SPARE | Spare |
| HORN | Horn |
| IGNITION | Ignition Switch |
| INSTRUMENT ILLUM. |
Instrument Panel Lighting |
| TURN SIGNAL, BACK UP LAMPS |
Turn Signal Lamp, Back-Up Lamps |
| HVAC CONT. HEAT, REAR WINDOW, INSTRUMENTS | Heater Controls, Rear Window, Trip Computer |
| CIGAR LIGHTER |
Cigarette Lighter |
| CRUISE CONT. POWER MIRRORS | Cruise Control, Power Mirror |
| RADIO, CELL PHONE |
Radio System, Cell Phone |
| ACC SOCKET | Accessory Power Outlet |
| SPARE | Spare |
| ENG. CONT. SIGNAL |
Engine Control Signal |
| POWER DOOR LOCKS, WINDOWS & THEFT HORN | Power Door Locks, Power Windows, Theft System, Horn |
| INSTRUMENTS | Instruments |
| SPARE | Spare |
| RADIO & CELL PHONE |
Radio System, Cell Phone |
| SUB WOOFER & AMPLIFIER | Sub Woofer and Amplifier |
| SPARE | Spare |
| AIRBAG | Airbag |
| ABS & TRACTION CONT. |
Anti-Lock Brake System, Traction Control System |
| Relays | |
| ACC RELAY | Accessory Power Outlet |
| IGNITION RELAY |
Ignition Switch |
| POWER WINDOW RELAY |
Power Windows |
| BLOWER INHIBIT RELAY |
Blower |
| PARK LAMPS RELAY |
Parking Lamps |
| SPARE | Spare |
| INTERIOR ILLUM RELAY |
Interior Light Controls |
| ECM/TCM CONTROL RELAY 1 | Engine Control Module, Transmission Control Module 1 |
| ECM/TCM CONTROL RELAY 2 | Engine Control Module, Transmission Control Module 2 |
| SPARE | Spare |
Engine compartment fuse box:
| Fuse/Relay Name | Functions |
| Fuses | |
| INJ/IGN | Fuel Injectors and Ignition Modules |
| INJ/IGN | Fuel Injectors and Ignition Modules |
| ENG SENSORS |
Engine Sensors |
| AUTO TRANS | Automatic Transmission |
| LH HEADLAMP | Left Headlamp |
| RH HEADLAMP |
Right Headlamp |
| ENG. CONT. BCM |
Engine, Body Control Module |
| FUEL PUMP | Fuel Pump |
| RAD FAN 1 F/L | Engine Cooling Fan 1 |
| BLOWER F/L | Blower Fan |
| MAIN F/L | Main |
| ENGINE F/L | Engine |
| ABS F/L | Anti Lock Brakes |
| LIGHTING F/L | Lighting |
| RAD FAN 2 F/L | Engine Cooling Fan 2 |
| REAR WINDOW |
Heated Rear Window |
| SPARE | Spare |
| SPARE | Spare |
| ABS/TCS | Anti-lock Brake System, Traction Control System |
| Relays | |
| FUEL PUMP RELAY |
Fuel Pump |
| FOG LAMP CANCEL RELAY |
Fog Lamp Cancel |
| FOG LAMP RELAY |
Fog Lamp |
| BTSI RELAY | Brake Transmission Shift Interlock |
| HIGH BEAM RELAY |
High-Beam Headlamp |
| DAYTIME RUNNING LAMP RELAY |
Daytime Running Lamps |
| LOW BEAM RELAY |
Low-Beam Headlamp |
| A/C RELAY | Air Conditioning |
| HORN RELAY | Horn |
| ENGINE COOL FAN 2 RELAY |
Engine Cooling Fan 2 |
| ENGINE COOL FAN 1 RELAY |
Engine Cooling Fan 1 |
| ENGINE COOL FAN 3 RELAY |
Engine Cooling Fan 3 |
| ENGINE CONT. RELAY |
Engine Controls |
| HEATED REAR WINDOW RELAY |
Rear Window Defogger |
| BLOWER RELAY |
Blower |
| START RELAY | Start |
