Pontiac G6 2005 Fuse Box Info

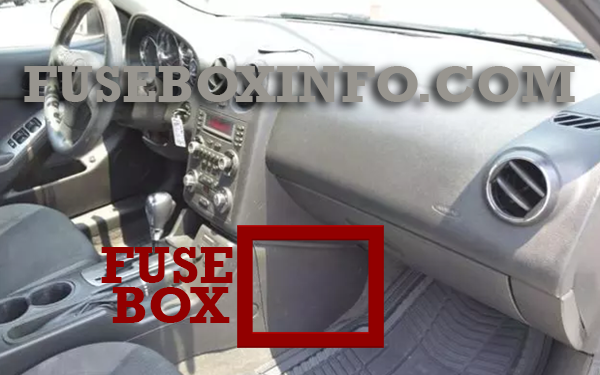

Passenger compartment fuse box location:
The instrument panel fuse box is located on the passenger’s side of the center console, to the left of the glove box near the floor.

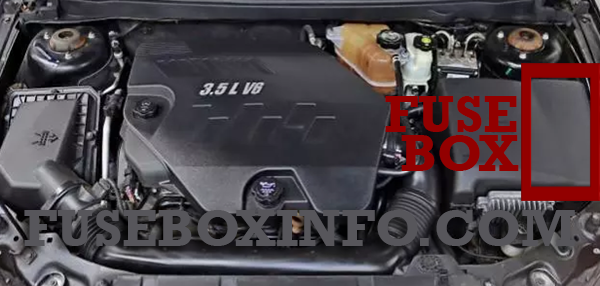

Engine compartment fuse box location:

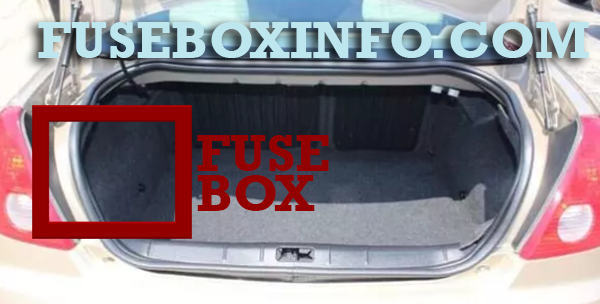

Luggage compartment fuse box location:
The rear compartment fuse box is located in the trunk of the vehicle, on the driver side of the rear cargo area.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Functions |
| POWER MIRRORS |
Power Mirrors |
| EPS | Electric Power Steering |
| RUN/CRANK | Run, Crank |
| HVAC BLOWER HIGH |
Heating Ventilation Air Conditioning Blower - High |
| CLUSTER/ THEFT |
Instrument Panel Cluster, Theft Deterrent System |
| ONSTAR | OnStar® |
| NOT INSTALLED |
Blank |
| AIRBAG (IGN) | Airbag (Ignition) |
| HVAC CTRL (BATT) |
Heating Ventilation Air Conditioning Control (Battery) |
| PEDAL | Pedal |
| WIPER SW | Wiper Switch |
| IGN SENSOR | Ignition Sensor |
| NOT INSTALLED |
Blank |
| NOT INSTALLED |
Blank |
| RADIO | Audio System |
| INTERIOR LIGHTS |
Interior Lamps |
| NOT INSTALLED |
Blank |
| POWER WINDOWS |
Power Windows |
| HVAC CTRL (IGN) |
Heating Ventilation Air Conditioning Control (Ignition) |
| HVAC BLOWER |
Heating Ventilation Air Conditioning Blower |
| DOOR LOCK | Door Locks |
| ROOF/HEAT SEAT |
Sunroof, Heated Seat |
| NOT INSTALLED |
Blank |
| NOT INSTALLED |
Blank |
| AIRBAG (BATT) |
Airbag (Battery) |
| SPARE FUSE HOLDER |
Spare Fuse Holder |
| SPARE FUSE HOLDER |
Spare Fuse Holder |
| SPARE FUSE HOLDER |
Spare Fuse Holder |
| SPARE FUSE HOLDER |
Spare Fuse Holder |
| FUSE PULLER | Fuse Puller |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | Air Conditioner Clutch |
| 2 | Electronic Throttle Control |
| 3 | Ignition 1 |
| 4 | Transaxle |
| 5 | Injector |
| 6 | Emission |
| 7 | Left Headlamp Low Beam |
| 8 | Horn |
| 9 | Right Headlamp Low Beam |
| 10 | Front Fog Lamps |
| 11 | Left Headlamp High Beam |
| 12 | Right Headlamp High Beam |
| 13 | Powertrain Control Module |
| 14 | Windshield Wiper |
| 15 | Anti-lock Brake System |
| 16 | Powertrain Control Module Ignition 1 |
| 17 | Cooling Fan 1 |
| 18 | Cooling Fan 2 |
| 19 | Run Relay |
| 20 | Body Control Module 1 |
| 21 | Body Control Module Run/Crank |
| 22 | Electrical Center 1 |
| 23 | Electrical Center 2 |
| 24 | Anti-lock Brake System |
| 25 | Body Control Module 2 |
| 26 | Starter |
| 42 | Daytime Running Lamps |
| 44 | Stop Lamp |
| Relays | |
| 28 | Cooling Fan 1 |
| 29 | Cooling Fan Series/Parallel |
| 30 | Cooling Fan 2 |
| 31 | Starter |
| 32 | Run/Crank |
| 33 | Powertrain |
| 34 | Air Conditioning Clutch |
| 35 | High Beam |
| 36 | Front Fog Lamps |
| 37 | Horn |
| 38 | Low Beam |
| 39 | Windshield Wiper 1 |
| 40 | Windshield Wiper 2 |
| 43 | Daytime Running Lamps |
| 45 | Stop Lamp |
| Diodes | |
| 27 | Wiper |
| Miscellaneous | |
| 41 | Electric Power Steering |
Luggage compartment fuse box:
| Fuse/Relay N° | Functions |
| Fuses | |
| 1 | Not Used |
| 2 | Driver Seat Controls |
| 3 | Not Used |
| 4 | Not Used |
| 5 | Emission 2 |
| 6 | Park Lamps |
| 7 | Not Used |
| 8 | Not Used |
| 9 | Sliding Panel Roof |
| 10 | Sunroof Controls |
| 11 | Not Used |
| 12 | Not Used |
| 13 | Audio Amplifier |
| 14 | Heated Seat Controls |
| 15 | Not Used |
| 16 | Remote Keyless Entry System, XM Satellite Radio, Rear Seat Entertainment System, Homelink |
| 17 | Back-up Lamps |
| 18 | Not Used |
| 19 | Not Used |
| 20 | Cigarette Lighter, Auxiliary Power Outlet |
| 21 | Not Used |
| 22 | Trunk |
| 23 | Rear Defog |
| 24 | Not Used |
| 25 | Fuel Pump |
| Relays | |
| 26 | Rear Window Defogger |
| 27 | Park Lamps |
| 28 | Not Used |
| 29 | Not Used |
| 30 | Not Used |
| 31 | Not Used |
| 32 | Not Used |
| 33 | Back-up Lamps |
| 34 | Not Used |
| 35 | Not Used |
| 36 | Trunk |
| 37 | Fuel Pump |
| 38 (Diode) | Cargo Lamp |
