Pontiac Vibe 2009 Fuse Box Info

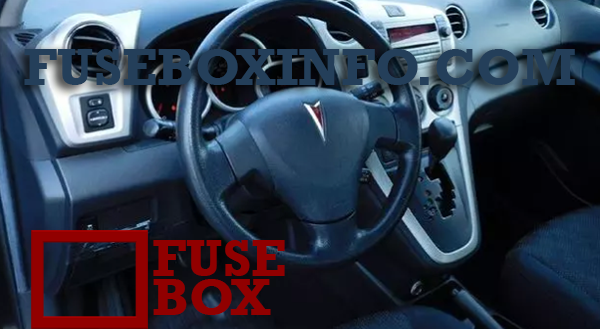

Passenger compartment fuse box location:
The fuse box is located under the instrument panel on the driver side of the vehicle.

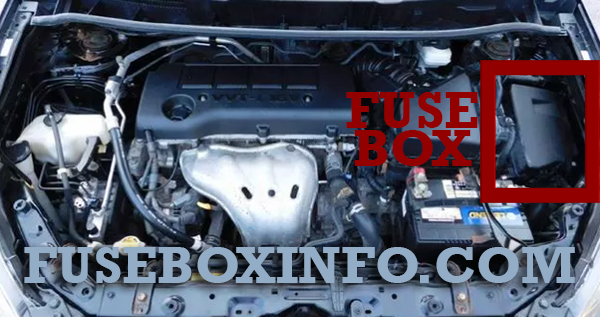

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Parking Lamps, License Plate Lamps, Taillamp, Multiport Fuel Injection System/ Sequential Multiport Fuel Injection System, Instrument Panel Lights |
| 2 | Switch Illumination |
| 3 | Power Windows |
| 4 | Power Windows |
| 5 | Power Windows |
| 6 | Sunroof |
| 7 | Cigarette Lighter, Accessory Power Outlet |
| 8 | Outside Rearview Mirrors, Audio System, Main Body Engine Control Unit (ECU), Clock, Brake Transmission Shift Interlock |
| 9 | Empty |
| 10 | Empty |
| 11 | Airbag System, Multiport Fuel Injection System/ Sequential Multiport Fuel Injection System, Front Passenger Occupant Classification System |
| 12 | Gages and Meters |
| 13 | Air Conditioning System, Rear Window Defogger |
| 14 | Windshield Wipers |
| 15 | Rear Window Wipers |
| 16 | Windshield Washer |
| 17 | Main Body ECU, Electric Power Steering, Electric Cooling Fans, Brake Transmission Shift Interlock, Antilock Braking System (ABS), Multiport Fuel Injection System/Sequential Multiport Fuel Injection System, Tire Pressure Monitoring System (TPMS), Vehicle Stability Control System |
| 18 | Back-up Lamps, Charging System, Rear Window Defogger |
| 19 | Onboard Diagnosis System |
| 20 | Stoplamps, Center High-Mounted Stoplamps (CHMSL), ABS, Vehicle Stability Control System, Multiport Fuel Injection System/Sequential Multiport Fuel Injection System, Brake Transmission Shift Interlock |
| 21 | Power Door Lock System |
| 22 | Outside Rearview Mirrors, Audio System, Main Body ECU, Clock, Brake Transmission Shift Interlock, Cigarette Lighter |
| 23 | All-Wheel Drive System |
| 24 | Front Foglamps |
| 25 | Ignition, Outside Rearview Mirrors, Audio System, Main Body ECU, Clock, Brake Transmission Shift Interlock, Cigarette Lighter |
| 26 | Rear Window Defogger, Heated Mirrors, Multiport Fuel Injection System/Sequential Multiport Fuel Injection System |
| 27 | Power Windows |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Electric Cooling Fans |
| 2 | Electric Cooling Fans |
| 3 | Antilock Braking System (ABS), Vehicle Stability Control System |
| 4 | ABS, Vehicle Stability Control System |
| 5 | Air Conditioning System |
| 6 | Charging System |
| 7 | Electric Power Steering |
| 8 | Emission Control System Main, Horn, Ignition 2 |
| 9 | Headlamp Main |
| 10 | Emission Control System 2 |
| 11 | Multiport Fuel Injection System/ Sequential Multiport Fuel Injection System |
| 12 | Driver Side Headlamp |
| 13 | Passenger Side Headlamp |
| 14 | Driver Side Low-Beam Headlamp, Front Foglamps |
| 15 | Passenger Side Low-Beam Headlamp |
| 16 | Multiport Fuel Injection System/Sequential Multiport Fuel Injection System |
| 17 | Turn Signal Lamps, Hazard Lamps |
| 18 | Charging System |
| 19 | Starting System, Multiport Fuel Injection System/ Sequential Multiport Fuel Injection System |
| 20 | Starting System, Multiport Fuel Injection System/ Sequential Multiport Fuel Injection System |
| 21 | Empty |
| 22 | Starting System |
| 23 | Engine Immobilizer System |
| 24 | Main Body ECU, Gages, Daytime Running Lights (DRL), Air Conditioning System, Wireless Remote Control, Theft Deterrent System |
| 25 | Audio System |
| 26 | Interior Lamps, Personal Lamps, Clock |
| 27 | Spare |
| 28 | Spare |
| 29 | Spare |
| 30 | Audio System |
| 31 | OnStar® |
| 32 | Multiport Fuel Injection System/Sequential Multiport Fuel Injection System, Horn, Emission Control System 1, Emission Control System 2 |
| 33 | Horn |
| 34 | Multiport Fuel Injection System/Sequential Multiport Fuel Injection System, Horn, Ignition, Meter |
| 35 | PTC Heater 1 |
| 36 | PTC Heater 3 |
| 37 | Air Conditioning Inverter |
