Opel Rocks-e 2022 Fuse Box

Opel Rocks-e 2022 Fuse Box Info

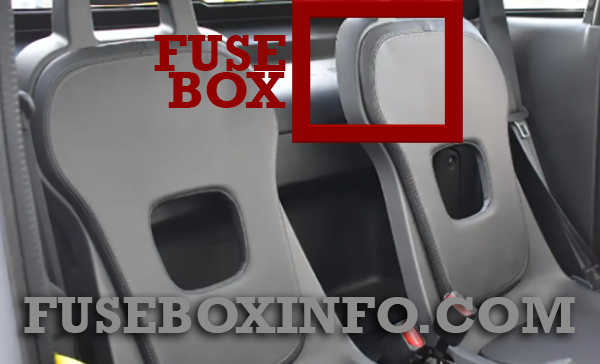

Passenger compartment fuse box location:

The fuse boxes are located behind the seats.





Fuse Box Diagram | Layout



Passenger compartment fuse box 1:

Fuse/Relay N° Functions
1 Brake switch
2 Main computer
3 Fan
4 Instrument panel
5 Battery computer
6 Horn
7 Battery drive train / DC / DC converter



Passenger compartment fuse box 2:

Fuse/Relay N° Functions
1 Steering mounted control
2 Main computer
3 Screenwash pump
4 -
5 Instrument panel control indicators
6 -
7 Motor computer
8 Brake switch
9 USB power outlet / lighting for ventilation / heating / demisting
buttons / drive selector
10 -
11 Diagnostic socket
12 Wiper motor
13 Rear left wheel speed sensor
14 Sidelights front left and rear right / number plate light
15 Sidelights rear left and front right
16 Right-hand dipped beam headlight
17 Left-hand dipped beam headlight
18 Wiper motor
