Opel/Vauxhall Mokka 2012 Fuse Box Info
Fuse box location:

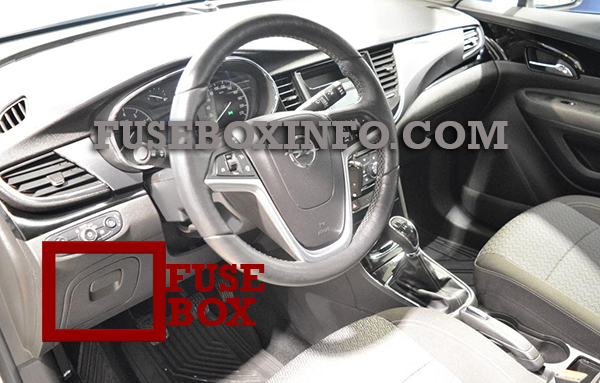

Interior fuse block is located on the underside of the driver's side instrument panel.
Engine compartment fusebox:

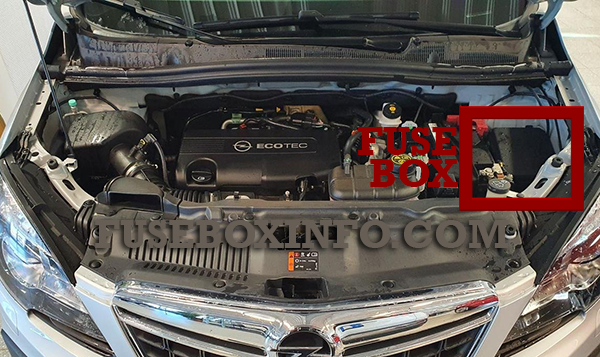

The fuse box is in the front left of the engine compartment.
Load compartment:

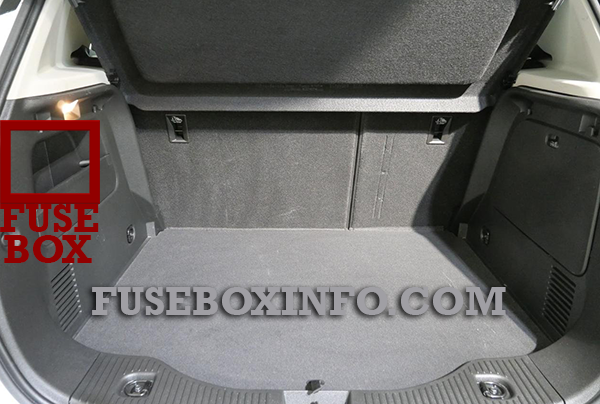

It is located in the left side of rear compartment. To access the fuses, remove the cover.
Fuse Box Diagram | Layout
Instrument panel fuse box:
| Mini Fuses | |
| Fuse N° | Functions |
| 1 | Body control module |
| 2 | Body control module |
| 3 | Body control module |
| 4 | Body control module |
| 5 | Body control module |
| 6 | Body control module |
| 7 | Body control module |
| 8 | Body control module |
| 9 | Door locks |
| 10 | Safety diagnosis module |
| 11 | Door locks |
| 12 | Climate control |
| 13 | Tailgate |
| 14 | Park assist |
| 15 | Lane departure warning, Interior mirror |
| 16 | Adaptive forward lighting |
| 17 | Power window driver |
| 18 | Rain sensor |
| 19 | Spare |
| 20 | Steering wheel |
| 21 | Transmission control module |
| 22 | Cigarette lighter |
| 23 | Spare |
| 24 | Spare |
| 25 | Spare |
| 26 | Safety diagnosis module |
| 27 | Instrument panel cluster |
| 28 | Adaptive forward lighting |
| 29 | Spare |
| 30 | Spare |
| 31 | Instrument panel cluster |
| 32 | Infotainment, auxiliary, power outlet |
| 33 | Display, Infotainment system |
| 34 | Onstar UHP/DAB |
| S/B Fuses | |
| Fuse N° | Functions |
| 01 | Spare |
| 02 | Spare |
| 03 | Power windows front |
| 04 | Power windows rear |
| 05 | Logistic mode |
| 06 | Spare |
| 07 | Spare |
| 08 | Spare |
Engine compartment fusebox:
| Mini Fuses | |
| Fuse N° | Functions |
| 1 | Sunroof |
| 2 | Exterior mirrors |
| 3 | - |
| 4 | - |
| 5 | Electrical brake control module |
| 6 | Intelligent battery sensor |
| 7 | - |
| 8 | Transmission control module |
| 9 | Body control module |
| 10 | Headlight levelling |
| 11 | Rear window wiper |
| 12 | Heated rear window |
| 13 | Headlight actuator (left hand) |
| 14 | Heated exterior mirrors |
| 15 | - |
| 16 | Seat heating |
| 17 | Transmission control module |
| 18 | Engine control module |
| 19 | Fuel pump |
| 20 | - |
| 21 | Cooling fan |
| 22 | - |
| 23 | Ignition coil, Engine control module |
| 24 | Washer pump |
| 25 | Headlamp actuator (right hand) |
| 26 | Engine control module |
| 27 | - |
| 28 | Engine control module |
| 29 | Engine control module |
| 30 | Exhaust system |
| 31 | Left-hand high beam |
| 32 | Right-hand high beam |
| 33 | Engine control module |
| 34 | Horn |
| 35 | Climate control, air conditioning system |
| 36 | Front fog lamp |
| J-cases Fuses | |
| Fuse N° | Functions |
| 1 | Electrical brake control module |
| 2 | Front wiper |
| 3 | Engine control module |
| 4 | Engine control module |
| 5 | - |
| 6 | Fuel heater |
| 7 | - |
| 8 | Cooling fan |
| 9 | Cooling fan |
| 10 | Engine control module, Glow plug |
| 11 | Starter |

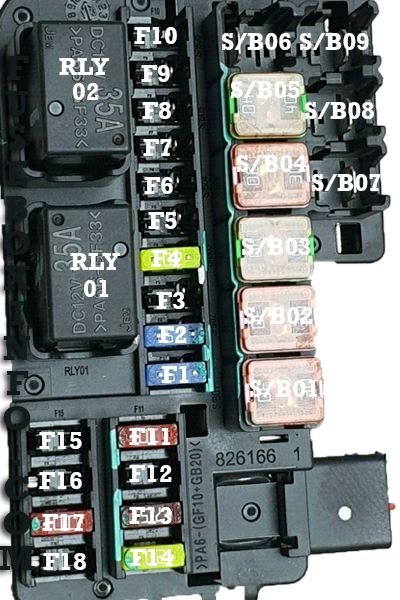

Load compartment:
| Mini Fuses | |
| Fuse N° | Functions |
| 1 | Seat, lumbar support, driver |
| 2 | Seat, lumbar support, passenger |
| 3 | Amplifier |
| 4 | Trailer socket |
| 5 | All-wheel drive |
| 6 | Display |
| 7 | Spare |
| 8 | Trailer |
| 9 | Spare |
| 10 | Spare |
| 11 | Trailer |
| 12 | Navigation |
| 13 | Heated steering wheel |
| 14 | Trailer socket |
| 15 | Steering wheel |
| 16 | Water in fuel sensor |
| 17 | Interior mirror |
| 18 | Spare |
| S/B Fuses | |
| Fuse N° | Functions |
| 01 | Power seat driver |
| 02 | Power seat passenger |
| 03 | Trailer |
| 04 | Voltage converter |
| 05 | Battery |
| 06 | Headlight washer |
| 07 | Spare |
| 08 | Spare |
| 09 | Spare |
