Opel/Vauxhall Zafira 2014 Fuse Box

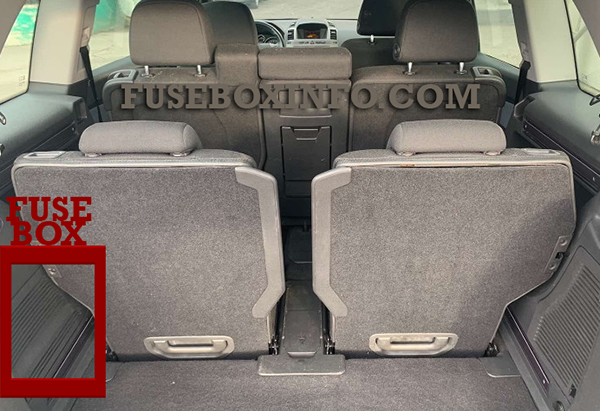

Fuse box location:
On the left side of the luggage compartment.

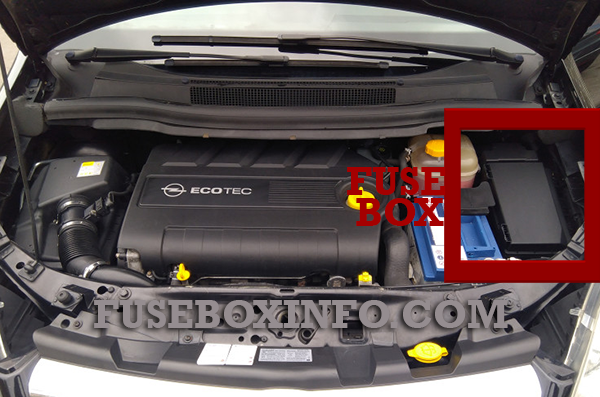

Engine compartment fusebox:
The fusebox is at the front left of the engine compartment.
Fuse Box Diagram | Layout
Load compartment:

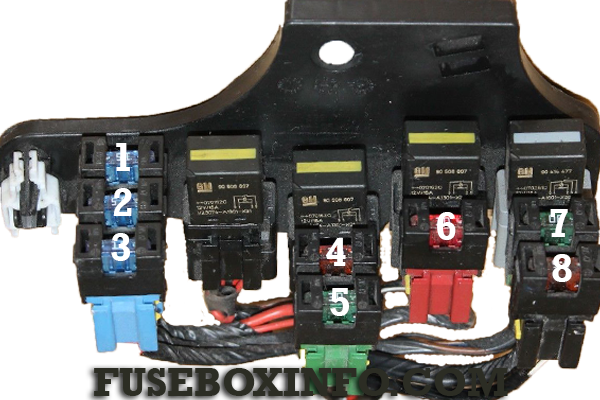

Fuse box version 1
| Fuse N° | Rating | Functions |
| 1 | 15 A | Fog light |
| 2 | 15 A | Rear power outlet |
| 3 | 15 A | Load compartment power outlet |
| 4 | 7.5 A | Reversing lights |
| 5 | 30 A | Rear power windows |
| 6 | 10 A | Air conditioning system |
| 7 | 30 A | Front power windows |
| 8 | 7.5 A | Heated exterior mirrors |

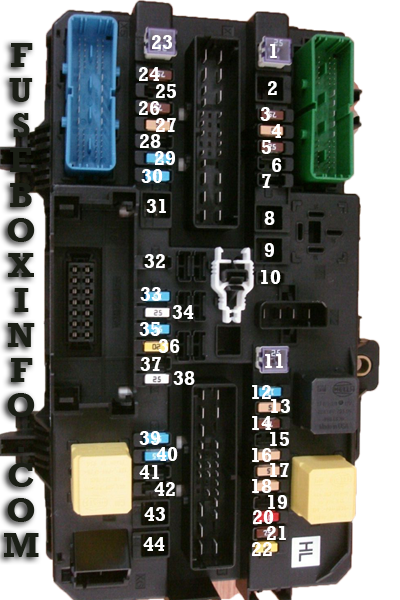

Fuse box version 2:
| Fuse N° | Rating | Functions |
| 1 | 25 A | Front power windows |
| 2 | - | - |
| 3 | 7.5 A | Instruments |
| 4 | 5 A | Heating, air conditioning system, electronic climate control |
| 5 | 7.5 A | Airbags |
| 6 | - | - |
| 7 | - | - |
| 8 | - | - |
| 9 | - | - |
| 10 | - | - |
| 11 | 25 A | Heated rear window |
| 12 | 15 A | Rear window wiper |
| 13 | 5 A | Parking assist |
| 14 | 7.5 A | Heating, air conditioning system |
| 15 | - | - |
| 16 | 5 A | Open&Start system |
| 17 | 5 A | Rain sensor, air quality sensor, Tyre Pressure Monitoring System , interior mirror |
| 18 | 5 A | Instruments, switches |
| 19 | - | - |
| 20 | 10 A | CDC |
| 21 | 7.5 A | Heated exterior mirrors |
| 22 | - | - |
| 23 | 25 A | Rear power windows |
| 24 | 7.5 A | Diagnostics plug |
| 25 | - | - |
| 26 | 7.5 A | Electrical foldable exterior mirrors |
| 27 | 5 A | Ultrasonic sensor, anti-theft alarm system |
| 28 | - | - |
| 29 | 15 A | Cigarette lighter, front power outlet |
| 30 | 15 A | Rear socket |
| 31 | - | - |
| 32 | - | - |
| 33 | 15 A | Open&Start system |
| 34 | - | - |
| 35 | 15 A | Rear power outlet |
| 36 | 20 A | Socket for towing equipment |
| 37 | - | - |
| 38 | 25 A | Central locking system, terminal 30 |
| 39 | 15 A | Left seat heating |
| 40 | 15 A | Right seat heating |
| 41 | - | - |
| 42 | - | - |
| 43 | - | - |
| 44 | - | - |
Engine compartment fusebox:

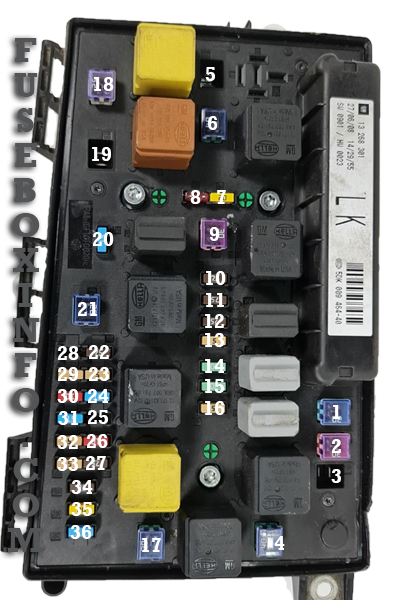

Version 1 fuse assignments:
| Fuse N° | Rating | Functions |
| 1 | 20 A | ABS |
| 2 | 30 A | ABS |
| 3 | 40 A | Interior fan electronic climate control |
| 4 | 40 A | Interior fan heating and air conditioning system |
| 5 |
30 A 40 A |
Radiator fan (depending on engine) |
| 6 |
20 A 30 A 40 A |
Radiator fan (depending on engine) |
| 7 | 20 A | Central locking system |
| 8 | 10 A | Windscreen washer, rear window washer |
| 9 | 30 A | Heated rear window, heated exterior mirror |
| 10 | 7.5 A | Diagnostics plug |
| 11 | 7.5 A | Instruments |
| 12 | 7.5 A | Mobile telephone, Infotainment system, display |
| 13 | 5 A | Courtesy light |
| 14 | 30 A | Wind screen wiper |
| 15 | 30 A | Wind screen wiper |
| 16 | 5 A | Horn, ABS, brake light switch, air conditioning system |
| 17 |
25 A 20 A |
Diesel particle filter or air conditioning system |
| 18 | 25 A | Starter |
| 19 | - | - |
| 20 | 15 A | Horn |
| 21 | 20 A | Engine electronics |
| 22 | 7.5 A | Engine electronics |
| 23 | 5 A | Head light range adjustment |
| 24 | 15 A | Fuel pump |
| 25 | - | - |
| 26 | 10 A | Engine electronics |
| 27 | 7.5 A | Heating, air conditioning system, air quality sensor |
| 28 | - | - |
| 29 | 5 A | Power steering |
| 30 | 10 A | Engine electronics |
| 31 | 15 A | Rear window wiper |
| 32 | 5 A | Brake light switch |
| 33 | 5 A | Headlight range adjustment, light switch, clutch switch, instrument, driver's door module |
| 34 | 7.5 A | Steering column control unit |
| 35 | 20 A | Infotainment system |
| 36 | 15 A | Cigarette lighter, front socket |
Version 2 fuse assignments:
| Fuse N° | Rating | Functions |
| 1 | 20 A | ABS |
| 2 | 30 A | ABS |
| 3 | 40 A | Interior fan electronic climate control |
| 4 | 40 A | Interior fan heating and air conditioning system |
| 5 |
30 A 40 A |
Radiator fan (depending on engine) |
| 6 |
20 A 30 A 40 A |
Radiator fan (depending on engine) |
| 7 | 10 A | Windscreen washer system |
| 8 | 15 A | Horn |
| 9 | 25 A | Headlight wash system |
| 10 | 20 A | Emergency unlocking of central locking system |
| 11 | - | - |
| 12 | - | - |
| 13 | 15 A | Fog light |
| 14 | 30 A | Windscreen wiper |
| 15 | 30 A | Windscreen wiper |
| 16 | 5 A | Control module electronics, Open&Start system, ABS, brake light switch |
| 17 | 25 A | Diesel fuel filter heating |
| 18 | 25 A | Starter |
| 19 | 30 A | Transmission electronics |
| 20 | 10 A | Air conditioning system |
| 21 | 20 A | Engine electronics |
| 22 | 7.5 A | Engine electronics |
| 23 | 10 A | Adaptive forward lighting, headlight range adjustment |
| 24 | 15 A | Fuel pump |
| 25 | 15 A | Transmission electronics |
| 26 | 10 A | Engine electronics |
| 27 | 5 A | Power steering |
| 28 | 5 A | Transmission electronics |
| 29 | 7.5 A | Transmission electronics |
| 30 | 10 A | Engine electronics |
| 31 | 10 A | Adaptive Forward Lighting, headlight range adjustment |
| 32 | 5 A | Brake system, air conditioning system, clutch switch |
| 33 | 5 A | Adaptive Forward Lighting, headlight range adjustment, light switch |
| 34 | 7.5 A | Steering column control unit |
| 35 | 20 A | Infotainment system |
| 36 | 7.5 A | Mobile telephone, Infotainment system, display |
