Opel/Vauxhall Zafira Tourer 2017 Fuse Box
Fuse box location:

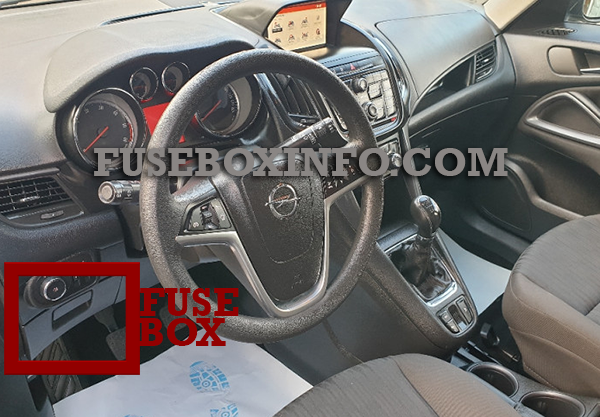

In left-hand drive vehicles, the fuse box is behind the storage compartment in the instrument panel. Open the compartment and push it to the left to unlock. In right-hand drive vehicles, the fuse box is located behind a cover in the glovebox.

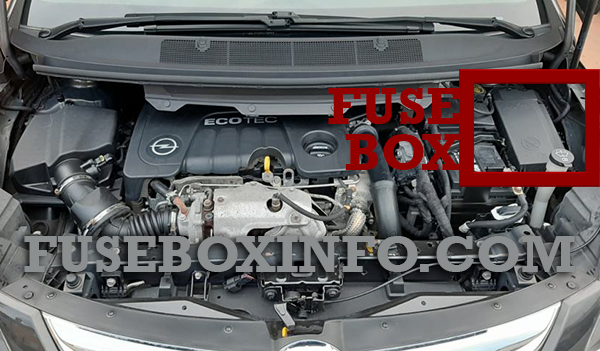

Engine compartment fusebox:
The fuse box is in the front left of the engine compartment.

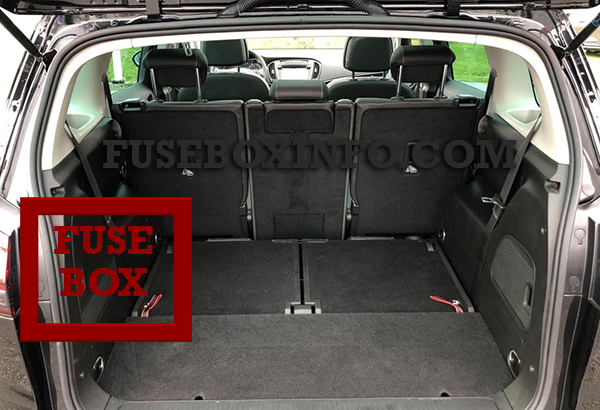

Load compartment:
Fuse Box Diagram | Layout

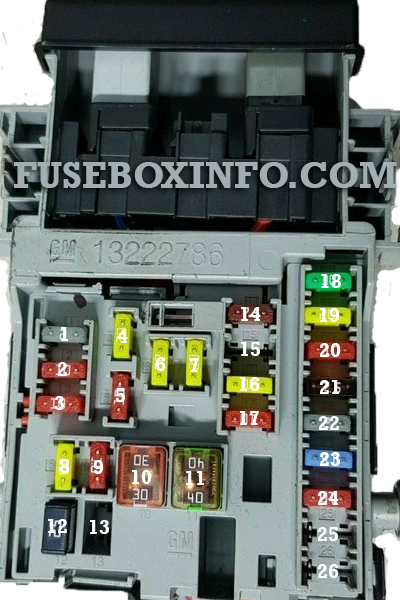

Instrument panel fuse box:
| Fuse N° | Functions |
| 1 | Cruise control, speed limiter, adaptive cruise control, steering wheel controls |
| 2 | Exterior lights, body control module |
| 3 | Exterior lights, body control module |
| 4 | Infotainment system |
| 5 | Infotainment system, instrument |
| 6 | Power outlet, cigarette lighter |
| 7 | Power outlet |
| 8 | Left low beam, body control module |
| 9 | Right low beam, body control module, airbag module |
| 10 | Door locks, body control module |
| 11 | Interior fan |
| 12 | - |
| 13 | - |
| 14 | Diagnostic connector |
| 15 | Airbag |
| 16 | Power outlet |
| 17 | Air conditioning system |
| 18 | Logistics |
| 19 | Body control module |
| 20 | Body control module |
| 21 | Instrument panel cluster, antitheft alarm system |
| 22 | Ignition sensor |
| 23 | Body control module |
| 24 | Body control module |
| 25 | - |
| 26 | - |
Engine compartment fusebox:
| Fuse N° | Functions |
| 1 | Engine control module |
| 2 | Lambda sensor |
| 3 | Fuel injection, ignition system |
| 4 | Fuel injection, ignition system |
| 5 | - |
| 6 | Exterior mirror heating, anti-theft alarm system |
| 7 | Fan control, engine control module, transmission control module |
| 8 | Lambda sensor, engine cooling |
| 9 | Rear window sensor |
| 10 | Battery sensor |
| 11 | Tailgate release |
| 12 | Adaptive forward lighting, automatic light control |
| 13 | ABS |
| 14 | Rear window wiper |
| 15 | Engine control module |
| 16 | Starter |
| 17 | Transmission control module |
| 18 | Heated rear window |
| 19 | Front power windows |
| 20 | Rear power windows |
| 21 | Rear electrical centre |
| 22 | Left high beam (Halogen) |
| 23 | - |
| 24 | Right low beam (LED) |
| 25 | Left low beam (LED) |
| 26 | Front fog lights |
| 27 | Diesel fuel heating |
| 28 | Stop-start system |
| 29 | Electrical parking brake |
| 30 | ABS |
| 31 | Adaptive cruise control |
| 32 | Airbag |
| 33 | Adaptive forward lighting, automatic light control |
| 34 | Exhaust gas recirculation |
| 35 | Exterior mirror, Rain sensor |
| 36 | Climate control |
| 37 | Canister vent solenoid |
| 38 | Vacuum pump |
| 39 | Central control module |
| 40 | Windscreen washer, rear window washer system |
| 41 | Right high beam (Halogen) |
| 42 | Radiator fan |
| 43 | Windscreen wiper |
| 44 | Windscreen wiper |
| 45 | Radiator fan |
| 46 | - |
| 47 | Horn |
| 48 | Radiator fan |
| 49 | Fuel pump |
| 50 | Headlamp levelling, adaptive forward lighting |
| 51 | Air shutter |
| 52 | Auxiliary heater, diesel engine |
| 53 | Transmission control module, engine control module |
| 54 | Vacuum pump, instrument panel cluster, heating ventilation, air conditioning system |
Load compartment:
| Fuse N° | Functions |
| 1 | - |
| 2 | Trailer outlet |
| 3 | Parking assist |
| 4 | Selective catalytic reduction system |
| 5 | - |
| 6 | - |
| 7 | Power seat |
| 8 | - |
| 9 | Selective catalytic reduction system |
| 10 | Nitrogen oxide sensor |
| 11 | Trailer module, trailer socket |
| 12 | Trailer module |
| 13 | Trailer outlet |
| 14 | - |
| 15 | - |
| 16 | Inside mirror, rear view camera |
| 17 | Power outlet |
| 18 | - |
| 19 | Steering wheel heating |
| 20 | Sunblind |
| 21 | Heated front seats |
| 22 | - |
| 23 | - |
| 24 | Selective catalytic reduction system |
| 25 | - |
| 26 | - |
| 27 | - |
| 28 | - |
| 29 | - |
| 30 | - |
| 31 | - |
| 32 | Active damping system, lane departure warning |
