Opel Mokka B 2023 Fuse Box Info

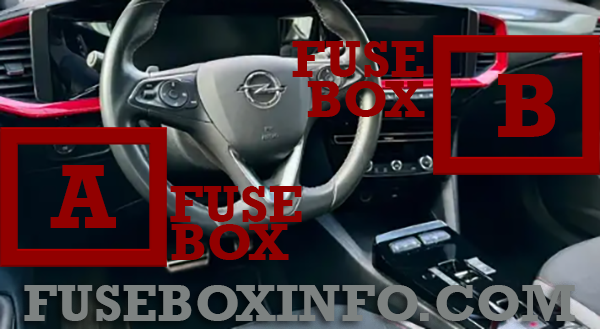

Passenger compartment fuse box location:
In left-hand drive vehicles, the fuse box A is behind a cover in the instrument panel. In right-hand drive vehicles, the fuse
box A is located behind a cover in the glovebox. In left-hand drive vehicles, the fuse box B is located behind a cover in the glovebox. In right-hand drive vehicles, the fuse box B is located behind a cover in the instrument panel.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box A (Non-electric vehicle):
| Fuse/Relay N° | Functions |
| 1 | Radar, Electric steering, Clutch switch |
| 3 | Inductive charging, Keyless operation |
| 4 | Horn |
| 5 | Windscreen washer |
| 6 | Windscreen washer |
| 7 | USB |
| 8 | Rear wiper |
| 9 | Interior lighting |
| 10 | Central locking system |
| 11 | Central locking system |
| 12 | Diagnostic connector module |
| 13 | Climate control system |
| 14 | Alarm, Opel Connect, Keyless operation |
| 17 | Driver Information Centre |
| 21 | Power button, Anti-theft locking system |
| 22 | Rain sensor, Light sensor, Camera |
| 23 | Seatbelt reminder, Brake twin function switch, Trailer |
| 24 | Infotainment, Parking assist, Rear view camera |
| 25 | Airbag |
| 27 | Anti-theft alarm system |
| 28 | Trailer |
| 29 | Infotainment |
| 31 | Cigarette lighter, 12 V power outlet |
| 32 | Heated steering wheel |
| 33 | Climate control system, Automatic transmission |
| 34 | Parking assist, Exterior mirror adjustment |
| 35 | Exterior lighting |
| 36 | Interior lighting |
Passenger compartment fuse box A (Electric vehicle):
| Fuse/Relay N° | Functions |
| 1 | Radar, Electric steering, Clutch switch |
| 3 | Inductive charging, Keyless operation |
| 4 | Horn |
| 5 | Windscreen washer |
| 6 | Windscreen washer |
| 7 | USB |
| 8 | Rear wiper |
| 9 | Interior lighting |
| 10 | Central locking system |
| 11 | Central locking system |
| 12 | Diagnostic connector module |
| 13 | Climate control module, radio faceplate |
| 14 | Alarm, Opel Connect, Keyless operation |
| 15 | Electronic shifter module, Headlight control unit |
| 16 | Low voltage network separation device |
| 17 | Driver Information Centre |
| 18 | Reserved for Aftersales equipment |
| 19 | Steering column control, Steering wheel controls |
| 21 | Power button |
| 22 | Rain sensor, Light sensor, Camera |
| 23 | Seatbelt reminder, Brake twin function switch, Trailer |
| 24 | Infotainment, Parking assist, Rear view camera |
| 25 | Airbag |
| 27 | Anti-theft alarm system |
| 28 | Trailer |
| 29 | Infotainment |
| 31 | Cigarette lighter, 12 V power outlet |
| 32 | Heated steering wheel |
| 33 | Pedestrian safety alert, Temperature preconditioning |
| 34 | Parking assist, Exterior mirror adjustment |
| 35 | Exterior lighting |
| 36 | Interior lighting |
Passenger compartment fuse box B:
| Fuse/Relay N° | Functions |
| 1 | Heated rear window |
| 2 | Heated exterior mirrors |
| 3 | Power windows front |
| 4 | Exterior mirror adjustment, Folding mirrors |
| 5 | Power windows rear |
| 10 | Heated front seats |
Engine compartment fuse box (Non-electric vehicle):
| Fuse/Relay N° | Functions |
| 1 | Climate control system |
| 2 | Brake system |
| 3 | Fuse box (right side of the instrument panel) |
| 4 | Brake system |
| 5 | Body control module |
| 6 | Cooling fan |
| 7 | Body control module |
| 8 | Engine control module, Fuel pump |
| 9 | NOX sensor, Diesel water sensor |
| 10 | Engine control module |
| 11 | Engine control module |
| 12 | Diagnostic link connector |
| 13 | Body control module |
| 14 | Battery sensor |
| 15 | Trailer control module |
| 16 | Right headlight |
| 17 | Engine control module, NOX sensor |
| 18 | Right high beam |
| 19 | Left high beam |
| 20 | Engine control module, Fuel pump, Diesel heater |
| 21 | Starter |
| 22 | Automatic transmission |
| 23 | Climate control system |
| 24 | Climate control system |
| 25 | Fuse box (trailer) |
| 27 | Body control module |
| 28 | Selective catalytic reduction system |
| 29 | Windscreen wiper |
| 30 | Diesel glow plug control unit |
| 31 | Climate control system |
| 32 | Steering wheel |
Engine compartment fuse box (Electric vehicle):
| Fuse/Relay N° | Functions |
| 1 | Climate control system |
| 2 | Brake system |
| 3 | Fuse box (right side of the instrument panel) |
| 4 | Brake system |
| 6 | Cooling fan |
| 7 | Body control module |
| 8 | Valve climate control |
| 9 | Electric vehicle control unit |
| 10 | Electric vehicle control unit |
| 11 | Electric vehicle control unit |
| 12 | Diagnostic link connector |
| 13 | Body control module, Climate control system |
| 15 | E-service plug |
| 16 | Right headlight |
| 18 | Right high beam |
| 19 | Left high beam |
| 20 | Electric vehicle control unit |
| 22 | Cooling fan, Vacuum pump, Electric vehicle control unit |
| 23 | AC/DC converter, DC/DC converter |
| 25 | High voltage battery interface |
| 26 | Motor controller (electric motor and inverter) |
| 27 | Body control module |
| 29 | Windscreen wiper |
| 30 | Body control module |
| 31 | Body control module |
| 32 | Steering wheel |
