Kia Sorento Hybrid 2025 Fuse Box Info

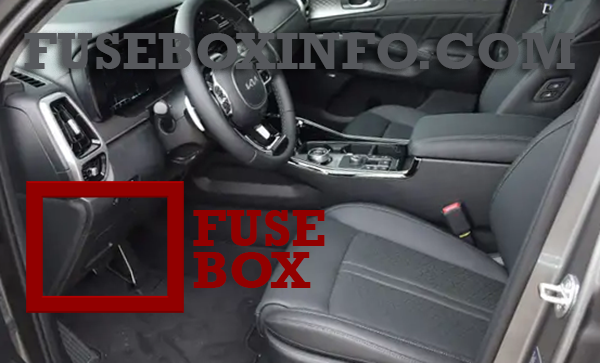

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

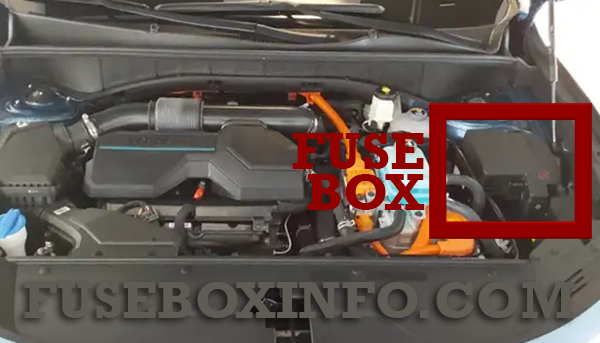

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| SPARE | 15A | Not Used |
| SPARE | 15A | Not Used |
| A/C | 7.5A | DATC (Dual Automatic Temperature Control),Engine Room Junction Block (PTC Heater1 Relay, PTC Heater2 Relay) |
| BRAKE SWITCH | 7.5A | BDC (Body Domain Controller), Stop Lamp Switch |
| MEMORY | 10A | DATC (Dual Automatic Temperature Control), ADAS Unit (Parking), BDC (Body Domain Controller: Parking Distance Warning Power), Mood Lamp Unit, Driver/Passenger Door Mood Lamp, Driver/Passenger Mood Lamp, Built-in Cam Unit, Rear A/C Control Switch, Instrument Cluster |
| A/BAG IND | 7.5A | Overhead Console Lamp |
| SPARE | 10A | Not Used |
| IG3 7 | 10A | CDM (Charge Door Module) |
| MODULE 9 | 10A | Multi Function Switch, Hazard Switch, Crash Pad Switch, Rain Sensor, DATC (Dual Automatic Temperature Control), ETCS( Electronic Toll Collection System), DAU (Door Area Unit), Driver/Passenger Door Outside Handle, Power Tail Gate Module, Driver/Passenger Seat Control Module |
| SPARE | 10A | Not Used |
| SPARE | 10A | Not Used |
| CCU | 20A | CCU (Central Communication Unit) |
| SPARE | 7.5A | Not Used |
| BDC 1 | 7.5A | BDC (Body Domain Controller) |
| MODULE 3 | 10A | CCU (Central Communication Unit), DCU (Data Connectivity Unit), Stop Lamp Switch |
| IG3 6 | 10A | DATC (Dual Automatic Temperature Control), CCNC (Connected Car Navigation Cockpit) |
| SPARE | 15A | Not Used |
| Wireless DCU | 7.5A | DCU (Data Connectivity Unit) |
| REAR A/C | 10A | Rear A/C Control Module |
| CHILD LOCK | 15A | Rear LH/RH Door Power Child Lock/Unlock Motor |
| MULTIMEDIA | 25A | CCNC (Connected Car Navigation Cockpit) |
| MODULE 5 | 10A | CCNC (Connected Car Navigation Cockpit), DATC (Dual Automatic Temperature Control), Built-in Cam Unit, Driver/Passenger Seat Control Module, AMP (Amplifier), Head Lamp Module LH/RH, FRONT TRAY WIRELESS CHARGER |
| CLUSTER | 7.5A | Instrument Cluster, Head-Up Display |
| IG3 5 | 10A | CCU (Central Communication Unit) |
| 2nd ROW SEATFOLDING LH | 20A | REAR SEAT FOLDING LH |
| 2nd ROW SEATFOLDING RH | 20A | REAR SEAT FOLDING RH |
| MODULE 8 | 7.5A | AC Inverter Module, AC Inverter (Rear), 20AH (20HR) [BATTERY LITHIUM TYPE-SUB] |
| TAILGATEOPEN | 10A | Tail Gate Open Relay |
| SPARE | 20A | Not Used |
| MODULE 6 | 10A | Multi Function Switch, Driver Power Window Switch Module |
| MDPS 2 | 7.5A | MDPS (Motor Driven Power Steering) |
| MODULE 2 | 10A | AMP (Amplifier), BDC (Body Domain Controller), DCU (Data Connectivity Unit), CCU (Central Communication Unit), CCNC (Connected Car Navigation Cockpit), CCNC Keyboard Switch, ADAS Unit (Parking), Built-in Cam Unit |
| P/SEAT (PASS) | 30A | Passenger Power Seat Module |
| S/HEATER (FRT) | 25A | Front Seat Warmer Control Module, Front Seat Air Ventilation Control Module |
| WASHER | 15A | Multi Function Switch |
| CHARGER | 10A | Integrated Circuit Module (Charger Door Lock/Unlock Relay), CDM (Charge Door Module) |
| BDC 2 | 10A | BDC (Body Domain Controller), Ultra Wide Band & Bluetooth Low Energy MASTER/SLAVE, Ultra Wide Band Front LH/RH, Ultra Wide Band Rear LH/RH |
| AIR BAG 2 | 10A | ACU (Airbag Control Unit) |
| HEATEDMIRROR | 7.5A | Driver/Passenger Outside Handle |
| AIR BAG 1 | 10A | ACU (Airbag Control Unit), ODS (Occupant Detection System) |
| USB CHARGER | 15A | Driver/Passenger Seat USB Charger, Luggage USB Charge Connector |
| SPARE | 10A | Not Used |
| P/WINDOW (RH) | 25A | Passenger Safety Power Window Module, Rear RH Safety Power Window Module |
| SUNROOF | 30A | Sunroof Motor |
| MODULE 7 | 7.5A | BDC (Body Domain Controller) |
| OBC | 10A | OBC (On Board Charger) |
| S/HEATER (RR) | 25A | Rear Seat Warmer Control Module |
| AMP | 25A | AMP (Amplifier) |
| SPARE | 10A | Not Used |
| MODULE 4 | 10A | Front View Camera, ADAS Driving ECU, ADAS Unit (Parking), Front/Rear Corner Radar LH/RH, Crash Pad Switch, Console Switch, Battery C/FAN Relay, VESS (Virtual Engine Sound System), 4Wheel Drive ECU |
| P/SEAT(DRV) 1 | 30A | Driver Power Seat Module |
| INVERTER | 30A | AC Inverter Module, AC Inverter (Rear) |
| SPARE | 10A | Not Used |
| DOOR LOCK | 20A | Door Lock Relay, Door Unlock Relay, FUEL FILLER OPENER |
| 4WD | 20A | 4 Wheel Drive ECU |
| P/SEAT(DRV) 2 | 10A | Driver Power Seat Module |
| START | 10A | HPCU (Hybrid Power Control Unit) |
| POWERTAILGATE | 30A | PTGM (Power Tail Gate Module) |
| P/WINDOW(LH) | 25A | Driver Safety Power Window Module, Rear LH Safety Power Window Module |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| WIPER FRT2 | 7.5A | IBU (Integrated Body Control Unit) |
| HPCU2 | 10A | HPCU (Hybrid Power Control Unit) |
| SPARE | 7.5A | Not Used |
| E-SHIFTER3 | 7.5A | SBW (Shift By Wire) Control Unit |
| SPARE | 20A | Not Used |
| POWER OUTLET2 | 20A | Rear Console Power Outlet |
| SENSOR6 | 20A | Not Used |
| ECU2 | 10A | ECM (Engine Control Module) |
| SENSOR8 | 10A | OPU |
| TCU2 | 10A | TCM (Transmission Control Module) |
| IEB4 | 7.5A | IEB Unit |
| POWER OUTLET1 | 20A | Luggage Power Outlet |
| SENSOR1 | 20A | Ignition Coil #1~#4 |
| SENSOR5 | 10A | E/R Junction Block (Fuel Pump Relay) |
| EWP2 | 10A | Electric Water Pump, Electronic Water Pump (HEV) |
| SENSOR9 | 20A | ECM (Engine Control Module) Voltage via Main Relay |
| SENSOR3 | 20A | ECM (Engine Control Module) Voltage via Main Relay |
| SENSOR2 | 15A | Active Purge Pump |
| WIPER FRT1 | 30A | Front Wiper Motor, Front Wiper (Low) Relay |
| WIPER RR | 15A | Rear Wiper Relay, Rear Wiper Motor |
| HORN | 15A | Horn Relay |
| SPARE | 10A | Not Used |
| SPARE | 15A | Not Used |
| SENSOR4 | 10A | RCV (Recirculation Valve Control) Control Solenoid Valve, Cooling Fan Motor, Oil Control Valve #1/#2(Intake, Exhaust), ELCM (EVAP, Leak Check Module), Purge Control Solenoid Valve, Variable Oil Pump Solenoid valve |
| SENSOR7 | 15A | Oxygen Sensor (UP/Down) |
| ECU1 | 15A | ECM (Engine Control Module) |
| ECU3 | 20A | ECM (Engine Control Module) |
| IG1 | 40A | IG1 Relay |
| IG2 | 40A | IG2 Relay, ACC relay |
| E-SHITER2 | 10A | SBW (Shift By Wire) Control Unit, Electronic Shift Dial |
| AMS | 10A | Battery Sensor |
| TCU1 | 15A | TCM (Transmission Control Module) |
| IG3 | 20A | OBC Unit, Battery System Assembly |
| BATTERY MANAGEMENT | 10A | Battery System Assembly |
| TRAILER1 | 30A | TRAILER |
| COOLING FAN | 80A | Cooling Fan Motor |
| IEB1 | 40A | IEB Unit |
| BLOWER | 50A | Blower Relay |
| CVVD | 50A | CVVD Actuator |
| B+2 | 50A | Power Domain Control Module (IPS) |
| E-SHIFTER1 | 30A | SBW (Shift By Wire) Control Unit |
| MDPS1 | 100A | MDPS Unit (Motor Driven Power Steering Unit) |
| REAR HEATED | 40A | Rear Heated Relay |
| B+6 | 60A | PCB Junction Block (Fuse-IG1, IG2) |
| B+3 | 60A | Power Domain Control Module (Fuse-Power Tail Gate, P/SEAT (DRV), P/SEAT(PASS), P/WINDOW(LH/RH), S/HEATER FRT, INVERTER, SUNROOF, 2nd ROW SEAT FOLDING(LH/RH), Wireless DCU, Power Handle, Module9 |
| AUX BATT | 60A | Parking Lithium Battery Module |
| FUEL PUMP | 20A | Fuel Pump Relay |
| B+4 | 50A | Power Domain Control Module (Fuse-Long Term Load Latch Relay, Child Lock Relay#1/#2, Short Term Load IPS, BCD2, Brake Switch, CCU, 4WD, Rear S/HEATER, Center Door Lock/Unlock Relay Two Turn Unlock Relay, Tail Gate Open) |
| IEB3 | 60A | IEB Unit |
| PTC HEATER2 | 60A | PTC (Positive Temperature Coefficient) Heater2 Relay |
| B+1 | 50A | Power Domain Control Module (IPS) |
| TRAILER3 | 20A | TRAILER |
| TRAILER3 | 20A | TRAILER |
| B+5 | 40A | Power Domain Control Module (Fuse-AMP, AIR BAG #2, CHARGER, OBC, P/SEAT DRV #2) |
| IEB2 | 60A | IEB Unit |
| PTC HEATER1 | 60A | PTC (Positive Temperature Coefficient) Heater1 Relay |
| EWP3 | 15A | Electronic Water Pump (Battery PHEV) |
| IG3 3 | 10A | BMU PHEV, OBC sig. |
| IG3 2 | 10A | HPCU (Hybrid Power Control Unit), SBW (Shift By Wire) Control Unit (PHEV) |
| IG3 4 | 10A | A/CON Compressor (PHEV) |
| MODULE1 | 10A | Virtual Engine Sound System, Battery Cooling EXV.(PHEV) |
| HEAD LAMP LH | 20A | Head Lamp Module LH |
| HPCU1 | 10A | HPCU (Hybrid Power Control Unit) |
| OPCU | 20A | OPU |
| BATTERY C/FAN | 15A | Battery Cooling Fan Motor |
| HEAD LAMP RH | 20A | Head Lamp Module RH |
