Kia Sportage 2008 Fuse Box Info

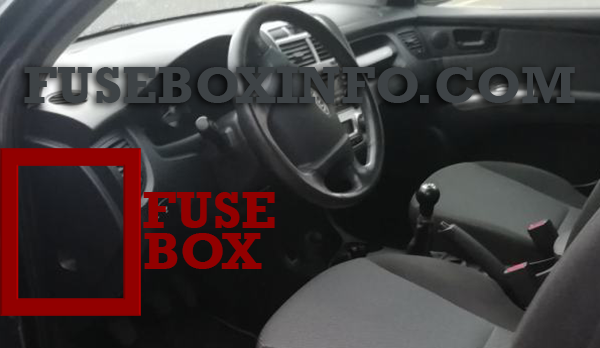

Fuse box location:
The fuse box is located at the left side trim of the driver’s instrument panel.

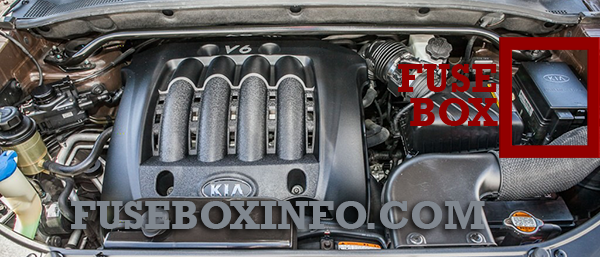

Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| TAIL RH | 10A | Taillight (right) |
| RR HTR | 30A | Rear defroster |
| HAZARD | 15A | Hazard warning light |
| SAFETY P/WDW | 15A | Safety power window |
| HTD MIRR | 10A | Outside rearview mirror defroster |
| TAIL LH | 10A | Taillight (left) |
| ECU (B+) | 10A | TCU, Immobilizer |
| P/OUTLET.RR | 15A | Power outlet (rear) |
| RR FOG | 10A | Rear fog lamp |
| RR WIPER | 15A | Rear wiper |
| F/MIRROR | 10A | Folding the outside rearview mirror |
| START | 10A | Ignition lock/inhibitor switch, Theft-alarm system |
| AV | 10A | Audio |
| P/OUTLET.FR | 15A | Power outlet (front) |
| OBD II | 10A | OBD II, Diagonosis |
| S/HTR | 20A | Seat warmer |
| SPARE | 15A | Spare fuse |
| C/LIGHTER | 15A | Cigar lighter |
| AUDIO | 10A | ETACS, Audio, Door lock, Electric remote control mirror |
| ROOM LP | 10A | Cluster, ETACS, A/C, Clock, Room lamp |
| S/ROOF & D/LOCK | 20A | Sunroof, Door lock |
| A/CON | 10A | Air conditioner |
| IGN | 10A | Fuel filter heater, AQS, Headlight |
| P/WDW-1 | 30A | Power window (left) |
| P/WDW-2 | 30A | Power window (right) |
| SPARE | 10A | Spare fuse |
| IG COIL | 20A | Ignition coil |
| T/SIG | 15A | Turn signal light |
| A/BAG IND | 10A | Cluster |
| CLUSTER | 10A | Cluster |
| SPARE FUSE | 15A | Spare fuse |
| SPARE FUSE | 10A | Spare fuse |
| B/UP | 10A | Back-up light |
| A/BAG | 15A | Airbag |
| ABS | 10A | Anti-lock brake system |
| ECU | 10A | TCS, ESP, Immobilizer |
| SPARE FUSE | 30A | Spare fuse |
| SPARE FUSE | 20A | Spare fuse |
| P/CONN | 30A | Power connector fuse |
| SHUNT CONN | - | Shunt connector |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| A/CON | - | Air conditioner relay |
| ATM | - | Automatic transaxle control relay |
| COND2 | - | Condenser (low) relay |
| DEICE | - | Defroster relay |
| F/FOG | - | Front fog light relay |
| F/PUMP | - | Fuel pump relay |
| HDLP HI | - |
Headlight (high) relay |
| HDLP LO | - | Headlight (low) relay |
| HORN | - | Horn relay |
| WIPER | - | Wiper relay |
| COND1 | - | Condenser (high) relay |
| MAIN | - | Main relay |
| START | - | Start motor relay |
| COND1 | 40A | Condenser (high) |
| COND2 | 30A | Condenser (low) |
| IGN1 | 30A | Ignition switch |
| IGN2 | 30A | Start motor |
| ABS1 | 40A | ABS, ESP |
| ABS2 | 40A | ABS, ESP |
| IP B+ | 60A | In panel B+ |
| BLOWER | 40A | Blower |
| ALT 2.0L Gasoline | 120A | Alternator |
| ALT 2.7L Gasoline | 140A | Alternator |
| A/CON | 10A | Air conditioner |
| SNSR | 10A | Sensors |
| DEICE | 15A | Defroster |
| DRL | 15A | Daytime running light |
| F/FOG | 15A | Front fog light |
| F/PUMP | 15A | Fuel pump |
| F/WIPER | 20A | Front wiper |
| HDLP HI | 20A | Headlight (high) |
| HDLP LO | 15A | Headlight (low) |
| HORN | 15A | Horn |
| INJ | 15A | Injector |
| STOP | 15A | Stop light |
| 4WD | 20A | 4WD ECM |
| AMP | 20A | Amplifier |
| ATM | 20A | Automatic transaxle control |
| ECU | 30A | Engine control unit |
| SPARE | 10A | Spare fuse |
| SPARE | 15A | Spare fuse |
| SPARE | 20A | Spare fuse |
| SPARE | 30A | Spare fuse |
