Kia Sorento 2025 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.
Engine compartment fuse box location:
Fuse Box Diagram | Layout

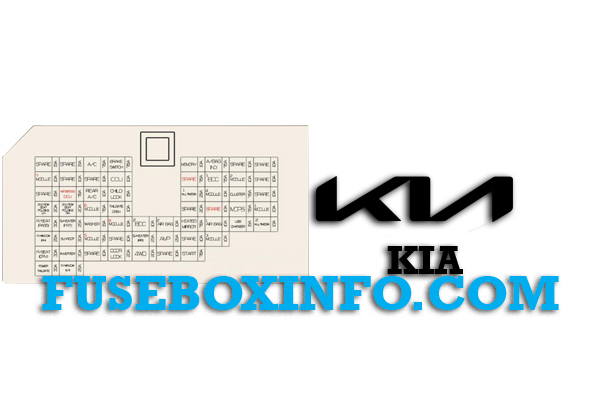

Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| A/C | 7.5A | MTC/DATC, ERJB(PTC HEATER2 RELAY) |
| BRAKE SWITCH | 7.5A | BDC (Body Domain Contoller), Stop Lamp Switch |
| MEMORY | 10A | Cluster, ISG LDC 450W, Mood Lamp Unit, Mood Lamp LH/RH, BDC, Built-in Camera Unit, MTC/DATC, ADAS PRK ECU, Rear Aircon Switch |
| A/BAG IND | 7.5A | Overhead Console |
| CCU | 10A | CCU (Central Communication Unit) |
| BDC1 | 7.5A | BDC (Body Domain Contoller) |
| MODULE3 | 10A | CCU (Central Communication Unit), DCU (Data Connectivity Unit), Stop Lamp Switch |
| wireless DCU | 7.5A | DCU(Data Connectivity Unit) |
| RR A/CON | 10A | Rear Aircon Switch, Rear Aircon Blower Motor |
| CHILD LOCK | 15A | Rear Door Child Lock LH/RH |
| MULTI MEDIA1 | 25A | ISG LDC 200W, CCNC (Connected Car Navigation Cockpit) |
| MODULE5 | 7.5A | Wireless Charger, OBD, MTC/DATC, ECM/DCM Mirror, Built-in Camera Unit, CCNC (Connected Car Navigation Cockpit), ISG LDC 200W/450W, 1st Seat Power Seat Unit, Amplifier, HLLD (Head Lamp Leveling Device |
| CLUSTER | 7.5A | Cluster |
| 2nd ROW SEAT FOLD ING LH |
20A | 2nd Seat Folding Actuator LH |
| 2nd ROW SEAT FOLD ING RH |
20A | 2nd Seat Folding Actuator RH |
| MODULE8 | 10A | P_LBM (Parking-Lithium Battery Module) |
| T/GATE OPEN | 10A | Tail Gate Latch |
| MODULE6 | 7.5A | Multi Function Switch, Power Window Main Switch |
| MDPS | 7.5A | MDPS (Motor Driven Power Steering) Unit - MDPS (Motor Driven Power Steering) is same as EPS (Electric Power Steering). |
| MODULE2 | 10A | CCNC (Connected Car Navigation Cockpit) Keyboard, BDC (Body Domain Contoller), CCU (Central Communication Unit), USB Charger, Built-in Camera Unit, CCNC (Connected Car Navigation Cockpit), MTC, DCU (Data Connectivity Unit), Overhead Console, Amplifier, ADAS Parking Unit |
| P/SEAT PASS | 30A | Passenger Power Seat Motor |
| S/HEATER FRT | 25A | 1st Seat Warmer/Ventilation LH/RH |
| WASHER | 15A | Multi Function Switch |
| BDC2 | 10A | BDC (Body Domain Contoller), Driver Outside Handle Switch, Passenger Outside Handle Switch, ATM Lever, Digitalkey 2.0 Unit/Sensor |
| A/BAG2 | 10A | Airbag Contol Unit |
| HEATED MIRROR | 7.5A | Outside Mirror Heated LH/RH |
| A/BAG1 | 10A | Airbag Contol Unit |
| USB CHARGER | 15A | Luggage USB Charger LH/RH, 1ST Seat USB Charger LH/RH |
| MULTI MEDAI2 | 10A | Cluster, MTC, Wireless Charger, ADAS Parking Unit, Rear Corner Radar LH/RH |
| P/WINDOW RH | 25A | Power Window Motor RH |
| SUNROOF | 30A | Panoramic Sunroof Motor |
| S/HEATER RR | 15A | 2nd Seat Warmer LH/RH |
| AMP | 25A | Amplifier, ISG LDC 450W |
| MODULE4 | 10A | Front View Camera, Tilt-Tele Unit, C/PAD Switch, ADAS Drive Unit, Rear Corner Radar LH/RH, 4WD ECU, DCU(Dosing Control Unit), Console Switch, ADAS Parking Unit, Front Radar, Front Corner Radar LH/RH |
| P/SEAT DRV | 30A | Driver Power Seat Motor |
| DR LOCK | 20A | All Door Lock/Unlock |
| 4WD | 20A | 4WD ECU |
| START | 7.5A | Ignition Switch |
| POWER TAILGATE |
30A | Power Tailgate Unit |
| P/WINDOW LH | 25A | Power Window Motor LH |

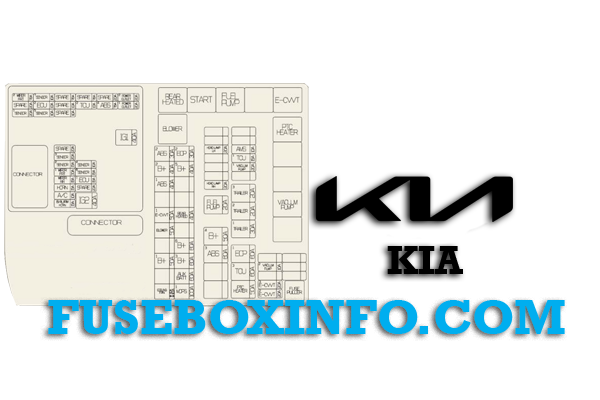

Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| COOLING FAN |
80A 100A |
Cooling Fan Motor |
| B+2 | 40A | PDC (Power Domain Controller) |
| BLOWER | 50A | Blower Relay |
| ABS1 | 40A | ABS/ESC |
| ABS2 | 30A | ABS/ESC |
| TRAILER1 | 50A | Trailer Module |
| MDPS1 | 100A | MDPS (Motor Driven Power Steering) Unit - MDPS (Motor Driven Power Steering) is same as EPS (Electric Power Steering) |
| AUX BATT | 60A | Parking Lithium Battery Module |
| B+3 | 60A | PDC (Power Domain Controller) |
| B+6 | 60A | PCB Block |
| REAR HEATED | 40A | Rear Glass Heated Relay |
| B+1 | 50A | PDC (Power Domain Controller) |
| ABS3 | 60A | ABS/ESC |
| B+4 | 50A | PDC (Power Domain Controller) |
| FUEL PUMP | 20A | Fuel Pump Relay |
| HEAD LAMP RH | 20A | HEAD LAMP RH |
| HEAD LAMP LH | 20A | HEAD LAMP LH |
| PTC HEATER | 50A | PTC Heater Relay1 |
| TCU3 | 60A | DCT TCU |
| EOP1 | 60A | EOP (Electric Oil Pump) |
| B+5 | 40A | PDC (Power Domain Controller) |
| TRAILER2 | 20A | Trailer Module |
| TRAILER3 | 20A | Trailer Module |
| TCU1 | 15A | TCU |
| AMS | 10A | Battery Sensor |
| E-CVVT1 | 50A | E-CVVT Relay |
| EOP2 | 30A | Electric Oil Pump |
| VACUUM PUMP1 | 20A | Vacuum Pump Relay |
| E-CVVT2 | 20A | [Smartstream G2.5 T-GDi] ECU(Engine Control Unit) |
| E-CVVT3 | 20A | [Smartstream G2.5 T-GDi] ECU(Engine Control Unit) |
| VACUUM PUMP2 | 20A | ABS/ESC |
| IG1 | 40A | PCB Block (IG1 Relay, ACC relay) |
| IG2 | 40A | PCB Block (IG2 Relay), Start Relay |
| FRT WIPER2 | 7.5A | BDC(Body Domain Controler), ECU (Engine Control Unit) |
| SENSOR6 | 15A | Injector #1/#2/#3/#4 |
| SENSOR1 | 20A | Ignition Coil #1/#2/#3/#4 |
| ECU2 | 10A | ECU (Engine Control Unit) |
| SENSOR5 | 10A | Fuel Pump Relay, ECU (Engine Control Unit) |
| SENSOR3 | 20A | ECU (Engine Control Unit) |
| SENSOR2 | 15A | Oxygen Sensor (Up 1/Down 1) Oxygen Sensor (Up/Down) |
| FRT WIPER1 | 30A | Front Wiper Motor, PCB Block (Front Wiper Relay High, Low) |
| RR WIPER | 15A | Rear Wiper Motor, PCB Block (Rear Wiper Relay High, Low) |
| HORN | 15A | PCB Block (Horn Relay) |
| A/C | 10A | PCB Block (Air-con Compressor Relay) |
| B/ALARM HORN | 15A | PCB Block (Burglar Alarm Horn Relay) |
| SENSOR4 | 10A | Cooling Fan, Variable Intake Solenoid, Recirculation Control Valve, Oil Control Valve, Canister Control Valve, Variable Oil, Pump Solenoid Valve, Oil Level Sensor, Purge. Control Solenoid Valve |
| SENSOR7 | 10A | Electric Oil Pump |
| ECU1 | 15A | ECU (Engine Control Unit) |
| ABS4 | 7.5A | ABS/ESC |
| POWER OUTLET2 | 20A | Rear Console Power Outlet |
| POWER OUTLET1 | 20A | Luggage Power Outlet |
| TCU2 | 10A | TCU (Transmission Control Unit), DCT Lever |
