Kia Sorento Hybrid 2022 Fuse Box Info

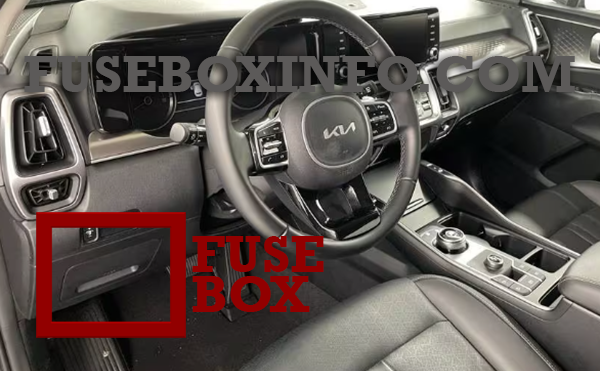

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

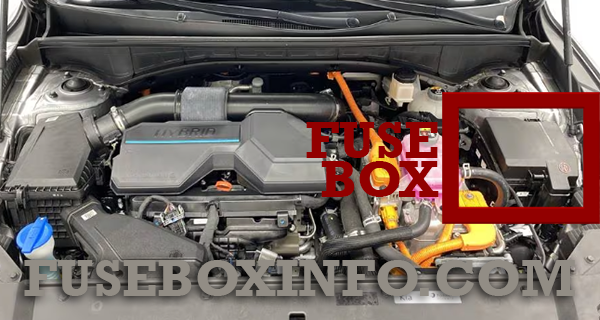

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| AMP | 25A | AMP (Amplifier) |
| P/SEAT (DRV) | 30A | Driver Power Seat Switch, IMS (Integrated memory system) Control Module, Driver Lumbar Support Switch |
| P/WINDOW (LH) |
25A | Driver Safety Power Window Module, Rear Power Window Switch Left Handle side/Rear Safety Power Window Module Left Handle side |
| P/SEAT (PASS) |
30A | Passenger Power Seat Switch, Passenger Relay Unit |
| S/HEATER (FRT) |
20A | 1st Air Ventilation Seat Control Module, 1st Seat Warmer Control Module |
| S/HEATER (REAR LH) |
15A | 2nd Seat Warmer Left Handle side Control Module |
| 2nd ROW SEAT FOLDING (RH) |
20A | 2nd Seat Right Handle side Folding Actuator |
| IG3 1 | 20A | ICM relay box (IG3 Relay) |
| P/WINDOW (RH) |
25A | Passenger Safety Power Window Module, Passenger Power Window Switch, Rear Power Window Switch Right Handle side/Rear Safety Power Window Module Right Handle side |
| TAILGATE OPEN |
15A | Tail Gate Relay |
| 2nd ROW SEAT FOLDING (LH) |
20A | 2nd Seat Warmer Left Handle side Folding Actuator |
| DOOR LOCK |
20A | Door Lock/Unlock Relay, Two Turn Unlock Relay, Data Link Connector, ICM Relay box (Fuel Lid Lock/Unlock Relay) |
| REAR A/C 2 | 10A | Rear Air Conditioner Control Module |
| MULTI MEDIA 1 | 25A | Audio, Audio/Video & Navigation Head Unit, Fuse - MULTI MEDIA2 |
| S/HEATER (REAR RH) |
15A | 2nd Seat Warmer Right Handle side Control Module |
| MEMORY | 10A | Power Tail Gate Unit, IMS (Integrated memory system) Control Module, Rear Air Conditioner Control Module, ROA (Rear Occupant Alert), Driver/Passenger Power Outside Mirror, Instrument Cluster, Front Air Conditioner Control Module, Front Air Conditioner Control Panel, Head-Up Display |
| START | 10A | Ignition Switch |
| E-SHIFTER | 7.5A | Electronic Shift Dial |
| USB CHARGER 1 | 10A | Luggage USB Charge Connector Left Handle side/Right Handle side |
| USB CHARGER 2 | 15A | Rear Console USB Charge Connector Right Handle side, Driver/Passenger Seat USB Charge Connector |
| MODULE 3 | 7.5A | IBU (Integrated Body Control Unit), ADAS Unit, Front Camera, Crash Pad Switch, Surround View Monitor Unit, Rear Corner Radar Unit Left Handle side/Right Handle side, AWD, ECU, Front Radar Unit, VESS (Virtual Engine Sound System) Unit, Front Console Switch, Front Seat Ventilation Switch Left Handle side/Right Handle side |
| AIR BAG 1 | 15A | SRS (Supplemental Restraint System) Control Module, Passenger Occupant Detection Sensor |
| WASHER | 15A | Multifunction Switch |
| MODULE 1 | 10A | AMP (Amplifier), Rear Seat Entertainment Left Handle side/Right Handle side, Audio, Audio/Video & Navigation Head Unit, IBU (Integrated Body Control Unit), Front USB Charge Connector Left Handle side/Right Handle side, ADAS Unit, Surround View Monitor Unit |
| MODULE 9 | 10A | Driver/Passenger Mood Lamp, ADAS Unit, Data Link Connector, Surround View Monitor Unit, Driver Door Area Unit, Key Solenoid, Rain Sensor, Crash Pad Switch, Driver/Passenger Smart Key Outside Handle, Mood Lamp Unit, Driver/Passenger Door Mood Lamp Unit, Electronic Refrigerant Reduced Pressure Valve |
| IBU 1 | 7.5A | IBU (Integrated Body Control Unit), E/R Junction Block (Battery C/Fan Relay) |
| MODULE 2 | 7.5A | Driver Door Area Unit, Overhead Console |
| REAR A/C 1 | 15A | Rear Air Conditioner Blower Motor, ICU Junction Block (Fuse - REAR A/C2) |
| A/BAG IND |
7.5A | Instrument Cluster, Overhead Console |
| MODULE 8 | 7.5A | ADAS Unit, 1st Air Ventilation Seat Control Module/1st Seat Warmer Control Module, 2nd Seat Warmer Left Handle side/Right Handle side Control Module, Rear Air Conditioner Control Module, AC Inverter, Rear Console AC Inverter Outlet |
| IBU 2 | 15A | IBU (Integrated Body Control Unit) |
| MODULE10 | 10A | Stop Lamp Switch |
| MODULE 5 | 10A | Overhead Console, AMP (Amplifier), Front Wireless Charger Unit |
| A/C | 7.5A | Front Air Conditioner Control Panel, Front Air Conditioner Control Module, E/R Junction Block (Blower Relay, PTC Heater 1/2 Relay |
| AIR BAG 2 | 10A | SRS (Supplemental Restraint System) Control Module |
| CLUSTER | 7.5A | Instrument Cluster, Head-Up Display |
| MODULE 4 | 10A | Audio, Audio/Video & Navigation Head Unit, Data Link Connector, Crash Pad Switch, Electro Chromic Mirror, IMS (Integrated memory system) Control Module, 1st Air Ventilation Seat Control Module/1st Seat Warmer Control Module, 2nd Seat Warmer Left Handle side/Right Handle side Control Module |
| MODULE 7 | 7.5A | IBU (Integrated Body Control Unit) |
| MULTI MEDIA 2 | 10A | Rear Seat Entertainment Left Handle side/Right Handle side |
| BRAKE SWITCH |
7.5A | Stop Lamp Switch, IBU (Integrated Body Control Unit) |
| MDPS | 7.5A | MDPS (Motor Driven Power Steering) Unit - MDPS (Motor Driven Power Steering) is same as EPS (Electric Power Steering) |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| COOLING FAN | 80A | Cooling Fan Motor |
| PTC HEATER1 | 50A | PTC (Positive Temperature Coefficient) Heater1 Relay |
| B+2 | 50A | ICU Junction Block (IPS) |
| PTC HEATER2 | 50A | PTC (Positive Temperature Coefficient) Heater2 Relay |
| CVVD1 | 50A | CVVD Actuator |
| INVERTER | 40A | AC Inverter |
| IEB1 | 40A | IEB Unit |
| MDPS1 | 100A | MDPS (Motor Driven Power Steering) Unit - MDPS (Motor Driven Power Steering) is same as EPS (Electric Power Steering) |
| B+6 | 60A | PCB Junction Block (Fuse - IG1, IG2) |
| IEB2 | 60A | IEB Unit |
| B+5 | 50A | ICU Junction Block (Fuse - 2nd ROW SEAT FOLDING (RH), P/WINDOW (LH), P/SEAT (DRV), P/SEAT(PASS), S/HEATER (REAR LH)) |
| REAR HEATED | 40A | Rear Heated Relay |
| POWER TAILGATE | 40A | Power Tail Gate Unit |
| SUNROOF | 40A | Sunroof Motor (Glass) |
| E-SHIFTER1 | 30A | SBW (Shift By Wire) Control Unit |
| IEB3 | 60A | IEB Unit |
| B+3 | 50A | ICU Junction Block (IPS) |
| OPCU | 20A | OPU |
| HPCU1 | 10A | HPCU (Hybrid Power Control Unit) |
| FUEL PUMP | 20A | Fuel Pump Relay |
| CHILD LOCK | 15A | PCB Junction Block (Child Lock/Unlock Relay) |
| BLOWER | 50A | Blower Relay |
| B+4 | 50A | ICU Junction Block (Fuse - AMP, OBC, IG3 1, S/HEATER (FRT), P/WINDOW (RH), 2nd ROW SEAT FOLDING (LH)) |
| TRAILER | 30A | Trailer Module |
| B+1 | 40A | ICU Junction Block (Fuse - BRAKE SWITCH, IBU2, S/HEATER (REAR RH), Charger Lock, AIR BAG2, MODULE9, START, DOOR LOCK, TAILGATE OPEN, Long Term Load Latch Relay) |
| BATTERY MANAGEMENT | 10A | Battery System Assembly |
| 4WD | 20A | 4WD (4 Wheel Drive) ECU |
| TCU1 | 15A | TCM (Transmission Control Module) |
| AMS | 10A | Battery Sensor |
| E-SHITER2 | 10A | SBW (Shift By Wire) Control Unit, Electronic Shift Dial |
| EWP1 | 10A | Electronic Water Pump (Engine) |
| HEATED MIRROR | 10A | Front Air Conditioner Control Panel, Driver/Passenger Power Outside Mirror |
| A/C1 | 10A | Not Used |
| IG2 | 40A | IG2 Relay |
| IG1 | 40A | IG1 Relay, ACC Relay |
| WIPER FRT2 | 7.5A | IBU (Integrated Body Control Unit) |
| SENSOR6 | 20A | Oxygen Sensor (Down) |
| SENSOR1 | 20A | Ignition Coil #1~#4 |
| SENSOR8 | 10A | OPU |
| ECU2 | 10A | ECM (Engine Control Module), CVVD Actuator |
| SENSOR5 | 10A | E/R Junction Block (Fuel Pump Relay) |
| HPCU2 | 10A | HPCU (Hybrid Power Control Unit) |
| EWP2 | 10A | Electronic Water Pump, Electronic Water Pump (HEV) |
| SENSOR9 | 20A | Not Used |
| SENSOR3 | 20A | ECM (Engine Control Module) |
| SENSOR2 | 15A | Active Purge Pump |
| WIPER FRT1 | 30A | Front Wiper Motor, Front Wiper (Low) Relay |
| WIPER RR | 15A | Rear Wiper Relay, Rear Wiper Motor |
| HORN | 15A | Horn Relay |
| B/ALARM HORN | 15A | Burglar Alarm Horn Relay |
| E-SHIFTER3 | 7.5A | SBW (Shift By Wire) Control Unit |
| TCU2 | 10A | TCM (Transmission Control Module) |
| SENSOR4 | 10A | Purge Control Solenoid Valve, Oil Control Valve #1/#2 (Intake/Exhaust), Oil Pump Solenoid Valve, RCV (Recirculation Valve Control) Control Solenoid Valve, Cooling Fan Motor, ELCM (EVAP. Leak Check Module) |
| SENSOR7 | 15A | Oxygen Sensor (Up) |
| ECU1 | 15A | ECM (Engine Control Module) |
| ECU3 | 20A | ECM (Engine Control Module) |
| ABS4 | 7.5A | IEB Unit |
| POWER OUTLET2 |
20A | Rear Console Power Outlet |
| POWER OUTLET1 | 20A | Luggage Power Outlet |
