Jeep Gladiator 2025 Fuse Box Info

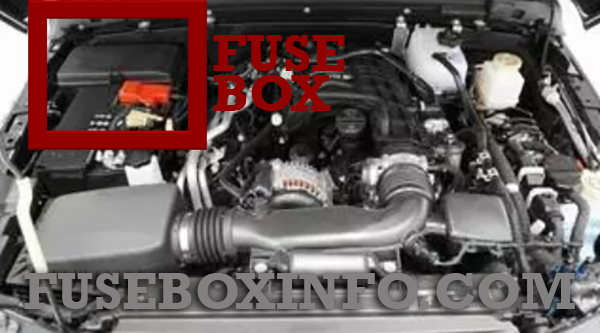

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 01 | - | Spare* |
| 02 | 40A | Starter |
| 03 | 5A | Intelligent Battery Sensor (IBS) |
| 04 | 20A | Fuel Pump MTR/FPCM |
| 05 | 5A | Security Gateway |
| 06 | - | Spare* |
| 07 | - | Spare* |
| 08 | 15A | Trans Control Module TCM-8HP CYGNUS |
| 09 | - | Spare* |
| 10 | 15A | Electric Steering Column Lock (ESCL) |
| 11 | 10A | UCI Port (USB & AUX) |
| 12 | 25A | HIFI Amplifier |
| 13 | - | Spare* |
| 14 | - | Spare* |
| 15 | 15A | Instrument Panel Cluster (IPC)/Switch Bank-Heavy Duty Electrical Pkg (SWITCH BANK-HD ELEC) |
| 16 | - | Spare* |
| 17 | - | Spare* |
| 18 | 10A | Air Conditioning Clutch (AC CLUTCH) |
| 19 | - | Spare* |
| 20 | 30A | Central Body Controller (CBC) 1-INTERIOR LIGHTS |
| 21 | - | Spare* |
| 22 | 10A | Engine Control Module (ECM)/Powertrain Control Module (PCM) |
| 23 | 10A | Engine Control Module (ECM) |
| 24 | 30A | Passenger Power Seat |
| 25 | 10A | Module Shift By Wire (MOD_SBW) |
| 26 | 40A | Central Body Controller (CBC) 2-EXTERIOR LIGHTS #1 |
| 27 | 30A | Front Wipers |
| 28 | 40A | Central Body Controller (CBC) 3-POWER LOCKS |
| 29 | 40A | Central Body Controller (CBC) 4-EXTERIOR LIGHTS #2 |
| 30 | - | Spare* |
| 31 | 10A | DIAGNOSTIC PORT |
| 32 | 10A | Heating Ventilation Air Conditioning Mod (HVAC CTRL MOD)/Steering Column Lock (SCL)/Occupant Classification Module (OCM)/Driver Presence Detection Module (DPDM) |
| 33 | 10A | ParkTronics System (PTS)/Infrared Camera Module (IRCM)/Airbag Disable Lamps (AIRBAG DISABLE LMPS) |
| 34 | 10A | Electronic Stability Control (ESC)/Electric Hydraulic Power Steering (EHPS)/Smart Bar Control Module (SBCM) WAKE UP |
| 35 | 30A | BRAKE VAC PMP* |
| 36 | 30A | Trailer Tow Elec Brk Mod* |
| 37 | 30A | TRAILER TOW CONN 7W* |
| 38 | 20A | Engine Control Module ECM |
| 39 | - | Spare* |
| 40 | 15A | Drivetrain Control Module (DTCM)/Axle Lock (AXLE LOC) FT_RR |
| 41 | 15A | Instrument Cluster (IC)/Security GateWay (SGW) WAKE UP |
| 42 | 10A | Power Control Relay Control Feed (Electric Stop/Start)* |
| 43 | - | Spare* |
| 44 | 10A | Infrared Camera (IRCAM) HEATERS |
| 45 | - | Spare* |
| 46 | 10A | AUTO HDLP LVL MOD/LVL MTR/HDLP SW |
| 47 | - | Spare* |
| 48 | - | Spare* |
| 49 | 10A | Occupant Restraint Controller (ORC) |
| 50 | 10A | HD ACC* |
| 51 | 10A | Humidity Light Rain Sensor (HLRS)/Inverter 400W Wake Up/USB/InSide RearView Mirror (ISRVM)/Compass Module (CSGM)/DTV |
| 52 | 20A | Cigar Lighter |
| 53 | 10A | Wireless Speaker* |
| 54 | - | Spare* |
| 55 | 10A | Central Vision Processing Module (CVPM)* |
| 56 | 10A | In-Car Temp Sensor |
| 57 | 20A | Frt Drvr Htd Seat |
| 58 | 20A | Frt Pass Htd Seat |
| 59 | 30A | Driver Power Seat |
| 60 | 15A | Comfort Steering Wheel Module (CSWM) (HTD STR WHEEL) |
| 61 | 10A | Left Blind Spot Sensor (LBSS)/Right Blind Spot Sensor (RBSS) |
| 62 | - | Spare* |
| 63 | - | Spare |
| 64 | - | Spare* |
| 65 | 50A | Power Inverter 400W* |
| 66 | 40A | HVAC BLOWER MTR FRT |
| 67 | - | Spare* |
| 68 | - | Spare* |
| 69 | 10A | KIN (Keyless Ignition Node) / Radio Frequency Hub (RFHub) |
| 70 | 25A | INJ/IGN COIL |
| 71 | - | Spare* |
| 72 | 10A | HD ELEC ACC PKG* |
| 73 | - | Spare* |
| 74 | - | Spare* |
| 75 | - | Spare* |
| 76 | 20A | ECM |
| 77 | 10A | Heated Mirrors |
| 78 | - | Spare* |
| 79 | 20A | SMART BAR CTRL MOD |
| 80 | 15A | Solenoid 1 2 Block Shift |
| 81 | 30A | REAR DEFROSTER (EBL) |
| 82 | - | Spare* |
| 83 | - | Spare* |
| 84 | - | Spare* |
| 85 | - | Spare* |
| 86 | - | Spare* |
| 87 | - | Spare* |
| 88 | - | Spare* |
| 89 | 10A | Steering Column Control Module (SCCM)/Cruise Control (CRUISE CTL)/Digital TV (DTV)/Airbag Disable Lamp |
| 90 | 20A | TRAILER TOW PARK LMP* |
| 91 | 20A | Horn |
| 92 | 40A | HD ACCY #2* |
| 93 | 40A | HD ACCY #1* |
| 94 | 10A | Dual USB Port |
| 95 | - | Spare* |
| 96 | 10A | PWR MIRROR SW |
| 97 | 20A | RADIO/TBM |
| 98 | 10A | SW BANK-HD ELEC/OFF ROAD |
| 99 | - | Spare* |
| 100 | 30A | ESC-ECU & VALVES |
| 101 | 30A | Drivetrain Control Module (DTCM) |
| 102 | 15A | TBM2/Mod_DCSD |
| 103 | 15A | HD ACCY #3* |
| 104 | 15A | Lumbar Switch (Driver/Passenger) |
| 105 | 10A | Integrated Center Stack (ICS)/Heat Ventilation Air Conditioning (HVAC) |
| 106 | 50A | Electronic Speed Control (ESC)/PUMP MTR |
| 107 | 20A | TRAILER TOW STOP/TURN LT* |
| 108 | 15A | HD ACCY #4* |
| 109 | 20A | TRAILER TOW STOP/TURN RT* |
| 110 | 30A | Power Inverter 150W* |
| 111 | 20A | TRAILER TOW BACKUP* |
* If Equipped
