Citroën DS4 2018 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel, behind the cover.

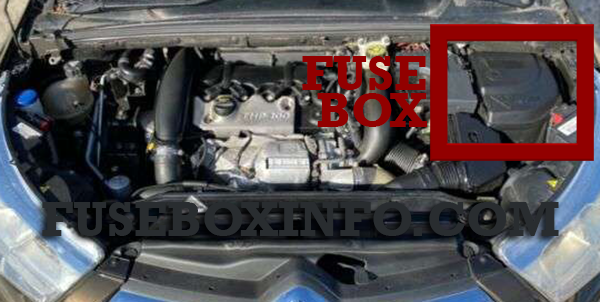

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box::
| Fuse/Relay N° | Rating | Functions |
| Fuse box 1 | ||
| 8 | 3A | Alarm siren, alarm control unit |
| 13 | 10A | Cigarette lighter / Front 12 V socket |
| 14 | 10A | 12 V socket in boot |
| 16 | 3A | Rear map reading lamps, glove box illumination |
| 17 | 3A | Sun visor illumination, front map reading lamps |
| 28 | 15A | Audio system, audio system (after-market) |
| 30 | 20A | Rear wiper |
| 32 | 10A | Hi-Fi amplifier |
| Fuse box 2 | ||
| 36 | 15A | Rear 12 V socket |
| 37 | - | Not used |
| 38 | - | Not used |
| 39 | - | Not used |
| 40 | 25A | 230 V/50 Hz socket (depending on country of sale) |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 19 | 30A | Windscreen wipers slow/fast speed |
| 20 | 15A | Front and rear screenwash pump |
| 21 | 20A | Headlamp wash pump |
| 22 | 15A | Horn |
| 23 | 15A | Right-hand main beam headlamp |
| 24 | 15A | Left-hand main beam headlamp |
| 27 | 5A | Left-hand dipped headlamp |
| 28 | 5A | Right-hand dipped headlamp |
